OMRON R88D-WT02H | 200W 200V High-Response AC Servo Amplifier
Dynamic Product Introduction
Maintenance managers and field engineers running high-precision assembly equipment know how costly motion axis downtime can be. When a primary servo drive suffers main circuit over-voltage, power stage degradation, or encoder interface loss, replacing the amplifier with an exact unit is essential for restoring calibrated axis parameters without altering motor feedback wiring or re-writing PLC pulse programs.
The OMRON R88D-WT02H is engineered to provide precise motion response within the proven OMNUC W-Series product line. Operating on single-phase 200 V AC line input, this 200W amplifier powers compatible OMRON R88M-W series servo motors. Featuring high-frequency control loops, dynamic auto-tuning capability, multi-step position tracking, and an expansion option slot for network cards (such as DeviceNet or MECHATROLINK), the R88D-WT02H delivers the precise torque, speed, and positioning required for semiconductor handlers, packaging machinery, and robotic gantry systems.

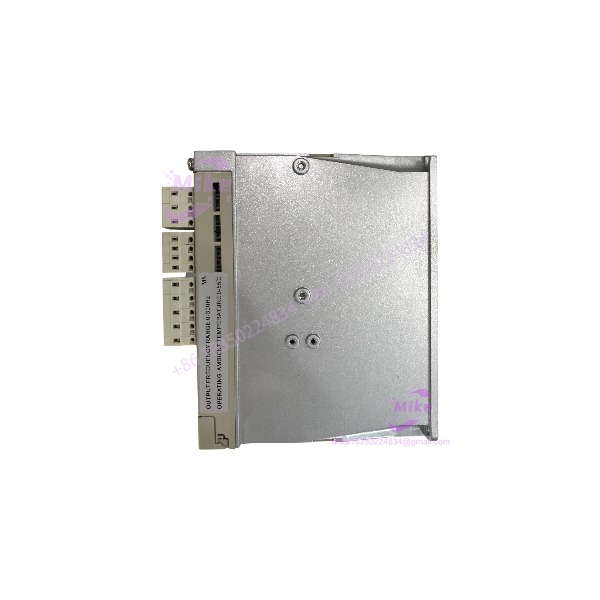

R88D-WT02H
Key Technical Specifications
- Nominal Output Power: 200 W
- Main Circuit Power Supply: Single-phase 200 to 230 V AC (50/60 Hz, 1.8 A input)
- Control Circuit Power Supply: Single-phase 200 to 230 V AC (50/60 Hz)
- Continuous Output Current: 1.6 Arms
- Max Output Current: 4.8 Arms (300% peak current capacity)
- Supported Control Modes: Position control (pulse train inputs), Speed control (analog ±10 V), Torque control (analog ±10 V)
- Feedback Interface: Absolute / incremental high-resolution encoder input (up to 17-bit resolution supported)
- Option Slot: Accepts communications unit options (e.g., R88A-NCW152-DRT DeviceNet, MECHATROLINK-II units)
- Diagnostic Display: Built-in 5-digit LED display with operation keys for parameter editing and alarm display
- Cooling Method: Natural convection / internal heatsink
Global Sourcing & Live-Test SOP (Transparency Core)
Sourcing surplus or legacy servo drives requires strict power-stage and feedback validation to ensure dynamic response under full rated current loads.
Inbound Verification & Traceability
- Paperwork Audit: Validation of serial numbers and hardware revision codes against OEM archives to verify board revisions and power stage authenticity.
- Physical Inspection: Comprehensive examination of main power terminal block screws, control signal connectors (CN1/CN2), internal capacitor health, and option slot contact gold plating.
Live Bench Simulation & Diagnostics
- Power Rail & Pre-Charge Test: Powered up using 200 V AC main and control power to verify soft-charge relay engagement, DC bus voltage rail stability (approx. 280–320 V DC), and zero initial alarm codes.
- Closed-Loop Servo Run: Connected to a 200W R88M-W series servo motor with encoder feedback to perform high-speed forward/reverse motion runs across position, speed, and torque control modes.
- Dynamic Load & Peak Current Check: Executing rapid trapezoidal velocity profiles while monitoring motor torque current draw up to 300% peak limits using a digital storage oscilloscope.
- 24-Hour Thermal Stress Run: Module undergoes a continuous 24-hour thermal chamber test under cyclic load conditions to verify power module heat dissipation and fanless thermal performance.
Final Prep
- Parameter Reset: Drive parameters are restored to default factory values or customer-specified parameter sets.
- ESD Safe Packaging: Sealed in anti-static shielding bags with desiccant packs before double-boxed shipping.
The Field Engineer’s Pitfall Guide
- ❗ Inrush Current & External Regenerative Resistors: High duty-cycle acceleration/deceleration cycles with high inertia loads can exceed the absorption capacity of the drive’s internal DC bus capacitors. If an “Overvoltage Alarm” (A.10) occurs, an appropriately sized external regenerative resistor must be connected across terminals B1 and B2 with internal jumper modifications.
- ❗ Pulse Train Interface Signal Polarity: The CN1 control connector supports line-driver (5 V) or open-collector (24 V) pulse input signals. Wiring a 24 V pulse line directly into the 5 V differential line-receiver pins will immediately blow internal optocouplers. Always verify drive interface wiring diagrams before applying power.
- ❗ Control Power vs. Main Power Wiring Isolation: Main circuit power (L1, L2) and control circuit power (L1C, L2C) must both be energized. Powering only main power will prevent drive initialization, while powering only control power allows parameter setup but will generate a main circuit low-voltage alarm (A.41) upon drive enable.
Intent-Driven FAQ
Will swapping out a damaged R88D-WT02H require re-entering parameters?
Yes. Servo parameters (such as pulse counts, electronic gear ratios, speed gain, and I/O assignments) are stored in onboard EEPROM. You can backup parameters from the old drive using an OMRON handheld console or CX-Drive software and transfer them directly into the replacement drive.
Can the R88D-WT02H drive 100W or 400W motors?
No. The R88D-WT02H is rated specifically for 200W motor frame configurations. Pairing it with mismatched motor wattages will cause improper current loop tuning, leading to motor overheating, vibration, or encoder alarm faults.
What causes an Alarm A.10 (Overvoltage) on startup or stop?
Alarm A.10 indicates that the DC bus voltage exceeded maximum safety thresholds. This is usually caused by excessive regenerative energy during fast decelerations or an open/damaged internal regenerative discharge resistor.
Does the R88D-WT02H support fieldbus networks like DeviceNet or MECHATROLINK?
Yes, via optional expansion cards. Installing a fieldbus option card (such as the R88A-NCW152-DRT for DeviceNet) into the front option slot allows host controllers to manage motion profiles over a fieldbus network.
What warranty coverage is provided on replacement drives?
All verified OMRON R88D-WT02H drives include a standard 12-month full-replacement warranty covering main power stage transistors, control board logic, and encoder feedback circuits.
If you need help downloading parameters via CX-Drive, configuring pulse train inputs, or sizing an external braking resistor for your R88D-WT02H setup, let me know your system details and I can assist with the installation.
