OKUMA FCP-DN A911-2834 | CNC Control Board
Dynamic Product Introduction
The OKUMA FCP-DN A911-2834 is the kind of CNC control board that creates a very different procurement problem from buying a current-generation PLC module. It is a board-level FCP-DN component, and the useful question is not simply “Does the connector fit?” The useful question is whether the board revision matches the CNC control architecture, machine configuration, and the board being replaced.
Available records identify A911-2834 specifically as an FCP-DN board, while an Okuma-related import record identifies A911-2834-01-010 as an FCP-DN D2S1 printed circuit board. That makes the full board marking important during replacement sourcing.
This is also why I would avoid treating FCP-DN boards as interchangeable merely because the family name is the same. Other FCP-DN boards appear under different A911 numbers and different E4809-series identifiers. For example, A911-2833 and A911-2836 are separately identified FCP-DN boards. Those neighboring numbers are useful for cross-reference research, but they should not be treated as automatic substitutes for A911-2834.

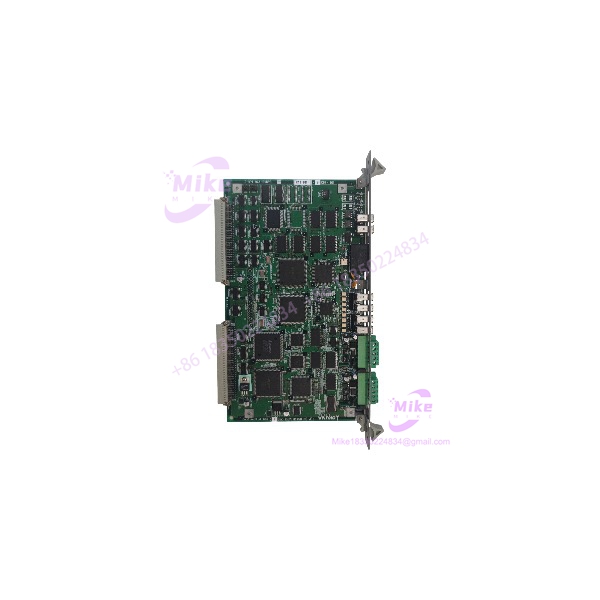

FCP-DN A911-2834
Key Technical Specifications
- Manufacturer: OKUMA
- Model: FCP-DN
- Board Number: A911-2834
- Detailed Board Identification: appears in available import documentation as an FCP-DN D2S1 printed circuit board.
- Component Type: CNC control printed circuit board
- Control Family: FCP-DN
- Application: OKUMA CNC machine-control systems
- Installation: Board-level replacement within a compatible CNC control assembly
- Architecture: Proprietary OKUMA CNC hardware
- Configuration: Machine/control dependent
- Firmware/Software: Must be matched to the applicable OKUMA CNC control configuration
- Replacement Strategy: Match the complete board number and revision before considering cross-reference options
- Procurement Class: Legacy CNC control spare
Do not infer electrical ratings from the designation alone. I did not find sufficiently authoritative documentation establishing a standalone supply voltage, current draw, communication protocol list, or channel count specific for . Those values should therefore be taken from the machine-specific maintenance documentation rather than copied from unrelated FCP-DN listings.
Global Sourcing & Live-Test SOP
Inbound Verification
Treat as a traceability-sensitive CNC board.
On receipt, record:
- Complete board number
- All suffixes and revision markings
- PCB assembly number
- Serial number, if present
- Manufacturer markings
- Connector condition
- Edge contacts and backplane interfaces
- Heat sinks and mechanically mounted components
- Evidence of oxidation, contamination, rework, or component replacement
The supplied listing currently describes the unit as new/open-box. That is useful for procurement, but it should not be confused with a documented CNC-system functional test.
Live Simulation
The preferred test environment is an authentic compatible OKUMA CNC control system, using the correct FCP-DN hardware architecture.
A meaningful acceptance test should verify, where supported by the applicable machine configuration:
- Board recognition during CNC initialization
- Normal control-system startup
- Expected diagnostic status
- Communication with the surrounding CNC hardware
- Correct machine-control configuration
- Absence of board-related alarms
- Stable operation after thermal warm-up
Do not power a bare board on an improvised bench and call that a functional CNC test. A board can pass a basic power check while still failing initialization, configuration, or machine-control communication.
Diagnostics
Record all startup diagnostics before declaring the replacement acceptable.
For a board removed from a machine, compare:
- Original board identification
- Replacement board identification
- Hardware revision
- CNC software/control revision
- Alarm history
- Parameter/configuration baseline
If the board is being used as a migration or emergency spare, preserve the original machine configuration before removing the failed hardware.
Final Preparation
Before shipment:
- Photograph the complete board identification.
- Record all visible revision and assembly numbers.
- Photograph connectors and component-side condition.
- Document whether functional testing was completed.
- Package in ESD-safe material.
- Use mechanical protection around connectors and exposed PCB areas.
- Keep the board’s traceability documentation with the shipment.
Field Engineer’s Pitfall Guide
❗ Do not substitute by FCP-DN family name alone
There are multiple FCP-DN board numbers in the field. Available records show distinc833, , and -2836 boards. A neighboring number may look physically similar while serving a different position or revision within the CNC architecture.
Field rule: Match the complete board number first. Cross-reference only after the machine’s control documentation confirms compatibility.
❗ Capture the complete suffix before ordering
is not necessarily sufficient identification for a maintenance purchase. The available record identifying demonstrates why the complete PCB/assembly marking should be captured from the actual board.
A procurement request that simply says “OKUMA FCP-DN board” is asking the supplier to guess. That is unacceptable for a CNC control spare.
❗ Do not assume a new/open-box board is configuration-ready
The supplied unit is listed as new/open-box, but that condition does not establish compatibility with a particular OKUMA machine or prove that the board has been tested in the target CNC control.
Field lesson: When an older OKUMA machine is down, the temptation is to install the replacement immediately because the PCB looks identical. Photograph the original board, compare every identifier, preserve the control configuration, and only then proceed.
Intent-Driven FAQ
What is the OKUMP-DN ?
It is an OKUMA FCP-DN CNC control board, identified by board number . Available documentation also idents an -01-010 FCP-DN D2S1 printed circuit board.
Is a complete OKUMA CNC controller?
No. It should be treated as a board-level CNC control component, not as a complete standalone CNC controller.
Is interchangeable wA911-2833A911-2836?
Do not assume that. Other numbers are also identified as FCP-DN boards, but that does not establish electrical, firmware, connector, or machine-level interchangeability.
What information should I provide when sourcing a replacement?
At minimum, provide:
- FCP-DN
- Complete suffix/revision from the PCB
- CNC control model
- Machine model
- Existing board photographs
- Any associated E4809-series number
- Current control/software revision, if available
That information sharply reduces the risk of receiving a visually similar but incompatible board.
Does require firmware or configuration matching?
Treat it as configuration-dependent. A replacement board should be validated against the target OKUMA CNC control’s software, parameters, and hardware architecture. Do not assume that installing the PCB automatically reproduces the original machine configuration.
Is the lied unit new?
The supplied listing currently describes the unit as New – Open box. That means the sales condition is open-box; it is not, by itself, proof of a documented machine-level functional test.
Is FCP-DN obsolete?
The FCP-DN hardware family is clearly a legacy CNC control technology in the surplus/repair market. Current availability is therefore more likely to depend on surplus inventory, repaired boards, and controlled spare holdings than normal new-production distribution. Related FCP-DN board records are explicitly described by some industrial suppliers as discontinued.
