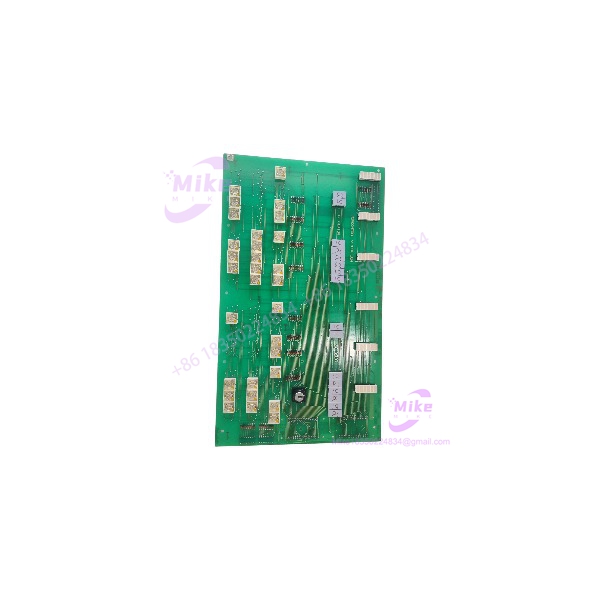

Norcontrol NA-1110 HA 220256 B/B | DGU Panel Card
Dynamic Product Introduction
The Norcontrol NA-1110 HA 220256 B/B is a legacy marine automation panel card associated with Norcontrol’s NA-1110 DGU system. Current marine automation inventory records identify NA-1110 as a DGU panel card/system designation and HA 220256 B/B as its associated hardware number.
This is old vessel-control hardware, so procurement should be handled differently from buying a current PLC module. The board is part of a larger engine control and alarm architecture; connector position, revision, installed configuration, and the surrounding DGU hardware all matter. A visually identical PCB is not automatically a safe substitute.
The B/B revision is particularly worth recording. Norcontrol systems contain multiple generations of cards with similar HA numbering, and marine maintenance suppliers continue to identify individual boards by both the NA-series system number and the HA hardware number. For comparison, marine automation inventories list NA-1111.2 as HA 220585C/C and NA-1112.1 as HA 220782A/A, illustrating why the complete identification should be preserved rather than shortened to “220256.”
HA 220256 B/B
Key Technical Specifications
- System: Norcontrol NA-1110
- Hardware Number: HA 220256 B/B
- Manufacturer: Norcontrol Automation
- Product Category: DGU panel card
- Application: Marine engine control and alarm system
- Architecture: Legacy distributed marine automation hardware
- Board Revision: B/B
- Reported Weight: Approximately 440 g
- Installation: Vessel control-panel / DGU equipment; exact rack or panel position must be verified from the vessel documentation
- Communication Interfaces: Not safely established from the available public records
- I/O Configuration: Not safely established from the available public records
- Power Requirements: Not safely established from the available public records
- Firmware: Verify from the actual installed board/system
- Lifecycle: Legacy/discontinued marine automation hardware
The available records do not provide enough authoritative information to publish channel counts, supply voltage, connector pinout, processor specifications, or communication protocols. Those values should be obtained from the vessel’s Norcontrol documentation or the actual board rather than inferred from the HA number.
