NEMATRON EPC1200T-N270-2GB-40SS-XP | Atom N270 2GB
Product Introduction
A legacy HMI can be the smallest component in a control cabinet and still be the part that stops production. The NEMATRON EPC1200T-N270-2GB-40SS-XP was built for precisely this industrial computing role: a panel-mounted operator interface using an Intel Atom N270 processor, 2 GB memory, and 40 GB solid-state storage. Available technical records identify it as an ePC Panel PC and operator interface.
The platform is especially relevant when an older machine or automation cell still depends on its original Windows-based HMI environment. Replacing that terminal with a modern PC is not automatically a drop-in exercise — legacy application compatibility, display resolution, storage image, communication drivers, and machine-specific software can all become commissioning issues.
For brownfield maintenance, an exact EPC1200T-N270-2GB-40SS-XP can therefore be more valuable than a theoretically faster computer that requires software migration and control-system requalification.

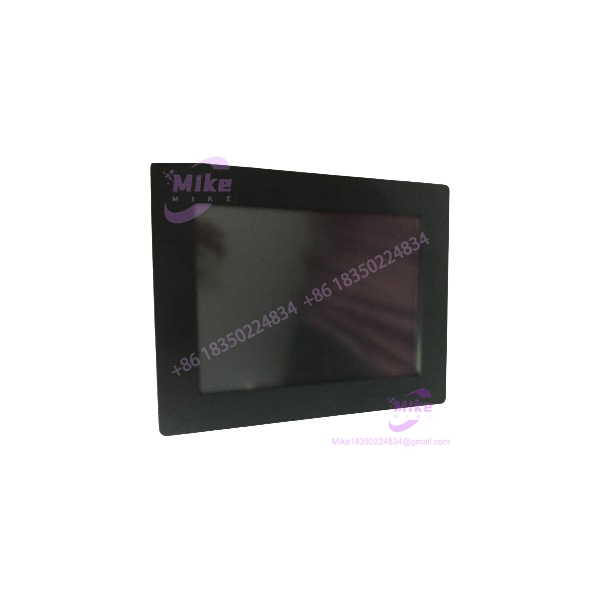

EPC1200T-N270-2GB-40SS-XP
Key Technical Specifications
- Manufacturer: NEMATRON
- Model: EPC1200T-N270-2GB-40SS-XP
- Series: ePC1200T
- Product Category: Industrial Panel PC / Operator Interface
- Processor: Intel Atom N270
- CPU Frequency: 1.60 GHz
- Memory: 2 GB
- Storage: 40 GB solid-state disk
- Operating System: Windows XP
- Display: 12-inch industrial TFT panel configuration
- Display Resolution: 800 × 600 SVGA reported for the EPC1200T platform
- Mounting: Panel mount
- Power Input: 100–240 VAC, 50/60 Hz, 1.0 A reported for this exact model
- Cooling: Fanless design
- Front Protection: IP65 reported for the EPC1200T platform
- Rear Protection: IP20 reported
- Status: Discontinued / legacy
The exact model is documented as an operator interface with 100–240 VAC input and a 50/60 Hz supply. Technical descriptions of the EPC1200T configuration identify the N270 1.60 GHz CPU, 2 GB memory, 40 GB solid-state storage, 12-inch display, and 800 × 600 resolution.
Procurement warning: Do not assume every EPC1200T variant has the same operating system image, touchscreen configuration, power arrangement, or I/O population. Variants with suffixes such as DC-WW exist and should not be treated as identical to the standard model.
Application Scenarios & Pain Points
Legacy HMI Replacement
The strongest use case is replacing a failed operator terminal in an existing machine. If the application was developed around Windows XP and the original Nematron hardware, an exact hardware replacement can significantly reduce migration work.
CNC Machine Operator Stations
The ePC1200T platform is suited to industrial operator-interface duties where the HMI provides visualization, parameter entry, alarms, and machine-status information.
Production-Line Visualization
Older production lines frequently rely on dedicated panel PCs for process monitoring and operator control. Maintaining the original platform can avoid changing validated screen layouts and legacy communication drivers.
Brownfield Automation Maintenance
A faster modern PC does not automatically mean a better replacement. If the existing application depends on an old operating-system environment, specific display timing, storage-image behavior, or legacy interface drivers, hardware continuity can reduce commissioning risk.
Spare-Parts Strategy
For facilities operating multiple machines with the same HMI architecture, keeping a tested spare can reduce mean time to repair and avoid an emergency software migration during production downtime.
QA & Live Testing SOP
For this type of legacy industrial PC, I would test the complete computing platform, not merely confirm that the screen illuminates.
1. Identity Verification
- Confirm EPC1200T-N270-2GB-40SS-XP on the nameplate.
- Record serial number and hardware revision.
- Verify the unit is not a DC-input or Wonderware-configured variant.
- Photograph the front, rear, labels, connectors, and mounting hardware.
2. Physical Inspection
- Inspect the LCD/touchscreen surface for damage.
- Check the bezel and panel gasket.
- Inspect rear connectors and mounting studs.
- Look for corrosion, cracked housings, or evidence of overheating.
3. Power Test
- Apply the correct AC input through controlled test equipment.
- Verify startup behavior.
- Check for abnormal current draw.
- Confirm stable operation after warm-up.
4. Display and Touch Test
- Test the complete display across the usable screen area.
- Check for dead pixels, abnormal backlight behavior, flickering, or image instability.
- If equipped with touchscreen functionality, test multiple locations across the touch surface.
5. Computing Test
- Verify the Intel Atom N270 system boots correctly.
- Confirm available RAM and storage.
- Check the installed Windows XP environment.
- Verify storage health where suitable diagnostic tools are available.
6. Interface Test
- Test available communication and peripheral ports against the customer’s original configuration.
- Verify keyboard/mouse and external-device operation where applicable.
- Do not assume that a working operating system means every physical interface is functional.
7. Final QA
- Record boot results, display condition, touchscreen response, storage condition, and interface-test results.
- Package using ESD precautions and impact protection.
Field Engineer’s Pitfall Guide
❗ Do not confuse the standard AC model with the DC-WW variant. Similar Nematron part numbers exist with additional suffixes. Verify the entire part number before approving a replacement.
❗ Do not treat Windows XP compatibility as optional. The operating-system environment can be part of the machine’s functional architecture. Replacing the hardware with a modern Windows platform may require application migration, driver changes, licensing work, and communication testing.
❗ Do not assume the 40 GB storage device contains the customer’s application image. A replacement PC can have the correct hardware while still requiring restoration of the machine-specific HMI software and configuration.
❗ Check the display resolution before substitution. Legacy HMI applications may depend on fixed screen geometry. A different native resolution can cause cropped screens, misplaced controls, or unusable alarm displays.
❗ Verify the input power. The exact model is documented with 100–240 VAC input, while other ePC1200T variants may use different configurations. Never infer the power arrangement from the family name alone.
Intent-Driven FAQ
What is the NEMATRON EPC1200T–2GB-40SS-XP?
It is a NEMATRON ePC1200T industrial Panel PC/operator interface using an Intel Atom 1.60 GHz processor, 2 GB RAM, 40 GB solid-state storage, and a Windows XP environment.
Is an HMI?
Yes. It is appropriately classified as an industrial HMI/operator interface or Panel PC, rather than a conventional PLC CPU.
Is discontinued?
Available product records identify the exact model as discontinued by the manufacturer. That makes it a legacy replacement part and increases the importance of condition verification and functional testing.
t processor does use?
The specified platform uses an Intel Atom at 1.60 GHz.
How much RAM and storage does it have?
The model designation corresponds to 2 GB RAM and 40 GB solid-state storage.
What operating system does it use?
The standard model is associated with Windows XP. This is particularly important when replacing an HMI running legacy application software because operating-system compatibility can affect drivers, runtime software, and communication interfaces.
Wh ly does the use?
The exact model is listed with 100–240 VAC, 50/60 Hz, 1.0 A input. Verify the nameplate before energizing any replacement because related ePC variants use different configurations.
What should I verify before purchasing?
Match the , then verify the display/touch configuration, power input, storage image, operating-system environment, connector arrangement, and hardware revision. For a production-critical machine, request an actual functional test rather than relying on a power-on statement.
