NABTESCO BTC-304-51A | Motion Controller Unit Spec Sheet

Description

NABTESCO BTC-304-51A | Motion Controller Unit Spec Sheet

Product Introduction

When an automated assembly line slips out of synchronization, the resulting mechanical bind wrecks gearboxes before safety trips can even trigger. The BTC-304-51A is not a generic signal converter; it is a heavy-duty motion controller engineered to maintain tight positional tolerance under extreme inertial loads.

Integrating directly into the control cabinet’s main bus, the module processes encoder feedback at high frequencies—keeping tracking error beneath the tightest industrial thresholds (usually under 0.05 degrees of rotation). It demands clean 24V power and proper shielding, but once locked into the rack, it delivers the deterministic execution speed required for high-speed manufacturing cells.

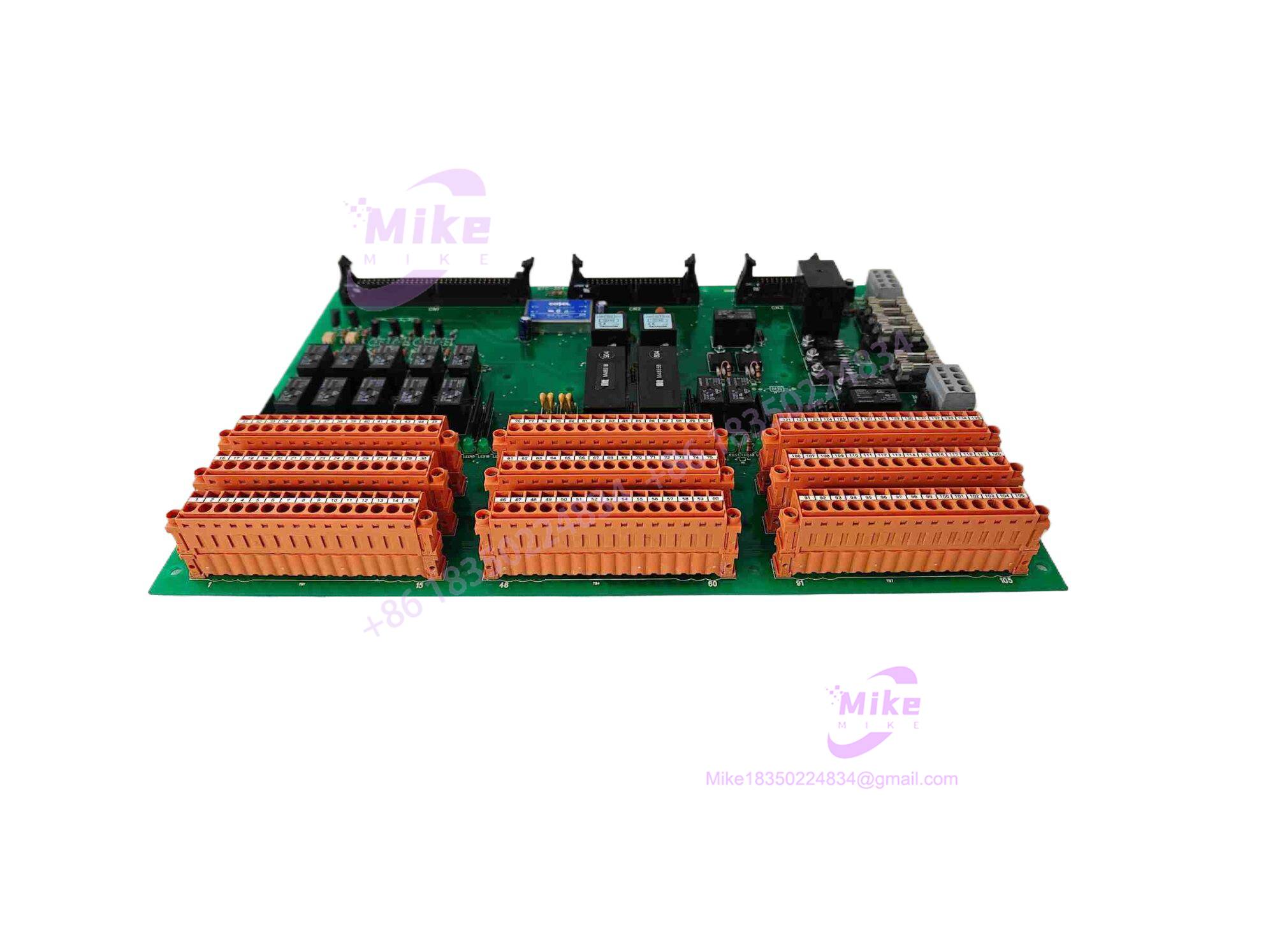

BTC-304-51A

Key Technical Specifications

Application Scenarios & Pain Points

• High-Vibration Packaging Lines: Constant mechanical hammering used to cause intermittent communication drops on older control cards. Swapping to the BTC-304-51A eliminated signal jitter thanks to its heavily isolated internal transceiver circuitry.
• Multi-Axis Robotic Arms: Without consistent loop updates, payload positioning drifts over a 24-hour production run. This BTC-304-51A module holds steady thermal stability, keeping drift negligible even during multi-shift operations.
• Precision Rotary Indexing: A stamping plant saved weeks of downtime by using the BTC-304-51A to replace a failed legacy board without altering existing cabinet wiring or terminal layouts.

QA & Live Testing SOP (Trust Signal)

We treat surplus hardware like life-support equipment. Every incoming BTC-304-51A goes through a rigorous bench test before it ever touches a shelf:

1. Visual & Optical Inspection: We check factory seals, verify component date codes, and examine solder joints under a microscope for micro-cracks or previous repair attempts.
2. Powered Bench Verification: The module is mounted to a live test rack, supplied with nominal 24VDC, and subjected to a simulated communication handshake test to verify handshake integrity.
3. Thermal Stress & ESD Protection: Units undergo a 4-hour burn-in cycle under load, followed by packaging in dissipative antistatic bags. When you unbox the , it is ready to commission immediately.

Field Engineer’s Pitfall Guide

• ❗ Firmware Revision Traps: Never mix early-revision expansion cards with a late-production without checking the backplane bus timing. A firmware mismatch will throw an unrecoverable fault code on startup.
• ❗ Grounding Loop Hazards: Ensure the chassis ground lug on the is tied to the main cabinet ground busbar with braided copper. Skipping this step introduces electrical noise that corrupts encoder feedback signals.
• ❗ Backplane Power Draw Limits: Before hot-swapping or adding the to a heavily populated rack, calculate the total 24V current draw to avoid dropping system voltage below logic thresholds.

Intent-Driven FAQ

Can I hot-swap the without powering down the entire rack?

No. Cutting power to the backplane is mandatory before inserting or removing the to prevent arc-flash damage to the delicate edge connectors.

Is this unit brand new or refurbished?

This specific inventory is verified surplus—un-installed factory stock stored in climate-controlled environments, complete with original manufacturer markings.

Will this work with older controller firmware versions?

It depends on your system revision. The requires a baseline firmware level to process high-speed command strings properly; check your system logs before installation.

What kind of warranty comes with this module?

Every surplus includes a comprehensive 1-year replacement warranty covering any functional defects under normal operating conditions.

Do I need proprietary programming software to configure it?

Standard configuration parameters can usually be passed via the master PLC rack, though specific tuning registers may require the OEM engineering utility.
