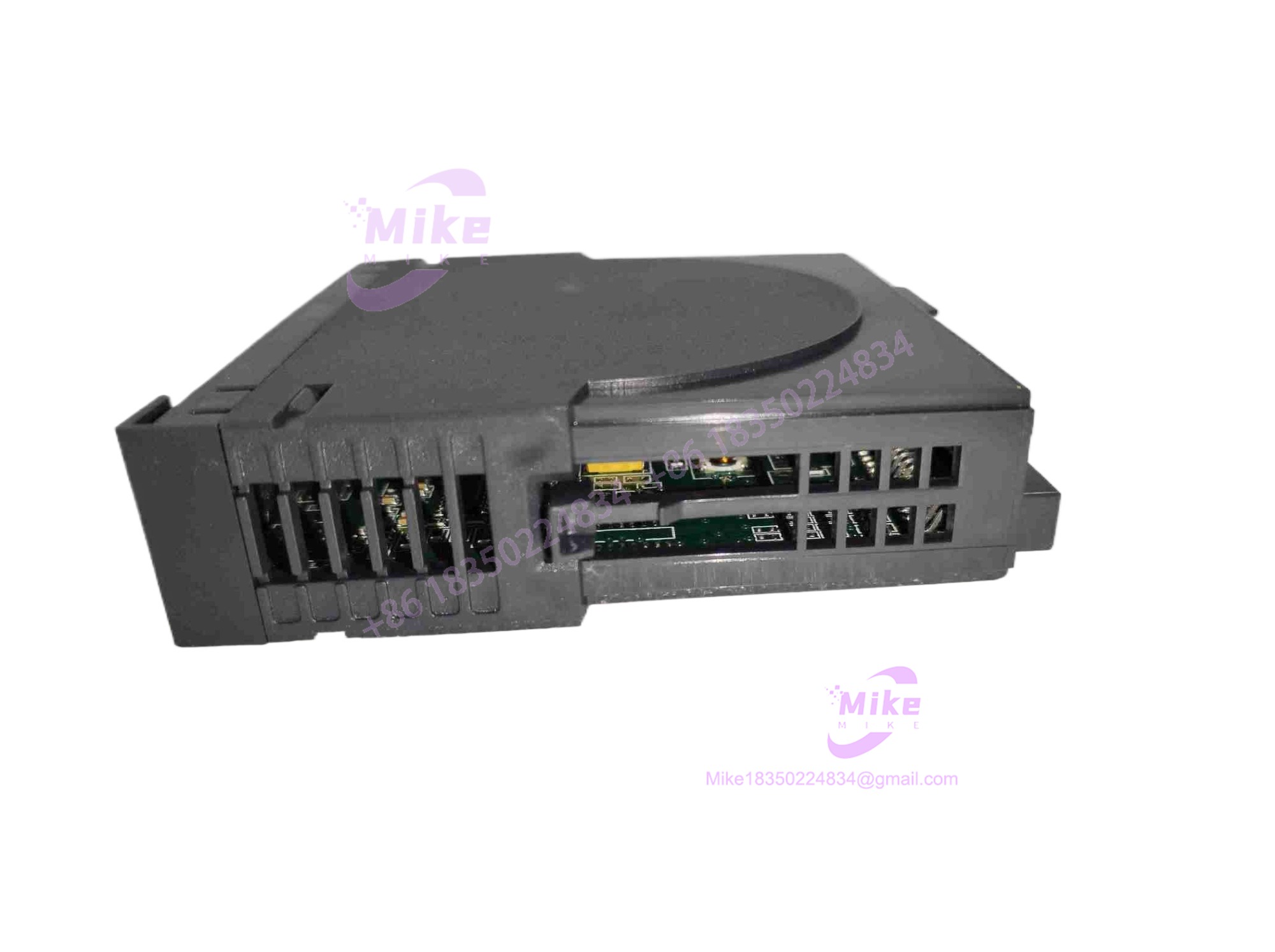

Metso D201134 (AI8C) | 8-Channel Analog Input Module
Dynamic Product Introduction
Replacing analog input cards in heavy industrial process control systems requires precision hardware that can reject electrical noise while maintaining tight measurement accuracy across critical loops. Honestly, the Metso D201134 (AI8C) solves this challenge directly by delivering native 8-channel analog input processing engineered specifically for Metso automation racks. This module captures live process variables smoothly without signal drift or analog jitter (—though verifying your exact sensor configuration and shielding ground bonds beforehand is essential). Compared to generic third-party interface cards, the Metso D201134 preserves cabinet architecture compatibility, preventing costly rewiring or calibration mismatches during critical maintenance windows.
D201134
Key Technical Specifications
| Specification | Parameter Value |
| Product Series | Metso Automation DNA / Damatic I/O Line |
| Module Designation | AI8C / AI8 Analog Input Module (Model D201134) |
| Number of Channels | 8 Analog Input Channels |
| Signal Processing | High-resolution Analog-to-Digital Conversion (ADC) |
| Isolation | Optical/galvanic channel isolation |
| Operating Temperature | 0°C to 50°C industrial standard |
| Enclosure Rating | IP20 open-type internal rack module |
| Mounting Style | Rack or DIN-rail backplane slot mounting |
| Diagnostics | Onboard status indicators for module and channel health |
