Matrox Orion 979-0101 | PCI/RGB Video Capture Card Core Category
Dynamic Product Introduction
Integrating legacy imaging hardware back into a running industrial inspection cell can become a nightmare when standard frame grabbers fail. When an aging machine vision workstation stops acquiring camera frames due to a dead video capture card, production line tracking grinds to a halt. The Matrox Orion 979-0101 PCI/RGB board resolves these integration bottlenecks by providing native analog video capture and deterministic signal processing across older processing platforms.
Unlike commercial multimedia cards, this industrial-grade frame grabber is engineered to handle rigorous multi-channel analog inputs and precise synchronization requirements typical of legacy semiconductor and manufacturing inspection lines. Maintaining absolute imaging stability on older host computers demands exact hardware matching—making this specific PCBA essential for preventing costly downtime events.

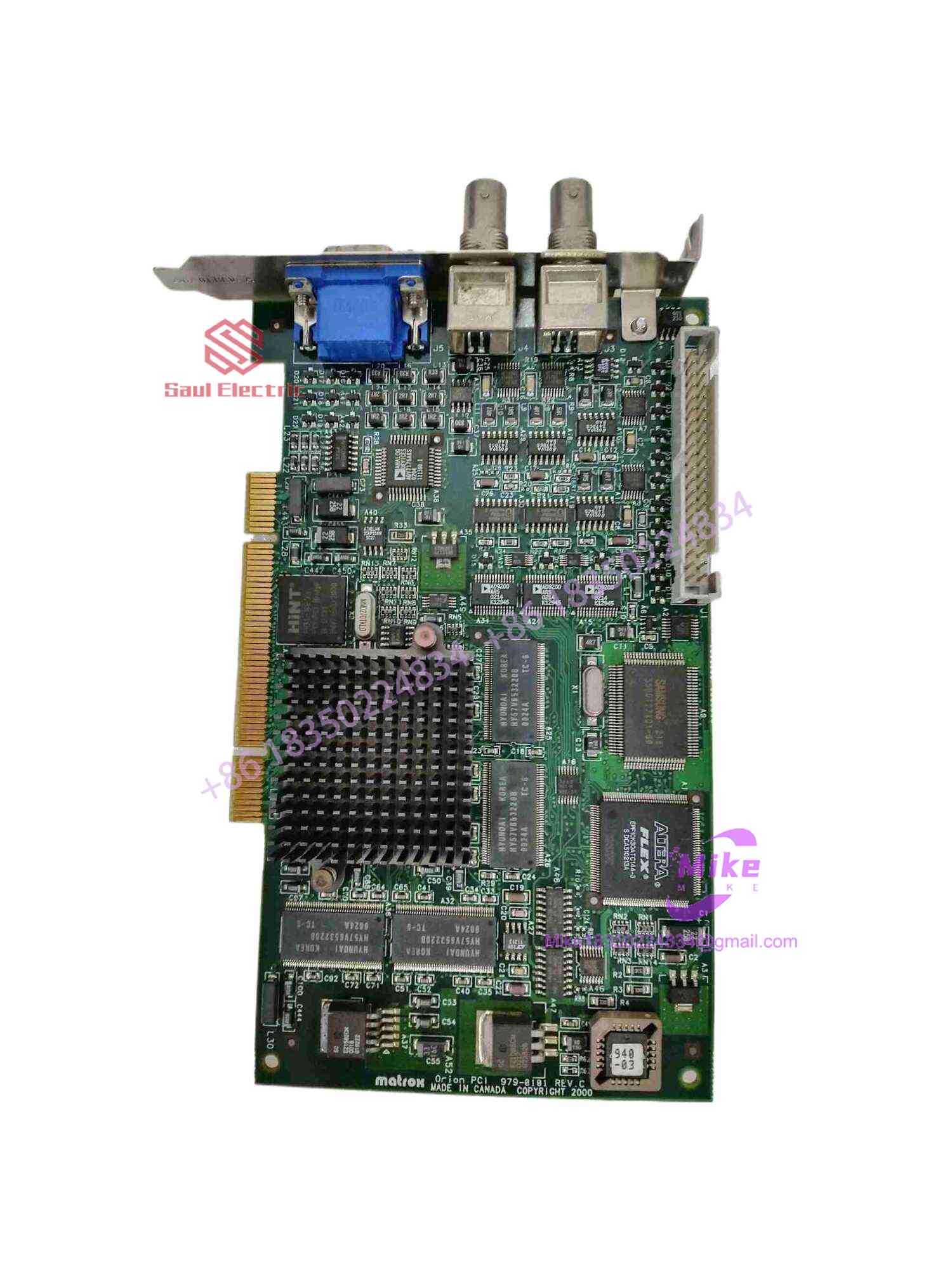

979-0101
Key Technical Specifications
| Parameter | Specification Detail |
| Manufacturer | Matrox |
| Assembly Part Number | 979-0101 (Orion PCI/RGB) |
| Bus Architecture | Conventional PCI Bus Interface |
| Primary Function | High-Resolution Frame Grabber and Video Capture |
| Input Signals | Multi-channel Analog RGB / Composite Video Streams |
| Form Factor | Standard PCI Add-in Card PCBA |
| Onboard Processing | Dedicated video digitization and memory buffers |
| Operating Environment | Industrial computer chassis (15°C to 30°C, non-condensing) |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring secondary-market legacy video acquisition hardware requires strict verification protocols to ensure zero trace damage or component degradation before installation. Our qualification workflow covers:
- Inbound Verification: Incoming circuit boards undergo high-magnification optical inspection to detect solder micro-fissures, trace wear, or thermal stress around the PCI edge connector and video input ports. Original OEM asset tags are authenticated against global traceability logs.
- Live Simulation: We slide the module into a dedicated, fully powered legacy PCI test bench running corresponding machine vision software environments.
- Diagnostics: Engineers execute rigorous image acquisition cycles across all analog channels simultaneously. Signal lock, frame rate stability, and color/grayscale integrity are tracked over an accelerated 24-hour heat run.
- Final Prep: Once testing criteria are met, contact fingers are cleaned, and the unit is placed in a dissipative antistatic bag, then vacuum-sealed inside a moisture-barrier shield.
The Field Engineer’s Pitfall Guide
❗ PCI Slot Voltage Mismatches: Installing this legacy 5V/3.3V PCI card into an unsupported modern motherboard slot can instantly fry the board’s bus interface logic. Always verify motherboard slot compatibility before seating.
❗ Hot-Plugging System Damage: Never insert or remove this capture card while the host computer power supply is energized. I’ve seen technicians instantly destroy delicate onboard multiplexer chips because they skipped shutting down the rack.
❗ Improper BNC / Multi-Pin Termination: Failing to secure proper impedance matching or grounding on incoming analog camera cables will inject massive signal noise, resulting in severe image tearing and dropped frames.
Intent-Driven FAQ
Can I use the Matrox 979-0101 card in a modern Windows 10/11 workstation?
Due to legacy driver architecture and the requirement for a physical PCI slot, this card is typically restricted to older operating systems (such as Windows NT, 2000, XP, or legacy Linux kernels) tied to specific industrial machine vision software.
Will replacing this capture card erase my machine vision inspection program?
No. The inspection scripts, camera configuration files, and software logic reside on the host computer’s hard drive storage, not on this hardware frame grabber.
How do I quickly diagnose if my camera signal loss is caused by this card or the camera itself?
Observe the software error logs and check physical input connections. If the host system fails to recognize the PCI device on boot, or if live preview channels remain black despite verified camera power, the 979-0101 card requires replacement.
Are replacement components on this board field-repairable?
Due to dense surface-mount component layouts and specialized video processing architecture, component-level field repairs are generally not recommended. Whole-board replacement ensures reliable system uptime.
What level of warranty is included with this refurbished capture card?
We back this component with a comprehensive one-year replacement warranty, covering material and operational defects under standard industrial operating conditions.
