Lenze E84AVSCE3712SX0 | 0.37 kW AC Vector Drive, New Surplus
Architect’s Product Breakdown
The Lenze E84AVSCE3712SX0 is a compact frequency inverter belonging to the robust 8400 StateLine (E84A) series. Designed for demanding industrial applications requiring advanced vector control—such as conveyors, pumps, fans, winders, and handling equipment—the StateLine series bridges the gap between basic V/f control and high-end servo positioning. It features integrated application blocks, built-in energy-saving functions, and comprehensive diagnostic capabilities to ensure reliable operation under continuous duty cycles.
Because the 8400 StateLine architecture relies on plug-in memory modules and modular communication cards, matching exact part number strings is vital when executing quick maintenance swaps. Technicians replacing a failed drive must back up or transfer the parameter memory module to maintain identical speed profiles, acceleration ramps, and fieldbus node settings.

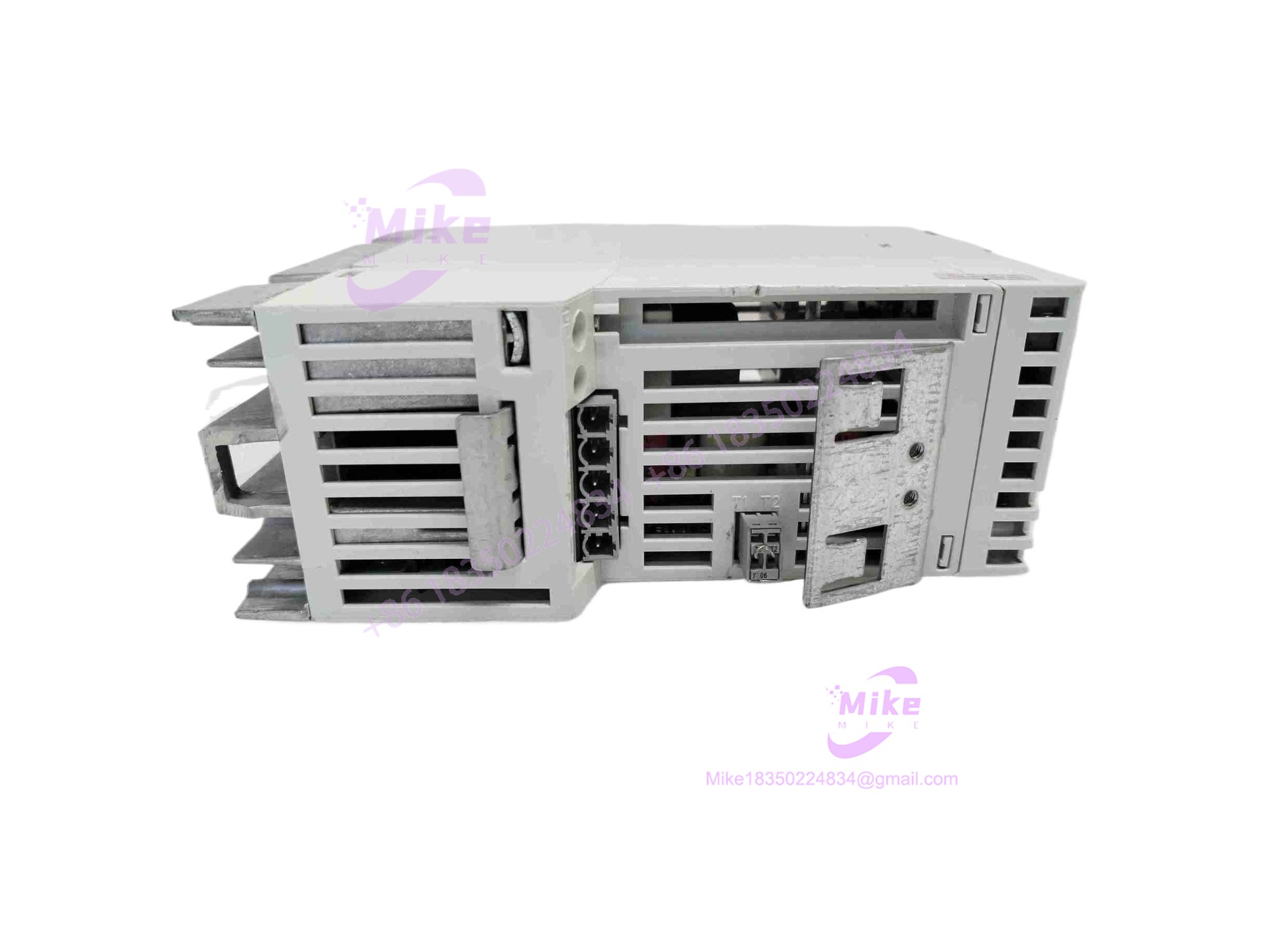

E84AVSCE3712SX0
Key Technical Specifications
| Parameter | Specification |
| Series | Lenze 8400 StateLine (E84A) Inverter Family |
| Model / Part Number | E84AVSCE3712SX0 |
| Power Rating | 0.37 kW (0.5 HP) continuous output capacity |
| Mains Voltage Input | 3 × 400 / 500 V AC, 50/60 Hz (permissible range 380–528 V) |
| Rated Output Current | 1.3 A (at 400 V) |
| Control Architecture | V/f characteristic control (linear/quadratic), sensorless vector control (SLV) |
| Communication / Interface | Diagnostic interface + slot for plug-in network modules (PROFIBUS, CANopen, PROFINET, EtherCAT) |
| Enclosure Rating | IP20 (designed for internal ventilated control cabinet installation) |
| Dimensions & Weight | Compact bookstyle housing (~1.2 kg nominal) |
Field Engineer’s Pitfall Guide
- WARNING: DC Bus Capacitance Hazard. Never touch power terminals immediately after cutting mains power; internal DC bus capacitors retain dangerous high-voltage electrical charge and require time to discharge completely.
- WARNING: Independent 24V Control Power Requirement. The 8400 StateLine drive requires an active, stable 24V DC auxiliary control supply to operate its internal logic board and maintain communication before main AC power is applied.
- WARNING: Mismatched Brake Chopper Sizing. Relying on internal braking transistors without verifying whether an external dynamic braking resistor is required can cause DC bus over-voltage faults during rapid deceleration of high-inertia loads.
- Field Anecdote: I watched an automated conveyor line experience repeated startup lockouts because a replacement 8400 drive was installed without swapping the pre-programmed memory chip from the old unit, causing the drive to throw a configuration mismatch error on the diagnostic display.
QA & Testing SOP
- Visual & Origin Verification: Inspect the plastic housing, cooling fins, and removable terminal connectors for mechanical cracks, thermal discoloration, and verify original Lenze factory nameplate data.
- Live Test Bench Environment: Mount the drive inside an IP20-compliant test enclosure, supply a stable 24V DC control rail, and connect an isolated 3-phase AC input supply.
- Diagnostics & Motor Sweep: Verify communication handshakes across the diagnostic port, check brake transistor switching behavior, and execute a low-speed motor rotation test to confirm vector control output stability.
- Anti-Static & Secure Packaging: Enclose the unit in anti-static wrapping and heavy structural foam cushioning to protect fragile terminal pins and communication slots during transport.
Technical FAQ
Can the E84AVSCE3712SX0 control synchronous servo motors?
No. The StateLine (E84A-S) series is optimized for open-loop and closed-loop control of standard asynchronous AC induction motors. For permanent-magnet synchronous servo motors, the 8400 TopLine series is required.
How are parameter settings transferred during a drive replacement?
Parameters can be easily transferred by removing the plug-in memory module (diagnostic/parameter memory chip) from the failed drive and inserting it directly into the replacement unit.
Does this drive require forced fan cooling?
At 0.37 kW, this compact unit relies primarily on natural convection cooling inside the cabinet, though ambient enclosure temperature must stay within specified limits (typically up to +40°C or +45°C derated).
Is this hardware hot-swappable while energized?
No. Plugging or unplugging power leads, motor cables, or communication modules while the drive is powered on will cause severe electrical arcing and permanent internal circuit board damage.
