Lauer PCS 9100 | Industrial Operator Panel & HMI Terminal Specs
Architect’s Product Breakdown
The System Lauer PCS 9100 serves as a dedicated industrial operator panel designed for legacy machine automation, packaging systems, and material handling lines. Engineered as a compact HMI terminal, this hardware model combines a high-contrast industrial display with an integrated tactile membrane keypad to allow machine operators to adjust setpoints, view real-time diagnostic alarms, and trigger machine cycles. By establishing point-to-point communication with host PLCs, the terminal offloads direct switch wiring from control panel doors into a streamlined serial network loop.
Deploying or servicing this model in an existing automated line requires setting up hardware communication parameters and matching PLC protocol drivers (such as Siemens MPI/PPI, Modbus RTU, Allen-Bradley DF1, or proprietary Lauer drivers). Featuring a sealed front bezel rated for IP65/NEMA 4 environments, the unit resists industrial contaminants, coolant splash, and shop-floor vibration. When replacing failing units, automation engineers must ensure proper 24 VDC supply wiring and verify that project memory files are correctly transferred via the original Lauer configuration software suite.

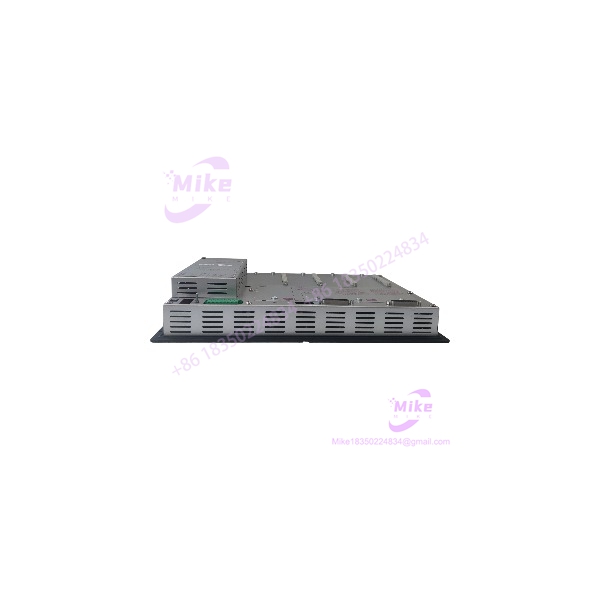

PCS9100
Key Technical Specifications
- Manufacturer: System Lauer (Lauer)
- Product Category: HMI Operator Interface Panel
- Part Number / Catalog No.: PCS 9100 / PCS9100 (e.g., 9000.208.B 200195)
- Display Type: Industrial Monochrome Graphic/Text LCD with backlighting
- Input Interface: Integrated Tactile Keypad (Function keys, numeric entry, navigation keys)
- Supply Voltage: 24 VDC (\pm 15\% nominal industrial input)
- Serial Interfaces: Multi-standard serial port (RS-232 / RS-422 / RS-485 selectable)
- Supported Protocols: Siemens S7/S5, Modbus, Allen-Bradley, Omron, and Lauer standard protocols
- Front Panel Protection Rating: IP65 / NEMA 4 (dust-tight and splash-resistant when panel mounted)
- Operating Temperature Range: 0°C to +50°C
- Approximate Dimensions: 41.0 cm \times 26.0 cm \times 10.0 cm
- Weight: Approximately 5.0 kg (11.0 lbs)
Field Engineer’s Pitfall Guide (Unique Value)
- Hot-Plugging Serial Communication Cables: Never connect or disconnect communication cables between the PCS 9100 and the PLC while either unit is powered on. Live serial line switching risks blown RS-232/RS-485 transceivers due to ground differential voltage spikes.
- Corrupted EEPROM Flash Project Memory: Subjecting the 24 VDC power lines to severe voltage brownouts or inductive voltage spikes during data writes can corrupt the onboard project file. Always install an inline 24 VDC line filter or regulated power supply.
- Over-Tightening Mounting Clamps: Excessively torquing the panel mounting clips can distort the front bezel housing, warping the IP65 seal and allowing cutting fluids or moisture to enter the internal circuit boards.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Units undergo microscopic examination to confirm keypads have no membrane tears or cracks, display filters are unblemished, terminal blocks are intact, and authentic OEM labels are present.
- Live Test Bench Environment: Panels are powered on a 24 VDC test rig to evaluate display backlight uniformity, screen contrast, internal power supply stability, and boot sequence execution.
- Keypad & Serial Loopback Diagnostics: Technicians perform full key matrix functional tests to verify button contact resistance, then test RS-232/RS-485 serial communication using active PLC test rigs to ensure error-free data polling.
- Anti-Static Packaging: Post-testing units are wrapped in ESD protective bags and cushioned in high-density foam packaging to prevent mechanical or electrostatic damage during transport.
Technical FAQ
Can I hot-swap the PCS 9100 operator panel while the control cabinet is energized?
No. Always turn off the 24 VDC power supply before connecting or disconnecting power cables and serial communication lines to prevent electrical damage to serial transceivers.
What software is required to program this operator panel?
This model requires legacy Lauer programming software (such as PCS-Pro or Lauer Software Suite) running on a PC to create, edit, and download screen applications via a dedicated serial programming cable.
How is the front panel sealed against industrial moisture and dirt?
The unit features an integrated elastomeric gasket around the rear edge of the front bezel, providing IP65 panel-mount protection against dust and liquid splash when mounted into a clean cutout.
What is the standard warranty status for surplus inventory units?
Verified surplus or factory-sealed operator panels typically carry a 12-month to 24-month operational warranty covering material and manufacturing defects under standard operating conditions.
