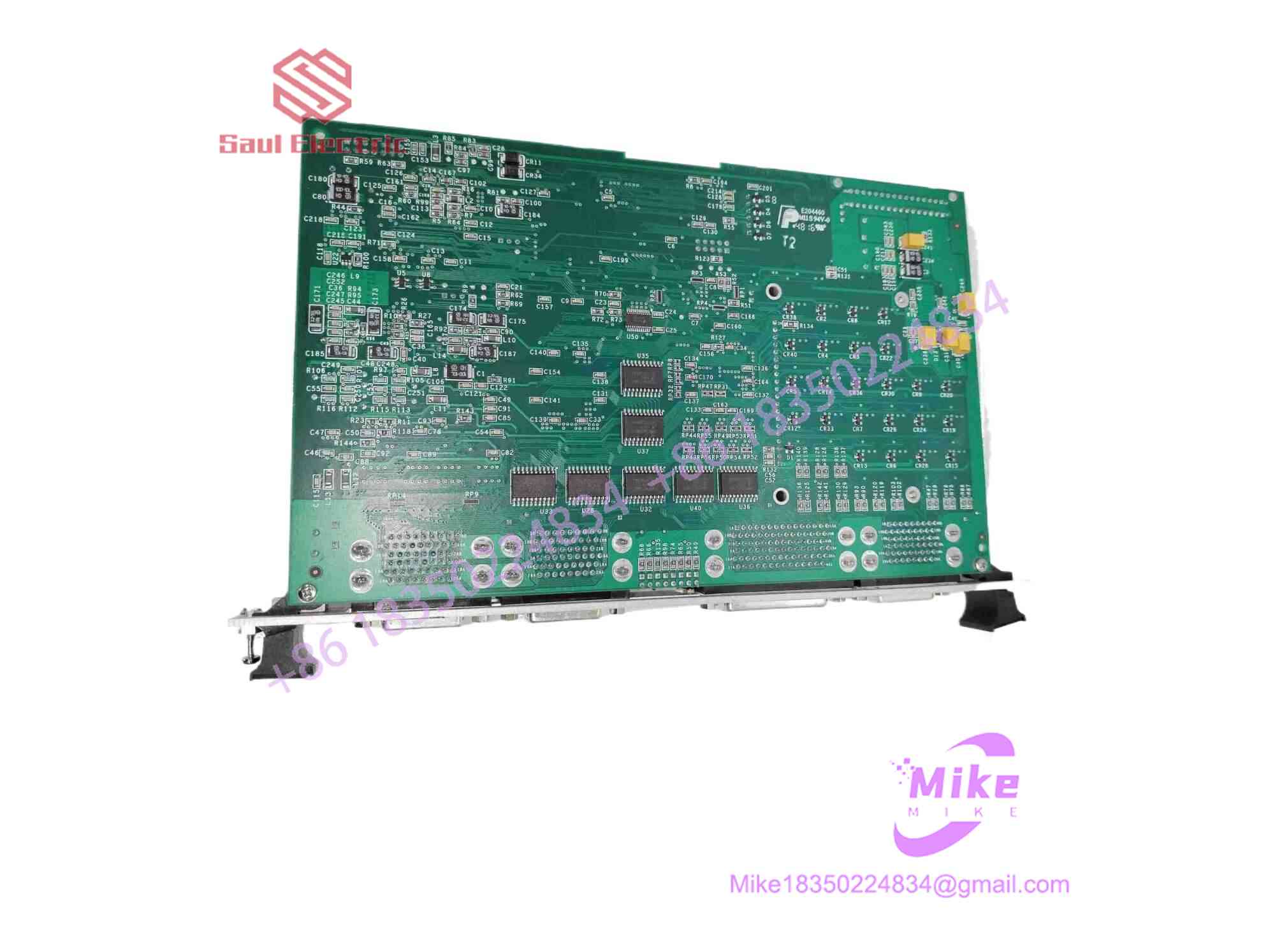

Lam 810-082745-003 | System Distribution Printed Circuit Board

Description

Lam 810-082745-003 | System Distribution Printed Circuit Board

Dynamic Product Introduction

Finding out an obscure interface PCB has given up the ghost mid-production cycle is an operational headache no fab manager wants to manage. When core signal distribution pathways degrade under years of continuous thermal cycling, logic data packets begin to drop, throwing erratic communication flags that stall wafer processing tools. The Lam 810-082745-003 is engineered specifically to maintain strict electrical connectivity and signal fidelity across critical processing racks, anchoring the underlying architecture of advanced Lam etch systems.

Unlike standard commercial-grade hardware, this specialized printed circuit assembly features heavy-duty multi-layer grounding and isolated trace routing designed to suppress high-frequency electromagnetic noise common in plasma-active environments. Dropping in a fully verified 810-082745-003 eliminates phantom bus timeouts, re-establishes clean telemetry loops, and safeguards your tool against recurring hardware-level faults.

810-082745-003

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Deploying surplus circuit boards into active fabrication lines requires uncompromising verification standards. Every incoming 810-082745-003 passes through our strict four-stage qualification pipeline before entering sealed inventory:

1. Visual Inspection & Trace Audit:
   • High-magnification microscopic screening of all trace runs, through-hole plating, and surface-mount pads to detect micro-cracks or oxidation.
   • Pin alignment and connector integrity checks to rule out physical wear or bent contact terminals.
   • OEM label tracking and revision validation against engineering data records.
2. Continuity & Ground Isolation Bench Testing:
   • Automated point-to-point resistance mapping across every trace path to ensure zero internal layer opens or short circuits.
   • Isolation testing between power and ground planes to verify zero leakage currents.
3. Active Rack Simulation & Thermal Soak:
   • Seating the board into an authentic Lam 2300 card cage simulator under operational voltage loads.
   • Executing continuous signal transmission loops while cycling the board through a 24-hour thermal soak at 45°C to expose latent component failure risks.
4. Final Decontamination & ESD Protection:
   • Residue-free solvent cleaning of all edge fingers and connector sockets.
   • Vacuum sealing inside a heavy-duty anti-static shielding bag with fresh desiccant and a humidity indicator card.

The Field Engineer’s Pitfall Guide

• ❗ Hidden Trace Micro-Fractures from Over-Torquing:

  When mounting the 810-082745-003 into an equipment rack, tightening standoff screws out of sequence can warp the PCB substrate. This mechanical stress frequently fractures internal copper layers—I’ve witnessed maintenance teams troubleshoot phantom communication drops for days, only to find the fault was a hairline trace break caused by uneven chassis mounting torque.

• ❗ Ignoring Mating Harness Strain Relief:

  The dense pin headers on this board are vulnerable to physical leverage. Securing heavy wiring harnesses without proper external strain relief brackets will peel solder pads right off the board surface during routine tool vibration. Always verify that harness support clamps are secured before finishing the install.

• ❗ Failing to Verify Downstream Short Circuits:

  If your original board failed due to an external component short (such as a compromised solenoid or shorted sensor wire), plugging a fresh replacement board into that same harness will instantly destroy the new unit’s input paths. Always meter your external field lines to ground prior to card installation.

Intent-Driven FAQ

What is the primary function of the Lam 810-082745-003 board?

It acts as a high-density system distribution and interface circuit board, providing structural and electrical pathways for data transmission, logic control, and signal routing between core chamber sub-assemblies.

Can an aging 810-082745-003 board cause intermittent communication errors?

Yes. As internal traces, filtering components, or solder joints experience prolonged thermal expansion and contraction, resistance can shift or micro-fractures can develop, resulting in intermittent packet loss and soft system interlock trips.

Is the 810-082745-003 board field-repairable at the component level?

While individual passive components can theoretically be replaced, component-level field repair is strongly discouraged for semiconductor production hardware. Manual soldering risks compromising multi-layer internal traces and destroying the protective conformal coating barrier.

Are all dash revisions of the 810-082745 series completely interchangeable?

Not necessarily. While physical dimensions and main footprints generally match within a base part number family, minor dash revision shifts (e.g., -001 to -003) can involve updated ground routing or altered component tolerances. Always cross-reference your tool’s parts manual and software baseline before swapping variants.

What kind of warranty is provided with certified surplus units?

All fully tested and refurbished 810-082745-003 boards include a comprehensive 1-year replacement warranty. If the unit experiences functional failures or trace defects under standard operating conditions within 365 days of delivery, it is eligible for an immediate advance replacement or repair service.
