Indramat TKF3 109-0780-4A01-02 | Servo Drive Subassembly Module

Description

Indramat TKF3 109-0780-4A01-02 | Servo Drive Subassembly Module

Dynamic Product Introduction

Internal power rail drops, unexpected servo drive shutdowns, and voltage regulation faults on legacy Bosch Rexroth Indramat motion control systems frequently originate from aging internal power supply boards rather than main external transformers. When an older drive chassis begins throwing TKF3-related errors or failing to maintain stable internal logic voltages, tweaking software parameters or external fusing fails to resolve component-level electrical drift. Deploying the Indramat 109-0780-4A01-02 resolves this reliability constraint directly, swapping in an OEM-spec subassembly module engineered to restore exact power regulation and system timing.

In critical plant maintenance scenarios, installing this exact replacement circuit card re-establishes normal drive operation without forcing an expensive, full-scale amplifier chassis overhaul. (Though verifying backplane pin alignment, bus voltage scaling, and jumper configurations prior to energization remains essential.) It handles demanding continuous-duty industrial cycles smoothly, keeping legacy manufacturing assets running safely.

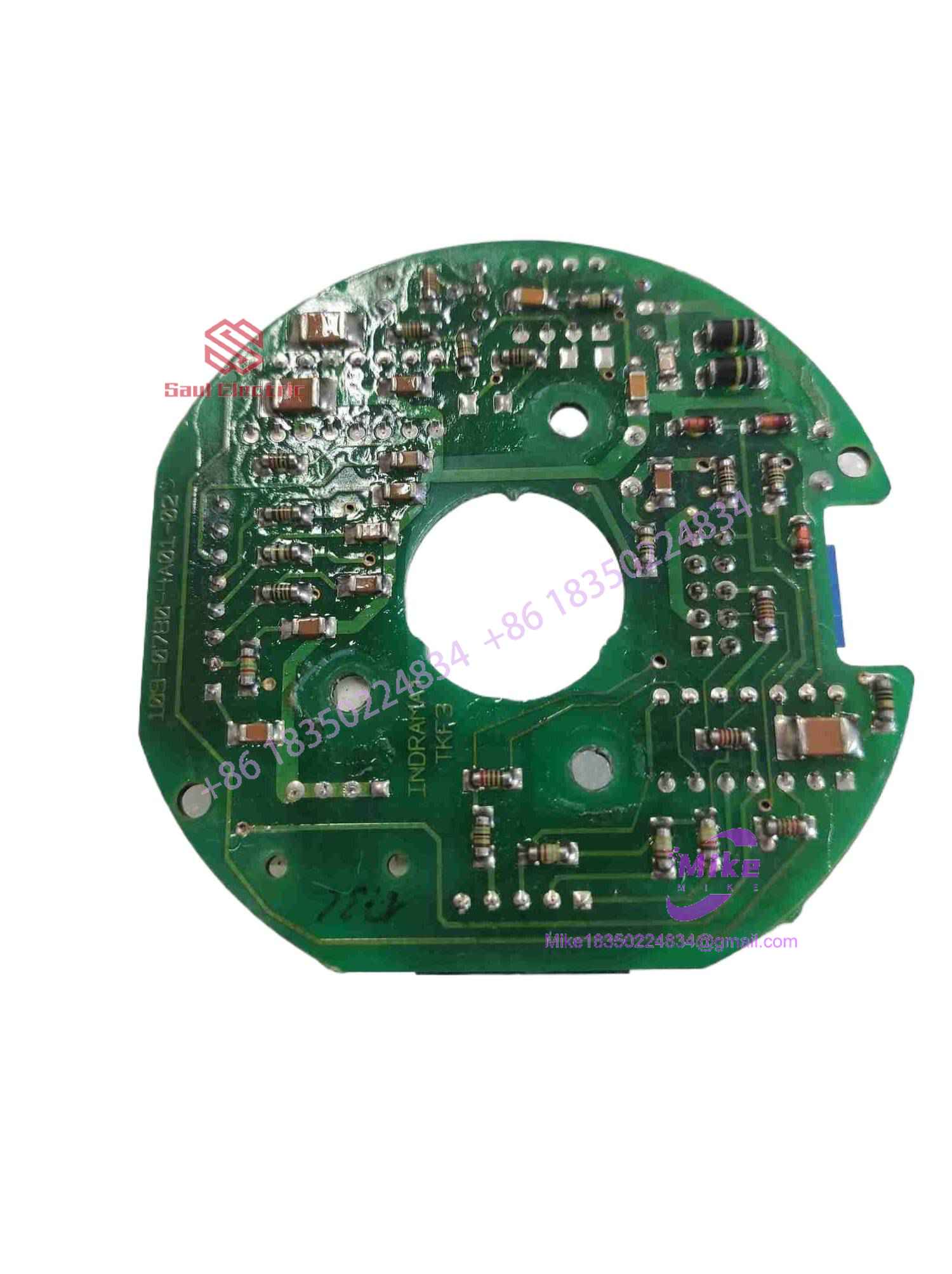

109-0780-4A01-02

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Procuring critical industrial automation hardware demands rigorous static protection and bench validation to guarantee absolute system reliability upon installation.

• Inbound Verification: Incoming subassembly boards undergo comprehensive serial tracking, OEM watermark verification, and anti-counterfeit batch inspections against historical production ledgers.
• Live Simulation: Qualified cards are mounted onto a designated test fixture to evaluate power-rail conversion, ripple suppression, and load regulation.
• Diagnostics: Technicians execute thermal soak evaluations, high-voltage isolation sweeps, and continuous current stress tests to isolate latent component failure risks.
• Final Prep: Connector edge fingers are chemically cleaned to remove micro-oxidation, and the module is sealed inside heavy-duty multi-layer anti-static barrier packaging.

The Field Engineer’s Pitfall Guide

❗ Bus Voltage Hazards: Handling power supply subassemblies without allowing DC bus capacitors to fully discharge risks severe electrical shock or component damage. Always verify a zero-voltage state using a digital multimeter prior to touching internal components.

❗ Hardware Revision Mismatches: Installing a replacement board running an incompatible revision code relative to your drive rack’s firmware can trigger fatal system errors or drive faults. Always verify revision string parity prior to startup.

❗ Improper Backplane Seating: Forcing a modular circuit card into an energized or misaligned slot risks pin arcing and logic corruption. Always drop main cabinet power completely before insertion or extraction.

Intent-Driven FAQ

Will this module integrate directly into my existing Indramat TKF3 drive chassis?

Yes, the 109-0780-4A01-02 is engineered as a direct form-fit replacement designed to match legacy mounting slots, backplane pinouts, and power parameters.

Are these legacy circuit cards factory sealed or certified surplus stock?

We maintain strict inventories of both factory-sealed surplus hardware and fully recertified, bench-tested units. Each listing explicitly details the precise condition tier to match your operational standards.

Do I need to check configuration settings prior to installation?

Yes, verifying internal jumpers, switches, and option configurations against your removed unit ensures seamless integration upon initial power-up.

What kind of warranty coverage is included with this replacement part?

Every unit is backed by our comprehensive operational warranty, covering electrical component health, interface stability, and functional performance from day one.
