HMS Anybus AB7000-C | Serial Master to PROFIBUS Gateway
Dynamic Product Introduction
Integrating legacy serial instrumentation—such as barcode scanners, weight scales, or frequency drives—into a high-speed PROFIBUS control architecture usually requires custom PLC mapping scripts or expensive protocol cards. The HMS Anybus AB7000-C gateway bypasses this integration barrier by performing an intelligent, standalone hardware conversion between serial strings and PROFIBUS-DP.
Honestly, while newer multi-network bricks have entered the market, this classic Communicator unit remains a heavily deployed workhorse across industrial plants. It handles custom ASCII or Modbus-RTU query/response strings transparently, letting your host PLC read field data without modifying the underlying device firmware.

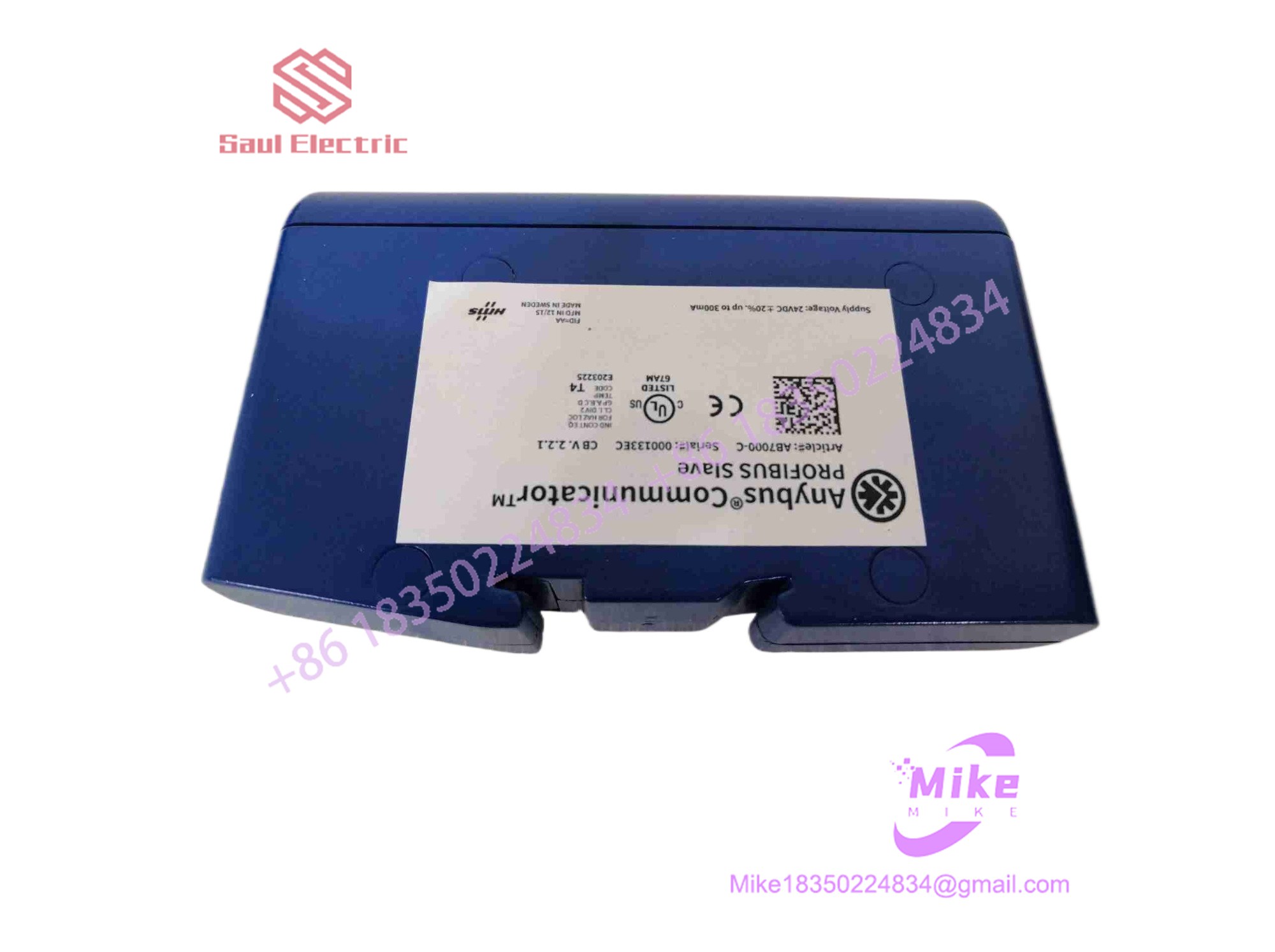

AB7000-C
Key Technical Specifications
| Parameter | Specification Detail |
| Primary Function | Serial Master / Subnetwork to PROFIBUS DP-V0 Slave |
| Serial Physical Standards | RS-232, RS-422, RS-485 (Software selectable) |
| Baud Rate (Serial) | Up to 57.6 kb/s |
| PROFIBUS Baud Rate | Up to 12 Mbps (Auto-detect) |
| Maximum Subnetwork Nodes | Up to 31 serial slave devices |
| Power Supply Requirements | 24 VDC (\pm 10%) |
| Enclosure & Mounting | IP20 DIN-rail mount plastic housing |
| Operating Temperature | 0°C to +55°C |
| Dimensions | 120 mm x 75 mm x 27 mm |
Global Sourcing & Live-Test SOP
Procuring legacy or discontinued protocol converters like the AB7000-C requires strict verification of both internal serial transceivers and bus communication controllers. Our quality workflow guarantees functionality before dispatch:
- Inbound Verification: Units are inspected for physical enclosure damage, terminal block integrity, and OEM factory label authenticity to eliminate gray-market variants.
- Live Simulation: The gateway is powered on a dedicated test rig containing a PROFIBUS master controller and an active RS-485 serial peripheral simulator.
- Diagnostics: Using Anybus Configuration Manager software, we push custom protocol templates down the serial line. We verify data mapping integrity, packet response timing, and ensure the PROFIBUS master establishes a stable data exchange state without dropping telegrams.
- Final Prep: Modules are cleaned, interface ports are capped, and units are sealed in anti-static moisture-barrier packaging.
The Field Engineer’s Pitfall Guide
❗ Subnetwork Polling Overloads: Setting the serial poll rate too aggressively on a multi-drop RS-485 string can swamp the gateway’s internal buffer, causing intermittent PROFIBUS timeout flags in your PLC. Always pace your query requests to match the field device’s actual response latency.
❗ Termination Resistor Blindness: Failing to install proper 120-ohm line termination resistors at both ends of a long RS-485 cable run will create signal reflections, resulting in sporadic framing errors that are difficult to trace back to the gateway.
❗ Configuration File Loss: The AB7000-C stores its translation profile internally; if you swap an unprogrammed spare unit into a live rack without uploading the exact .cfg file via the serial configuration port, the gateway will remain offline to the PROFIBUS master.
Intent-Driven FAQ
Can the AB7000-C act as a PROFIBUS Master?
No. The AB7000-C operates as a PROFIBUS Slave on the control network side, while acting as a Master (or query-response handler) on its serial subnetwork side.
What software do I need to configure this gateway?
You use the Anybus Configuration Manager (ACM) software running on a PC connected via a standard serial cable to map data registers between the serial device and the PROFIBUS cyclic I/O data table.
Is the still actively manufactured?
No, HMS has transitioned this specific classic model to legacy status, though certified surplus and direct functional replacements remain widely available for maintenance support.
What GSD file is required for PLC integration?
You must download the specific device master file (.gsd) corresponding to the from the manufacturer support portal and import it into your automation engineering software (e.g., Siemens STEP 7 / TIA Portal).
What warranty is included with surplus units?
Every unit supplied from our inventory is backed by a 12-month operational warranty covering both internal interface boards and power regulation components.
