GEA Westfalia 0005-4050-430 | D-10 Purifier Control Unit

Description

GEA Westfalia 0005-4050-430 | D-10 Purifier Control Unit

Product Introduction

When a heavy fuel oil purifier drops offline mid-voyage due to a controller watchdog crash, engine room engineers do not have time to re-engineer an entire panel cabinet. Sitting at the heart of GEA Westfalia D-10 separator systems, this integrated controller executes complex de-sludging routines, timing water-seal cycles and bowl discharge sequences down to the millisecond. Built on the customized Siemens Simatic C7-613 architecture, it combines a rugged operator interface with onboard PLC processing power inside a single panel-cutout housing.

Engineered to endure the intense vibration and ambient thermal stress of marine separator rooms, the module operates on a standard 24VDC rail. The onboard display gives operators instantaneous feedback on bowl speed, pressure differentials, and discharge timing—though you will want to keep engine room ambient air under 55°C to preserve LCD backlight lifetime. Swapping in a pre-tested, genuine unit restores discharge synchronization immediately, saving your fuel treatment skid from bowl clogging and catastrophic mechanical balance failures.

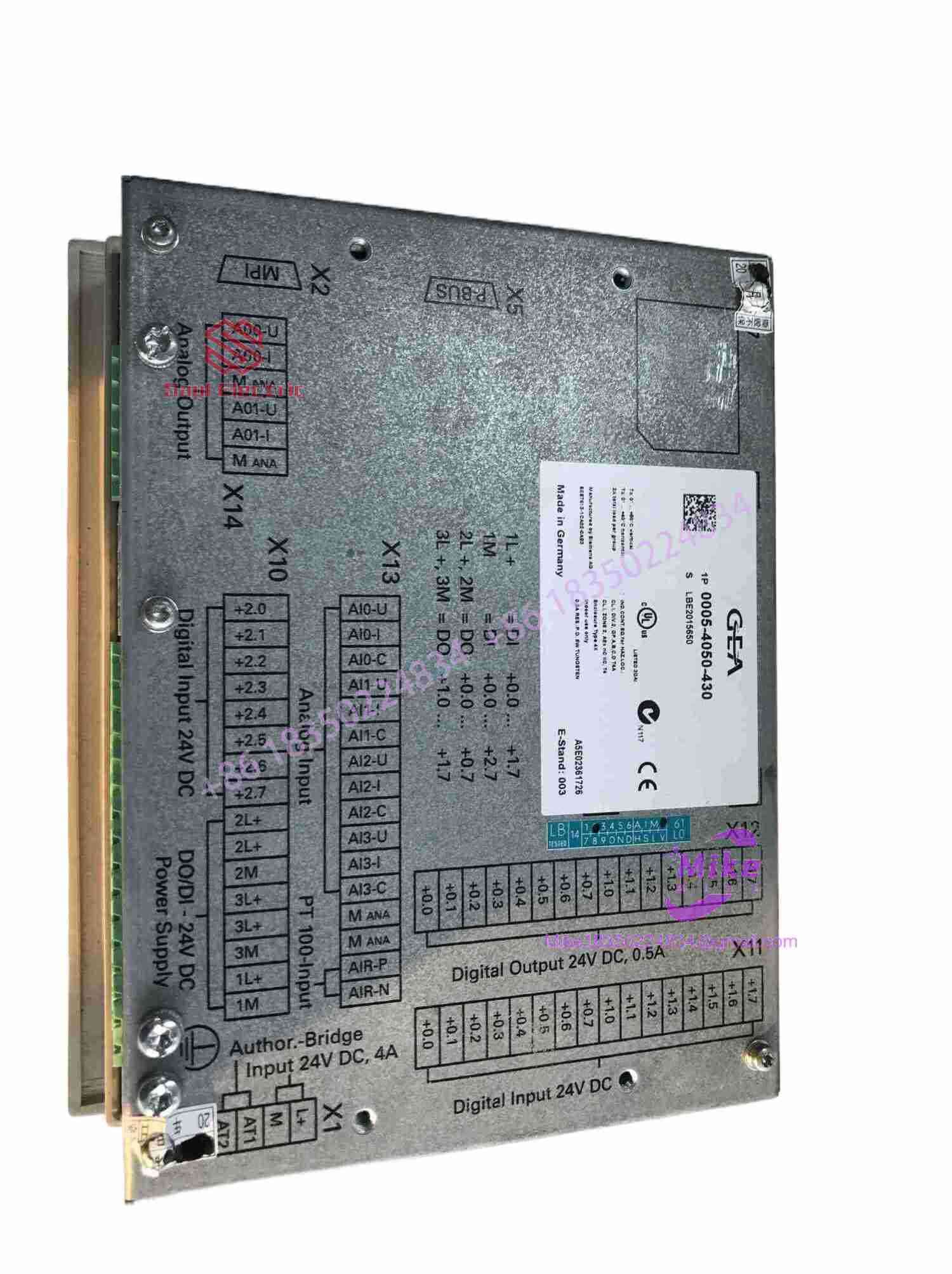

0005-4050-430

Key Technical Specifications

Application Scenarios & Pain Points

Field Experience: A bulk carrier operating in the North Atlantic experienced recurring separator overflow alarms on its main engine HFO treatment skid. The local separator panel kept hanging mid-de-sludge, leaving the bowl partially open and wasting fuel into the sludge tank. Swapping the failing 0005-4050-430 module cleared the corrupted memory stack on the C7 platform, bringing timing back to exact specs and halting fuel loss overnight.

• With Genuine 0005-4050-430: Precise microsecond timing for solenoid discharge valves, stable backplane logic, and zero communication lockups during main engine load shifts.
• Without (Failed / Poorly Rebuilt Controller): Missed bowl ejection cycles, corrupted operating parameters, and sudden HFO/LFO crossover contamination inside the purifier.
• Marine Heavy Fuel Oil (HFO) Purifiers: Controls the automatic shooting/sludge discharge sequence based on pressure drop and timer thresholds.
• Lube Oil (LO) Separator Skids: Continuous-duty operation maintaining main engine lube oil purity without dropping communication to central engine telegraph systems.

QA & Live Testing SOP (Trust Signal)

Every 0005-4050-430 module leaving our bench undergoes a rigorous marine-grade testing process before dispatch:

1. Hardware & Keypad Integrity: We check the front membrane keypad under magnification for pinholes or worn key domes, verifying IP65 front-face sealing.
2. Power & Diagnostic Bench Test: We put this on a Fluke power logger and apply 24VDC to verify clean boot-up cycles, backplanes, and LCD backlight contrast.
3. I/O Simulation Sweep: Using an automated signal rig, we actuate all digital inputs and trigger relay outputs to simulate real-world speed sensor feedback, pressure switches, and solenoid valve drivers.
4. ESD Shielding & Packaging: Cleared units are treated with anti-corrosion contact protection, sealed in anti-static ESD bags, and packed in heavy-duty shipping foam.

Field Engineer’s Pitfall Guide

• ❗ Verify Firmware Matching Before Swapping: Do not assume a standard off-the-shelf Siemens C7-613 unit will run your Westfalia D-10 separator. The 0005-4050-430 contains proprietary GEA Westfalia operational firmware—using a generic Siemens unit without Westfalia parameter files will result in a blank operating routine.
• ❗ Watch Solenoid Valve Inductive Kickback: Always verify that external suppression diodes/RC snubbers are intact on the 24VDC solenoid valve coils. Collapsing magnetic fields from old solenoid coils send inductive voltage spikes directly back through the output relays, frying the onboard driver transistors.
• ❗ Inspect Rear Terminal Block Retention: Ensure the screw-terminal connectors are locked down evenly. Marine engine vibration can back out loose screw terminals over time, causing intermittent 24V power drops that crash the microprocessor mid-cycle.

Intent-Driven FAQ

Q: Can I replace a GEA 0005-4050-430 with a standard Siemens 6ES7 C7-613 unit?

A: Physically they share the same hardware frame, but functionally no—unless you have the specialized GEA Westfalia software image. The 0005-4050-430 part number designates the complete module loaded with OEM separator control logic.

Q: Why is my 0005-4050-430 controller showing a blank screen on bootup?

A: First check input power across the 24VDC terminals. If power is clean, a blank screen usually points to an internal power supply failure or a degraded LCD backlight ribbon cable caused by heat and engine room vibration.

Q: Is it necessary to power down the entire purifier panel before replacing this controller?

A: Yes. Always isolate the main breaker to the separator control panel before removing terminal blocks or unmounting the controller to protect internal logic gates from short circuits.

Q: Do replacement units come pre-programmed with D-10 operating software?

A: Yes, our verified 0005-4050-430 modules come loaded with the native GEA Westfalia control firmware, ready to be mounted and configured for your specific separator model parameters.

Q: What warranty coverage applies to this module?

A: All New Surplus and fully reconditioned GEA 0005-4050-430 controllers come backed by a comprehensive 1-year functional replacement warranty.
