Galil DMC-4080 | High-Performance Multi-Axis Servo & Stepper Controller
Dynamic Product Introduction
Managing complex, multi-axis automation machinery with high throughput requirements demands an advanced motion controller capable of ultra-fast command processing and high-frequency loop updates. Honestly, the Galil Motion Control DMC-4080 solves this challenge directly by serving as a top-tier, 8-axis standalone controller within Galil’s high-performance Accelera family. This unit handles multi-axis coordinated linear/circular interpolation, advanced PID filter compensation, and complex trajectory profiling reliably without command lag or tracking drift (—though verifying your exact module suffixes like -C012 or -I000, DC power supply requirements, and encoder wiring beforehand is essential). Compared to legacy card-slot architectures, the Galil DMC-4080 delivers modern Ethernet connectivity, flexible mixed servo/stepper configurations, and robust industrial reliability.

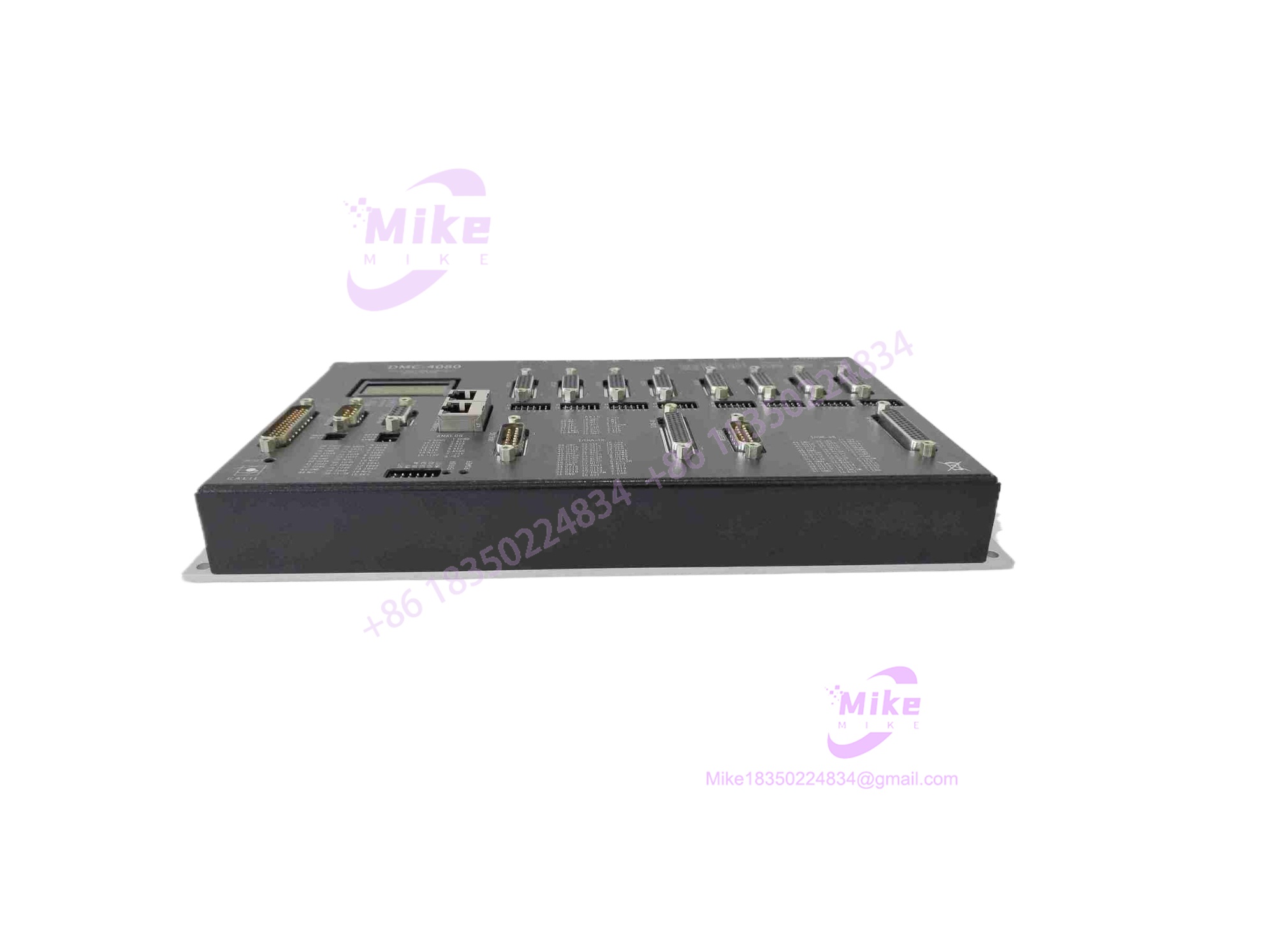

DMC-4080
Key Technical Specifications
| Specification | Parameter Value |
| Product Series | Galil DMC-4000 Accelera Motion Controller Line |
| Model Designation | DMC-4080 (8-Axis Standalone Controller Unit) |
| Axis Control Capacity | Up to 8 fully independent or coordinated axes (user-configurable for servo or stepper) |
| Processor Architecture | 5th-generation RISC-based processor with advanced DSP functions |
| Communication Interfaces | Dual 10/100 Base-T Ethernet ports with Auto-MDIX and dual RS-232 serial ports |
| Feedback & Encoder Limits | High-speed encoder inputs up to 22 MHz (servos); pulse outputs up to 6 MHz (steppers) |
| General Purpose I/O | 16 opto-isolated inputs, 16 opto-isolated outputs, and 8 uncommitted analog inputs (5-8 axis standard layout) |
| Power Requirements | 20–80 VDC single power source for controller logic/internal options |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring secondary-market multi-axis motion controllers requires thorough bench evaluation to ensure internal power supplies, microprocessors, optoisolated I/O channels, and communication ports remain uncompromised. For every inbound Galil DMC-4080 unit, our audit team logs serial numbers against global traceability ledgers, inspects terminal blocks and internal modular interconnect boards for thermal stress, and checks interface ports for electrostatic vulnerability.
Once cleared, the controller is mounted onto a dedicated Galil test bench. Technicians apply nominal 20–80 VDC power, verify Ethernet and serial communication link stability, test encoder pulse counting and analog command output channels across all 8 axes, and execute multi-axis diagnostic motion routines. The unit is then cleaned, fitted with anti-static packaging, and securely prepared for deployment.
The Field Engineer’s Pitfall Guide
❗ Power Supply Voltage Mismatch: Ensure the incoming DC power supply strictly matches the 20–80 VDC operational window; undervoltage can cause erratic processor reboots, while severe overvoltage will damage internal power regulation circuitry.
❗ Improper Grounding and Shielding: Failing to properly ground encoder shield drains and controller chassis to a clean earth ground can introduce electrical noise, resulting in position tracking errors or runaway fault trips.
❗ Incorrect Module Suffix Configuration: When sourcing replacement DMC-4080 units, always verify the exact sub-part option codes (such as communication and internal amplifier module configurations) to match your machine’s wiring harness and drive requirements.
Intent-Driven FAQ
- What is the primary function of the Galil ?It functions as an 8-axis high-performance motion controller designed to provide closed-loop position, velocity, and interpolation control for complex industrial automation systems.
- Can the control both servo and stepper motors?Yes, each of the 8 axes is user-configurable for either servo or stepper motor operation in any combination.
- What type of warranty covers verified surplus Galil controllers?All tested inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment bench test logs.
- How does the controller interface with a host PC or PLC?It communicates via standard 10/100 Base-T Ethernet ports or auxiliary RS-232 serial ports using Galil’s intuitive two-letter command language.
- How do I verify if a replacement unit has been bench-tested?Look for serialized QA certification labels, clean connector pins, and complete test documentation included with the hardware package.
