Galil DMC-1040 | ISA Bus Multi-Axis Servo & Stepper Controller
Dynamic Product Introduction
Maintaining legacy multi-axis motion control systems in specialized test stands and manufacturing machinery requires exact hardware compatibility to preserve custom motion programs and host software integration. Honestly, the Galil Motion Control DMC-1040 solves this challenge directly by serving as a powerful 4-axis motion controller card built on the robust DMC-1000 architecture. This board handles coordinated linear/circular interpolation, PID filter tuning, and precise trajectory generation reliably without tracking drift or command lag (—though verifying your exact host PC bus slot, optoisolated terminal breakout board, and encoder wiring beforehand is essential). Compared to modern PCI or Ethernet controllers, an authentic Galil DMC-1040 ensures seamless drop-in replacement for legacy industrial cells without requiring expensive software rewrites.

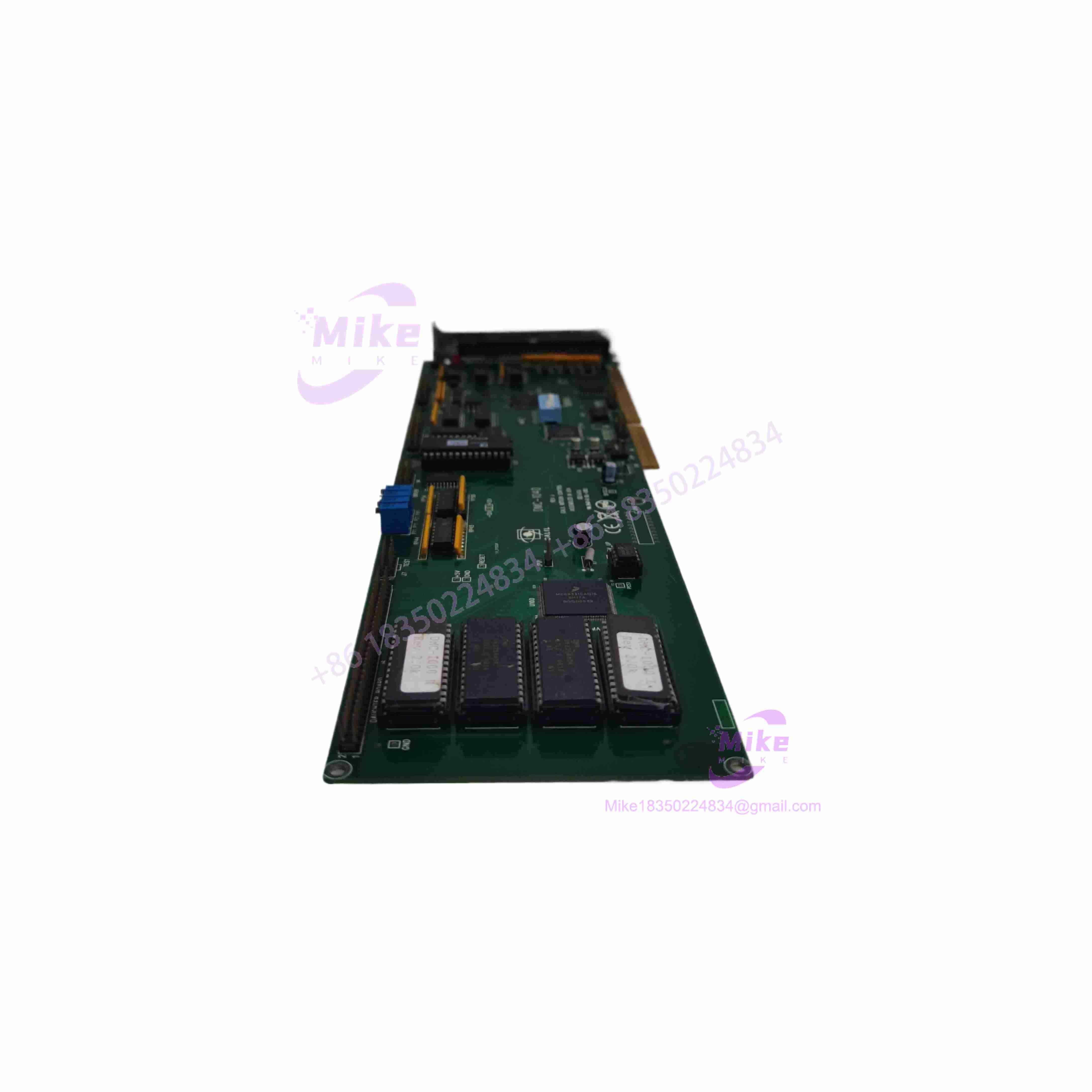

DMC-1040
Key Technical Specifications
| Specification | Parameter Value |
| Product Series | Galil DMC-1000 Motion Controller Line |
| Model Designation | DMC-1040 (4-Axis Motion Controller Board) |
| Axis Control Capacity | Up to 4 fully independent or coordinated axes (servo or stepper) |
| Processor Architecture | High-speed digital signal processor (DSP) core |
| Host Interface | ISA bus communication standard (with serial RS-232 support options) |
| Feedback & I/O | Quadrature encoder inputs, DAC analog outputs, and uncommitted digital I/O |
| Programming Language | Galil command language (mnemonic instruction set) |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring secondary-market legacy motion controller boards requires rigorous verification to ensure internal microprocessors, analog-to-digital converters, and gold-plated edge connector fingers remain uncompromised by age or storage conditions. For every inbound Galil DMC-1040 unit, our audit team logs serial numbers against global traceability ledgers, inspects gold edge fingers for oxidation or wear, and checks internal printed circuit boards for thermal stress or electrostatic vulnerability.
Once cleared, the controller is mounted onto a dedicated Galil test bench utilizing an industrial backplane. Technicians apply nominal power, verify communication responsiveness across serial and bus ports, test encoder pulse counting and analog command output channels across all 4 axes, and execute diagnostic motion routines. The unit is then cleaned, fitted with anti-static packaging, and securely prepared for deployment.
The Field Engineer’s Pitfall Guide
❗ ISA Bus Compatibility: The DMC-1040 relies on an ISA bus architecture; attempting to install this card into modern motherboards lacking legacy ISA slots requires specialized industrial backplanes or PC adapters.
❗ Edge Connector Contamination: Inserting cards with oxidized or dust-covered edge fingers into system slots can cause intermittent communication dropouts; always clean pins gently before installation.
❗ Improper Encoder Grounding: Failing to properly ground encoder shield drains to the designated chassis terminal can introduce electrical noise, resulting in position tracking errors or runaway conditions.
Intent-Driven FAQ
- What is the primary function of the Galil ?
It functions as a 4-axis motion controller board designed to provide closed-loop position and velocity control for servo or stepper motor systems.
- What host communication bus does the use?
It is engineered primarily for the ISA bus architecture, supported by auxiliary serial communication ports.
- What type of warranty covers verified surplus Galil controllers?
All tested inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment bench test logs.
- Can I replace a damaged without re-programming?
Yes, provided you upload or transfer your original Galil command motion program and configuration parameters to the replacement board.
- How do I verify if a replacement unit has been bench-tested?
Look for serialized QA certification labels, clean connector pins, and complete test documentation included with the hardware package.
