FANUC A16B-3200-0600 | R-30iA Controller Motherboard, In Stock

Description

FANUC A16B-3200-0600 | R-30iA Controller Motherboard, In Stock

Architect’s Product Breakdown

The A16B-3200-0600 acts as the computational nerve center inside FANUC R-30iA robot controller cabinets. Hosting the primary processor, system memory slots, and bus controllers, this motherboard executes the real-time operating system and coordinates multi-axis motion commands dispatched to the servo drives via high-speed serial links. Its complex multi-layer PCB design requires pristine electrical environments and stable low-voltage rails to prevent data corruption during high-speed trajectory calculations.

Deploying or replacing a master CPU board demands absolute adherence to static-discharge protocols and precise software configuration management. Because software parameters, mastering data, and robot-specific options are tied to the system configuration, a straight hardware swap without a proper SRAM backup or memory restore leaves the controller non-functional. When handling this board, technicians must also inspect the backup battery voltage to ensure robot position data and user programs are not wiped during power-down cycles.

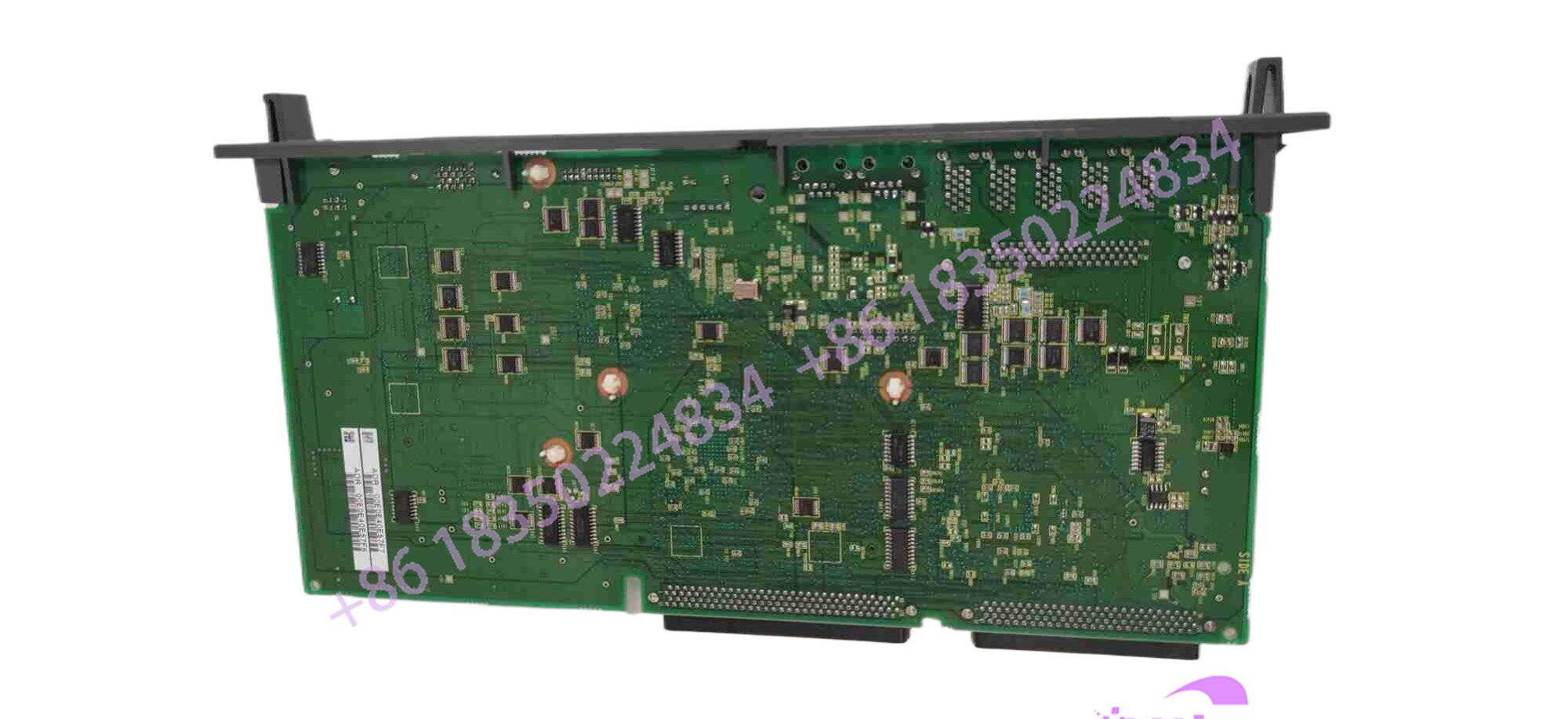

A16B-3200-0600

Key Technical Specifications

Field Engineer’s Pitfall Guide

• Static Discharge and Grounding Failures: Warning: The surface-mount processors and memory chips on this motherboard are exceptionally sensitive to electrostatic discharge (ESD). Always wear a grounded wrist strap and handle the PCB strictly by its edges or extraction handles; touching gold edge fingers or component traces instantly destroys the logic gates.
• Lost SRAM Data During Replacement: Do not swap this board without a complete backup. I have seen maintenance teams lose entire plant cell configurations, custom TP programs, and zero-position mastering data because they pulled the old CPU without verifying that the SRAM backup battery was healthy and a memory backup (FROM/SRAM save) was successfully performed.
• Backplane Pin Alignment Mishaps: Never force the board into the rack slots. Aligning the card incorrectly bends fragile backplane pins, creating phantom communication faults and short circuits that can damage secondary I/O cards.

QA & Testing SOP (Transparency)

• Visual & Component Audit: Incoming motherboards undergo microscopic inspection for cracked traces, solder joint micro-fractures, bent connector pins, and genuine OEM markings.
• Static Bench & Continuity Check: Technicians measure resistance values across power rails and verify that decoupling capacitors and bus buffers are free of short circuits.
• Live Test Rig Simulation: The CPU board is mounted into a verified R-30iA test rack, powered up under controlled conditions, and subjected to a full boot-sequence check.
• Diagnostic Stress Run: The board undergoes an extensive diagnostic script execution to verify memory integrity, communication handshaking ports, and processor clock stability before anti-static sealing.

Technical FAQ

Can I use this A16B-3200-0600 motherboard in a newer R-30iB controller?

No. This specific CPU board is architecturally designed exclusively for the R-30iA control generation. Pinouts, bus topologies, and software versions differ fundamentally from R-30iB series hardware.

What causes a ‘SRVO-Code’ or watchdog error immediately after installing a replacement CPU?

This typically indicates a firmware version mismatch between the main CPU board and the attached servo/I/O modules, or corrupted system files. Ensure the software loaded matches the exact robot model specification.

Is the SRAM memory data stored directly on this board?

While the motherboard houses memory chips, system parameters and user programs rely on the SRAM module and the backup battery system. Always ensure the battery unit is functioning properly during maintenance intervals.

Are component-level repairs recommended for this motherboard?

Due to the multi-layer surface-mount construction and high-density chip architecture, component-level board soldering by field personnel is strongly discouraged. Full board replacement or factory-certified depot exchange ensures reliable long-term operation.
