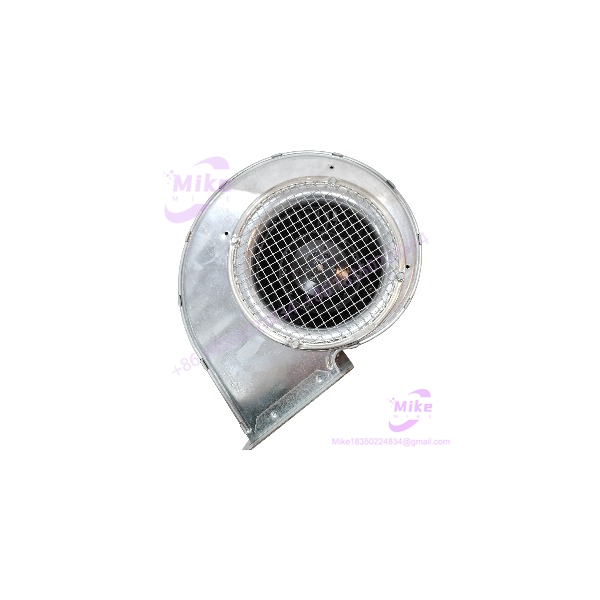

ebm-papst G2E140-PI51-09 | 230V AC Centrifugal Fan
Dynamic Product Introduction
The ebm-papst G2E140-PI51-09 is the type of centrifugal blower typically selected when cabinet cooling requires controlled airflow rather than simply moving air around an enclosure. Its forward-curved, single-inlet design uses a scroll-style housing to direct air into a defined cooling path, making the complete mechanical installation just as important as the electrical rating.
The exact model uses an M2E068-DF single-phase motor and is rated for 230 VAC at both 50 Hz and 60 Hz. The manufacturer specifies 180 W and 0.80 A at 50 Hz, increasing to 225 W and 0.99 A at 60 Hz. Rated speed is 2,200 RPM at 50 Hz and 2,100 RPM at 60 Hz.
That difference between frequency ratings deserves attention during replacement. A procurement team that verifies only “230 VAC” has not completed the compatibility check. Frequency, current, power, ambient temperature, mounting geometry, airflow direction, and capacitor specification all belong in the replacement record.
The G2E140-PI51-09 is also documented for S1 operation, with ball bearings and a thermal overload protector. Its published construction includes a galvanized sheet-steel housing and painted sheet-steel impeller.
This model has also been marketed as a replacement cooling fan for ABB drive equipment. That application association can be useful when identifying an installed spare, but the exact ebm-papst nameplate should remain the primary identification standard.
G2E140-PI51-09
Key Technical Specifications
- Manufacturer: ebm-papst
- Part Number: G2E140-PI51-09
- Product Type: AC centrifugal fan
- Airflow Configuration: Forward-curved, single-intake, with housing/flange
- Motor: M2E068-DF
- Phase: 1~
- Nominal Voltage: 230 VAC
- Frequency: 50 / 60 Hz
- Power Consumption: 180 W / 225 W
- Current Draw: 0.80 A / 0.99 A
- Rated Speed: 2,200 / 2,100 RPM
- Motor Capacitor: 4 µF
- Capacitor Voltage: 450 V
- Impeller Diameter: 140 mm
- Bearing: Ball bearing
- Protection Rating: IP44, dependent on installation position
- Insulation Class: B
- Operating Mode: S1
- Motor Protection: Thermal overload protector (TOP)
- Minimum Ambient Temperature: -25°C
- Maximum Ambient Temperature: 60°C at 50 Hz / 40°C at 60 Hz
- Rotation: Clockwise when viewed toward the rotor
- Housing: Galvanized sheet steel
- Impeller: Painted sheet steel
- Guard Grille: Hot-dip galvanized, spot-welded net
- Electrical Connection: Plug connection
- Approximate Weight: 3.6 kg
The manufacturer documentation is the preferred reference for the electrical ratings and motor data.
Global Sourcing & Live-Test SOP
1. Nameplate verification
Before accepting the unit into stock, verify the complete designation:
- G2E140-PI51-09
- ebm-papst identification
- Motor designation M2E068-DF where visible
- 230 VAC rating
- 50/60 Hz rating
- Current and power markings
- Manufacturing or revision information where available
Do not substitute a similar-looking G2E-series blower based only on frame size.
2. Mechanical inspection
With power disconnected, rotate the impeller by hand.
Check for:
- Bearing roughness
- Scraping against the housing
- Excessive shaft play
- Damaged blades
- Bent housing
- Damaged mounting points
- Corrosion
- Foreign material inside the scroll
The 140 mm impeller designation does not, by itself, prove mechanical interchangeability.
3. Electrical inspection
Confirm that the available supply is appropriate for the specific operating frequency.
At 50 Hz, the published rating is 180 W and 0.80 A. At 60 Hz, it is 225 W and 0.99 A. The corresponding maximum ambient temperature also changes from 60°C to 40°C.
Protective-earth continuity should be checked as part of the receiving or maintenance procedure.
4. Capacitor verification
The specified motor capacitor is 4 µF / 450 V. When servicing the motor, do not replace it with an arbitrary capacitor having the same physical dimensions. Match the required capacitance and voltage class.
5. Controlled live test
After mechanical and electrical checks, verify:
- Correct startup
- Correct rotation
- Smooth acceleration
- Stable current
- Normal airflow
- No abnormal bearing noise
- No impeller contact
- Acceptable vibration
- No unexpected thermal behavior
A clamp meter provides a practical way to compare operating current against the applicable 50 Hz or 60 Hz rating.
6. 24-hour heat run
For a critical drive-cooling spare, operate the fan continuously under representative conditions for 24 hours where practical. Monitor current, vibration, bearing noise, housing temperature, and airflow stability.
A fan that spins on the bench has passed only the most basic test. The useful acceptance criterion is stable operation after the motor and bearings reach normal temperature.
Field Engineer’s Pitfall Guide
1. Do not select a replacement from voltage and diameter alone.
A 230 VAC centrifugal fan with a nominally similar impeller can still have a different pressure-flow characteristic, housing geometry, discharge orientation, or mounting arrangement.
This is a common cabinet-maintenance failure: the replacement fan runs normally, but the electronics run hotter because the blower cannot provide the required airflow against the installed filter and duct resistance.
2. Account for the actual line frequency.
The G2E140-PI51-09 has different electrical and thermal ratings at 50 Hz and 60 Hz. The manufacturer specifies 180 W / 0.80 A at 50 Hz versus 225 W / 0.99 A at 60 Hz.
Do not copy the 50 Hz figures into a 60 Hz cabinet power calculation.
3. Verify airflow direction and rotation after installation.
The specified rotation is clockwise when viewed toward the rotor. Installation should also reproduce the original airflow path.
In field service, this is easy to overlook after a fan replacement. The motor may sound completely normal while the air is moving in the wrong direction through the heat exchanger, filter, or drive cabinet.
Intent-Driven FAQ
What is the ebm-papst ?
It is a forward-curved, single-inlet AC centrifugal fan with housing/flange, using an M2E068-DF single-phase motor. The rated supply is 230 VAC.
What are the 50 Hz and 60 Hz ratings?
At 50 Hz, the published values are 180 W, 0.80 A, and 2,200 RPM. At 60 Hz, they are 225 W, 0.99 A, and 2,100 RPM.
What capacitor does use?
The published specification calls for a 4 µF, 450 V motor capacitor.
Does the fan have thermal protection?
Yes. The manufacturer specifies a thermal overload protector (TOP) with basic insulation.
What is the ambient temperature range?
The published minimum ambient temperature is -25°C. Maximum ambient temperature is 60°C at 50 Hz and 40°C at 60 Hz.
Is this suitable for continuous operation?
Yes. The manufacturer specifies S1 operating mode. The actual installation must still remain within the specified electrical, thermal, mechanical, and environmental limits.
Can I replace it with any 140 mm, 230 VAC centrifugal fan?
No. Verify the complete airflow system. Mounting geometry, scroll orientation, rotation, pressure-flow performance, electrical current, capacitor, and operating frequency all need to match the application.
Procurement Verdict
The is a specific industrial AC centrifugal blower, not a generic 140 mm replacement fan. Its 230 VAC single-phase M2E068-DF motor, 50/60 Hz ratings, 4 µF capacitor, S1 duty, ball bearings, IP44 protection, and thermal overload protection define the actual replacement requirements.
For procurement, keep the full suffix intact. Match the supply frequency and electrical load first, then confirm the physical installation, airflow direction, rotation, and capacitor. For ABB drive or other power-electronics cooling applications, compare the complete installed airflow path rather than approving a replacement simply because the fan starts and fits the mounting space.
