Control Chief 90-20-0-003 | Industrial Radio Remote Logic Module
Dynamic Product Introduction
Radio communication dropouts, erratic relay chatter, and failure-to-respond errors on overhead cranes or industrial remote systems typically stem from degrading receiver logic boards or aging RF tuning circuits. When an older Control Chief remote system starts dropping connection links or intermittently refusing hoist commands, replacing handheld transmitters rarely fixes underlying base receiver degradation. Deploying the Control Chief 90-20-0-003 resolves this operational bottleneck directly, swapping in an OEM-spec control board engineered to restore reliable, interference-free wireless machine command.
In material handling maintenance scenarios, sliding in this exact replacement circuit card re-establishes safe crane operation without forcing an expensive, full-scale radio control system retrofit. (Though verifying frequency channel matching, dipswitch address settings, and main line contactor wiring prior to energization remains essential.) It handles harsh industrial manufacturing environments cleanly, keeping heavy overhead material handling assets moving safely.

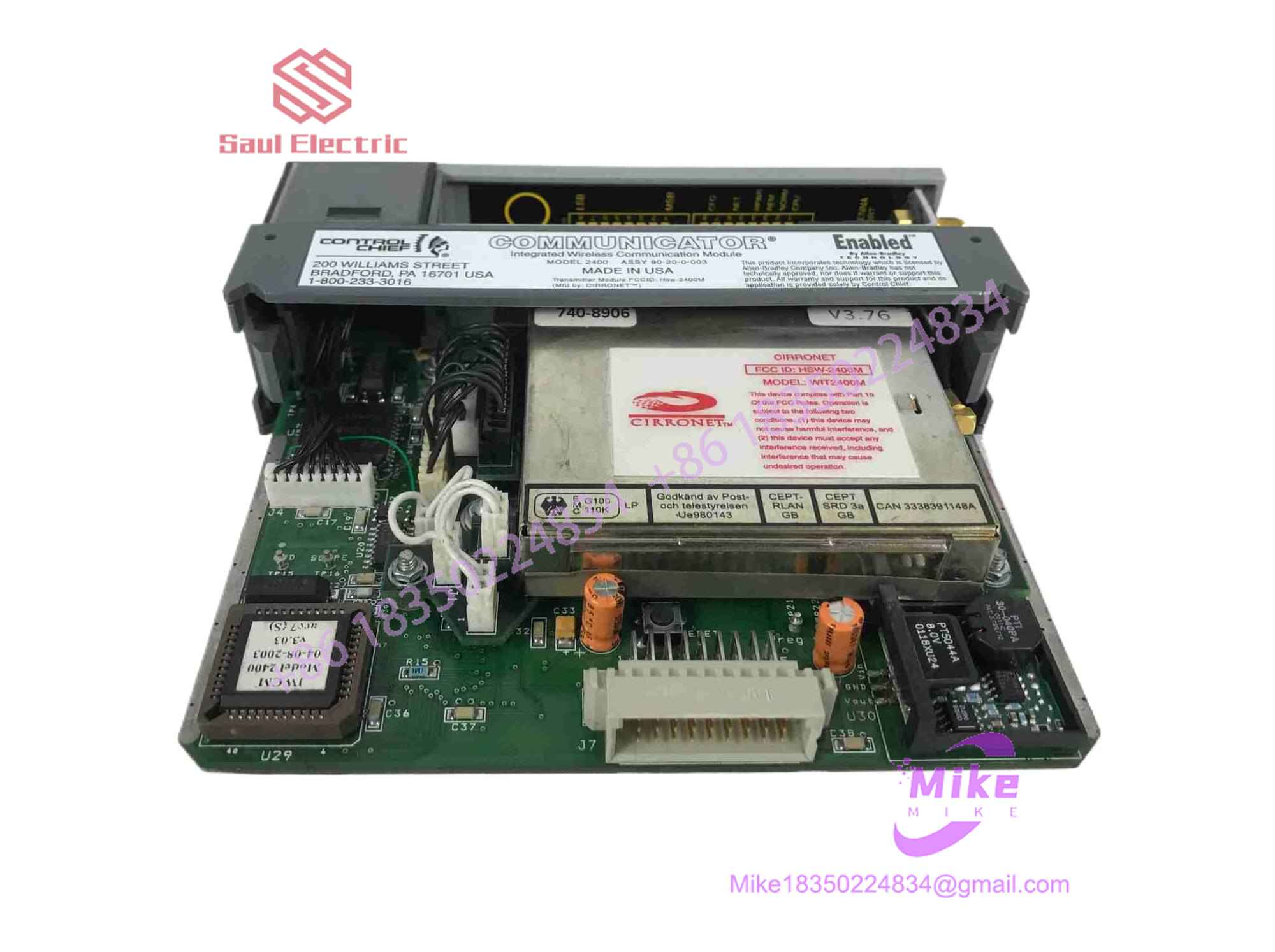

90-20-0-003
Key Technical Specifications
| Technical Parameter | Specification Detail |
| Device Category | Wireless Radio Remote Receiver / Logic Control PCB |
| Series Compatibility | Control Chief Industrial Crane Control Systems |
| Signal Processing | High-reliability RF decoding and relay driver logic |
| Operating Environment | Industrial crane control enclosure / Receiver chassis |
| Ambient Operating Temp | -20^\circC to 60^\circC |
| Enclosure Type | Modular industrial circuit card with secure mounting standoffs |
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring safety-critical industrial wireless control hardware demands rigorous bench validation to guarantee absolute radio frequency stability and relay safety compliance.
- Inbound Verification: Incoming receiver boards undergo comprehensive serial tracking, OEM watermark verification, and anti-counterfeit batch inspections against historical production ledgers.
- Live Simulation: Qualified cards are mounted onto a designated test fixture paired with verified transmitters to evaluate RF signal reception, address decoding, and output relay actuation.
- Diagnostics: Technicians execute continuous transmission stress sweeps, power-rail isolation checks, and response time verifications to isolate latent component failure risks.
- Final Prep: Circuit traces and edge connectors are inspected and cleaned, and the module is sealed inside heavy-duty multi-layer anti-static barrier packaging.
The Field Engineer’s Pitfall Guide
❗ Frequency and Address Mismatches: Installing a replacement receiver board without matching the dipswitch address or frequency channel settings to your handheld transmitter will prevent the crane from responding or create dangerous cross-control risks. Always verify address configuration prior to testing.
❗ Unfiltered Electrical Noise: Operating crane receiver electronics in close proximity to high-voltage motor drives without proper cabinet grounding can induce severe noise on control lines, causing erratic behavior. Ensure solid earth bonding.
❗ Hot-Swapping Under Power: Replacing a control board inside an energized receiver cabinet risks short-circuiting low-voltage logic rails or damaging sensitive RF components. Always drop main control power completely prior to service.
Intent-Driven FAQ
Will this Control Chief receiver board integrate directly into my existing crane enclosure?
Yes, the 90-20-0-003 is designed to mount directly into standard Control Chief system enclosures, matching legacy physical dimensions and terminal pinouts.
Are these legacy remote control circuit cards factory sealed or certified surplus stock?
We maintain strict inventories of both factory-sealed surplus hardware and fully recertified, bench-tested units. Each listing explicitly details the precise condition tier to match your facility safety rules.
Do I need to re-configure address switches when installing a replacement board?
Yes, copying the exact dipswitch settings or address jumpers from your original failed unit to the replacement board is mandatory to ensure proper communication with your existing transmitter.
What kind of warranty coverage is included with this replacement part?
Every unit is backed by our comprehensive operational warranty, covering electrical component health, RF decoding stability, and output relay reliability from day one.
