Cameron AAP3798102-00130 | Factory Sealed Turbo-Air Control Board
Dynamic Product Introduction
Managing a train of multi-stage centrifugal compressors requires a centralized processing node capable of handling heavy math, rapid data logging, and seamless network communication without stuttering. The Cameron AAP3798102-00130 serves as the primary Maestro™ Universal Controller engine, driving the user-friendly Windows CE-based interface while tying together the plant’s pressure loops and safety interlocks.
Honestly, trying to troubleshoot a failing universal controller on a live Turbo-Air line will test any automation engineer’s patience—especially if the onboard configuration files haven’t been mirrored to an external USB drive recently. This module acts as the definitive drop-in replacement when aging display-processors start throwing unrecoverable kernel errors or drop their local configuration memory.

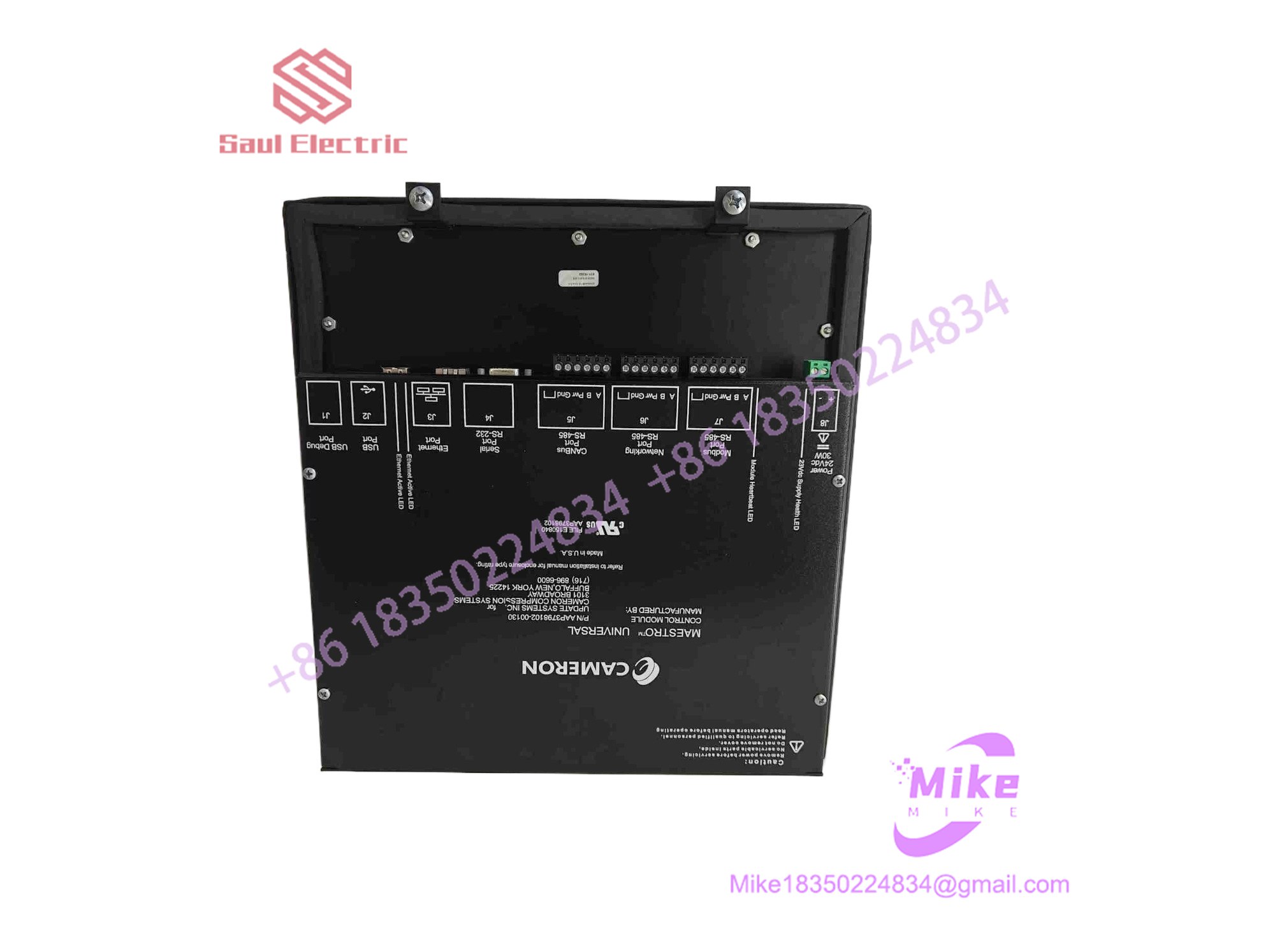

AAP3798102-00130
Key Technical Specifications
| Parameter | Specification Detail |
| Operating System | Windows CE Core 5.0 Environment |
| Display Interface | 10-inch 640×480 Color LCD with Keypad |
| Digital Inputs / Outputs | 10 DI (24VDC) / 11 DO (24VDC) |
| Analog Inputs / Outputs | 13 AI (4-20mA) / 4 AO (4-20mA) |
| Temperature Inputs | 10 RTD Inputs (100-ohm platinum) |
| Input Power Range | 90 to 260 VAC (50/60 Hz) |
| Communication Ports | Ethernet (Modbus/TCP, Web Server), RS-485 |
| Data Logging Port | USB Port for configuration backup and firmware updates |
Global Sourcing & Live-Test SOP
Sourcing legacy compressor brain modules requires verifying both the operating system environment and the integrity of the integrated I/O terminal banks. Our testing protocol is built to eliminate site surprises:
- Inbound Verification: We audit the module against Cameron/Ingersoll Rand assembly logs, checking PCB revision numbers and confirming the presence of authentic firmware build tags (such as v2.73 variants).
- Live Simulation: Units are mounted on a dedicated Maestro™ Universal test rig. We boot up the Windows CE image, verify that the 10-inch color display drives clean backlighting, and test local touch/keypad responsiveness.
- Diagnostics: We simulate inputs across all 13 analog loops, 10 RTD channels, and discrete lines to ensure the onboard A/D converters read within strict linear tolerances. We also verify web server accessibility and USB configuration read/write cycles.
- Final Prep: After passing a 24-hour thermal soak under power, the unit’s flash configuration is cleared to factory-neutral state, and it is sealed in heavy electrostatic shielding.
The Field Engineer’s Pitfall Guide
❗ Battery-Backed SRAM Loss: The unit relies on an internal battery to maintain volatile cache and operational flags during power loss. If the battery has degraded on a surplus unit sitting in a warehouse, you will face a blank config upon boot—always back up parameters via the USB port immediately after commissioning.
❗ Firmware Build Discrepancies: Swapping a controller running application version v2.7 into a system expecting an older or radically different revision can cause communication lockouts with peripheral expansion modules. Verify your software build string before installation.
❗ Inadequate Power Conditioning: These units accept a wide AC input range (90–260 VAC), but they are sensitive to severe electrical noise from adjacent variable frequency drives (VFDs). I’ve tracked down random system reboots to unshielded incoming power lines running parallel to high-voltage motor feeds.
Intent-Driven FAQ
Can I back up my compressor configuration using the USB port?
Yes. The AAP3798102-00130 features a built-in USB port specifically designed for importing and exporting model-specific configurations, event histories, and system software updates.
Does this module replace older Maestro Legend or Vantage controllers?
Yes, the Maestro Universal series was engineered to modernize and replace older legacy hardware platforms, though migration may require checking your existing physical mounting cutouts and terminal assignments.
Is the controller capable of remote web monitoring?
Yes. It includes a built-in intranet web server that allows authorized engineers to review operational status, trends, and alarm/trip details remotely via an Ethernet browser connection.
What causes the display to remain dark while the compressor runs?
If the compressor is running normally via hardwired safety chains but the HMI screen is black, the internal power supply board or the backlight inverter within the unit has likely failed, requiring module repair or replacement.
What warranty is provided with surplus AAP3798102-00130 units?
Every unit we supply is backed by a comprehensive 12-month operational warranty covering processor stability, I/O accuracy, and display functionality.
