BUM61-2030-54-B | Baumuller Servo Drive Spec Sheet

Description

BUM61-2030-54-B | Baumuller Servo Drive Spec Sheet

Product Introduction

When a high-inertia printing press throws an overvoltage fault mid-run, tracing the failure back to a blown output stage on the inverter rack tests any technician’s patience. The BUM61-2030-54-B is not a generic frequency converter; it is a high-performance multi-axis servo drive engineered to handle aggressive acceleration curves without tripping on thermal overload.

Mounted directly into the central control cabinet bus rack, the module translates complex motion profiles into clean, synchronized motor currents. It requires rigid adherence to EMC shielding guidelines—though your wiring layout will dictate how well it handles high-frequency noise—and delivers the deterministic response times needed for tight web-handling and CNC applications.

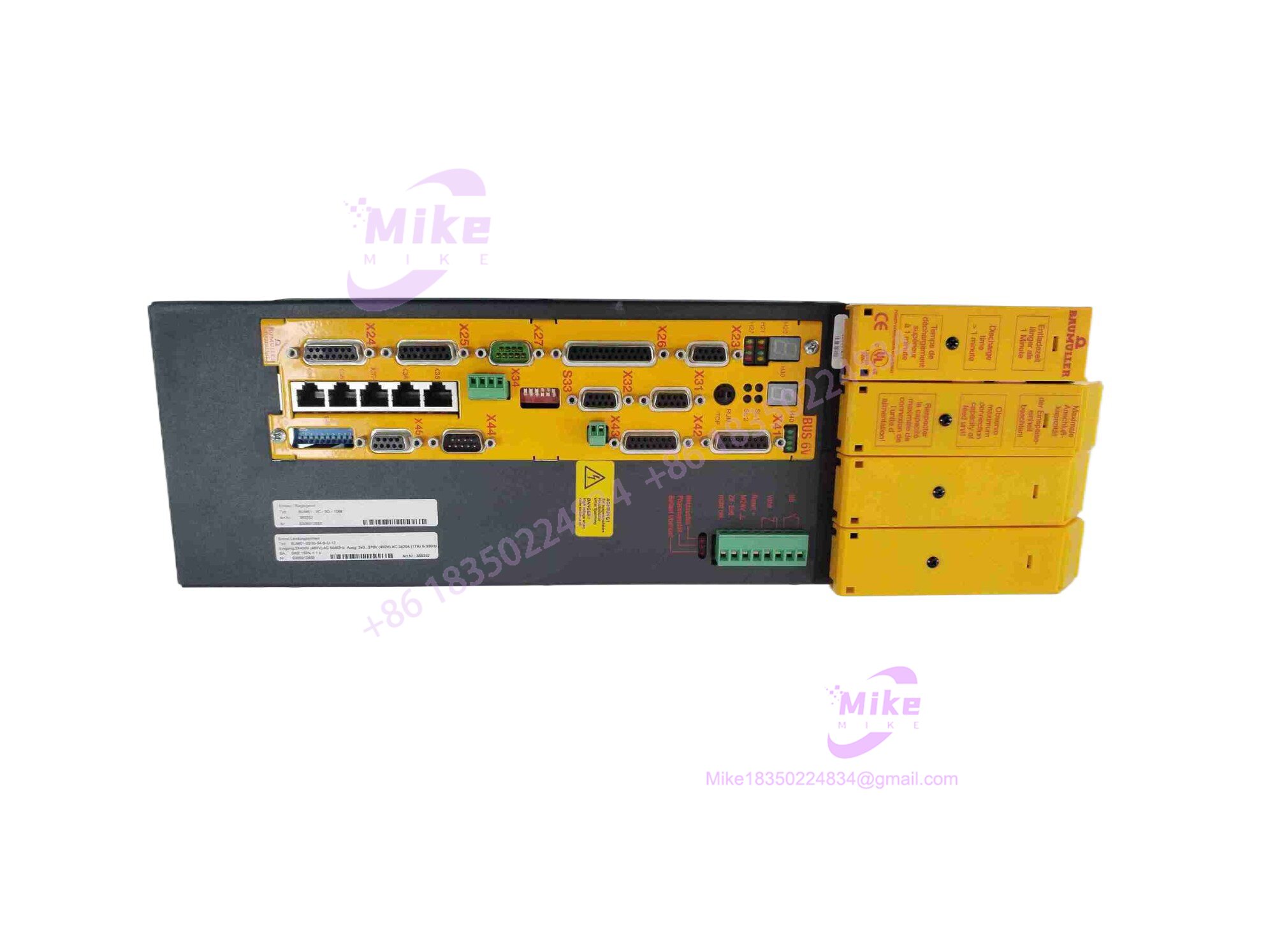

BUM61-2030-54-B

Key Technical Specifications

Application Scenarios & Pain Points

• High-Speed Metal Stamping: Chronic electrical noise used to bleed into neighboring analog sensors until technicians isolated the drive chassis. Integrating the BUM61-2030-54-B with proper braided grounding straps cleared up erratic feedback loops instantly.
• Multi-Axis Converting Lines: Without stable thermal management, older drives would derate during multi-shift runs. This hardware maintains steady output currents even when cabinet temperatures push historical limits.
• Retrofitting Legacy Automation: A packaging plant replaced a failed legacy unit with the BUM61-2030-54-B, avoiding a complete cabinet redesign and saving weeks of costly facility downtime.

QA & Live Testing SOP (Trust Signal)

Surplus electronics demand total verification before installation. Every incoming BUM61-2030-54-B goes through a strict multi-point testing protocol:

1. Visual & Optical Inspection: We check internal electrolytic capacitors for bulging, examine printed circuit boards for thermal stress, and verify all factory connector pins.
2. Dynamic Bench Verification: The module is mounted to a live test rack, connected to a dynamometer load, and driven through full acceleration and braking cycles to test IGBT switching health.
3. Thermal Imaging & ESD Packaging: Units undergo a 2-hour thermal scan under load to detect hotspots, followed by sealing in heavy-duty antistatic shielding bags.

Field Engineer’s Pitfall Guide

• ❗ DC Bus Pre-Charge Failures: Never slam main power onto a cold BUM61-2030-54-B without verifying the pre-charge resistor circuit; bypassing this risks welding the main contactors and destroying the input rectifiers.
• ❗ Shielding Ground Gaps: Failing to terminate motor cable shields 360 degrees at the EMC clamp plate will inject massive high-frequency noise into your low-voltage encoder lines.
• ❗ Firmware Parameter Mismatches: Swapping units without backing up the drive parameters via the service software will result in immediate velocity control faults upon startup.

Intent-Driven FAQ

Can I replace an older revision drive directly with the ?

Yes, pinout and physical dimensions match standard legacy configurations, provided your rack backplane power supply can support the nominal current draw.

Is this unit brand new or used?

This inventory consists of verified surplus—un-installed factory backup stock preserved in climate-controlled storage facilities.

What causes an overcurrent trip on this specific drive module?

Usually, it points to a shorted motor winding, degraded cable insulation, or an overly aggressive acceleration ramp parameter set in the controller software.

Do I need specialized software to adjust parameters?

Yes, configuration adjustments require the manufacturer’s specific engineering software interface and a matching communication cable.

What warranty covers this surplus hardware?

Every includes a standard 1-year functional replacement warranty covering any operational defects.
