AMETEK DCPF1-120-15-01 (HDR Power Systems) | 120VAC / 15A DC Power Controller

Description

AMETEK DCPF1-120-15-01 (HDR Power Systems) | 120VAC / 15A DC Power Controller

Dynamic Product Introduction

Replacing high-reliability power controllers in thermal processing or industrial heating loops requires robust hardware capable of handling precise phase control without operational drift. Honestly, the AMETEK / HDR DCPF1-120-15-01 solves this challenge directly by delivering native single-phase SCR power regulation engineered specifically for demanding industrial environments. This unit manages smooth DC current output conversion from standard AC line inputs, eliminating the mechanical wear of traditional contactors (—though verifying your exact line voltage, current rating, and command signal type beforehand is vital). Compared to generic third-party power blocks, the AMETEK DCPF1 series preserves system-level thermal regulation accuracy, preventing costly batch deviations or process downtime during production cycles.

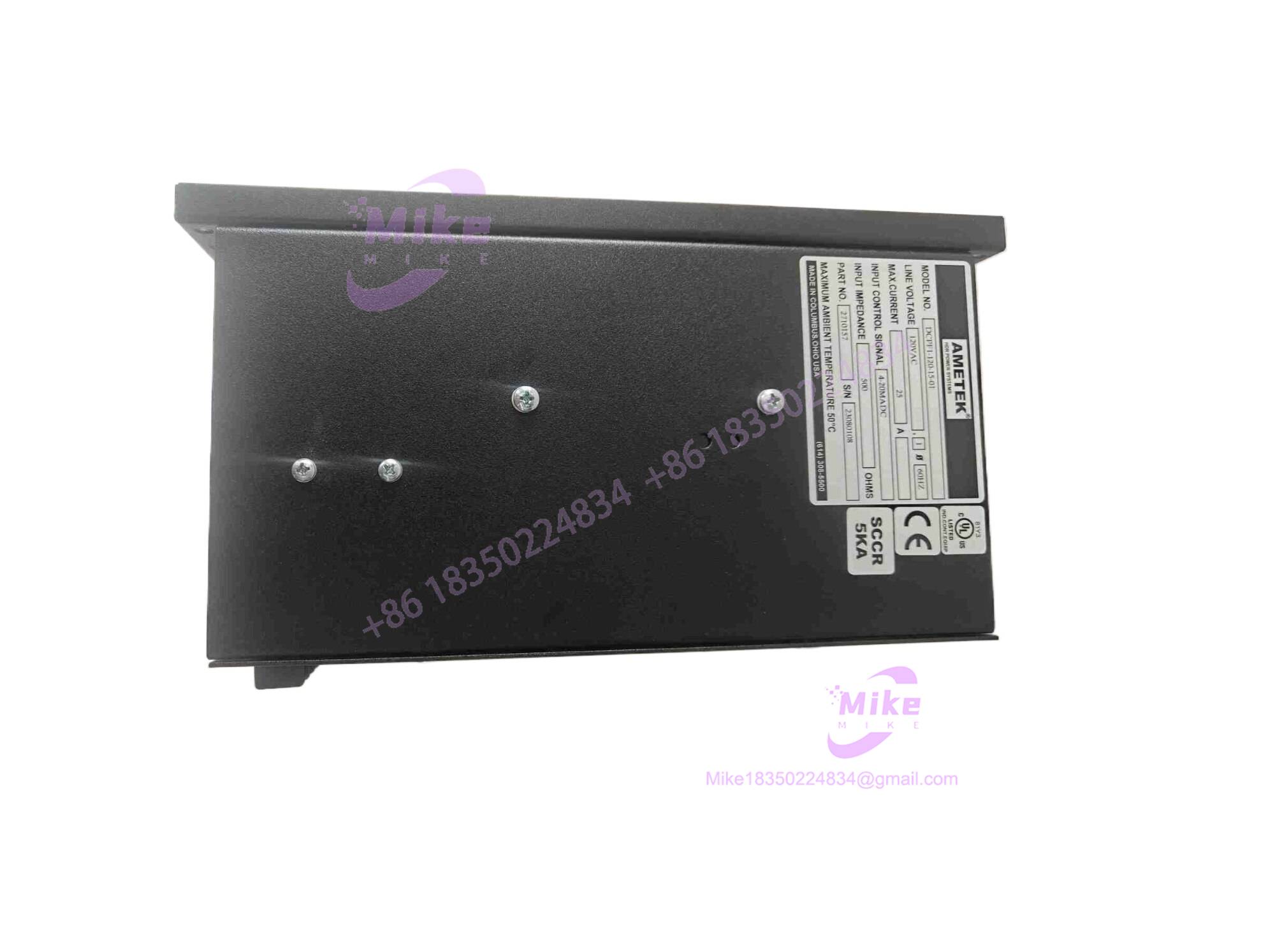

DCPF1-120-15-01

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Acquiring secondary-market SCR power controllers requires stringent electronic testing to ensure internal semiconductor junctions, trigger circuits, and isolation barriers haven’t suffered from thermal fatigue or voltage spikes. For every inbound AMETEK DCPF1-120-15-01 unit, our audit team logs serial numbers against global OEM traceability ledgers and inspects heavy-duty power terminals and heat sink surfaces for oxidation or mechanical wear.

Once cleared, the unit is mounted onto an active resistive-load test rig. Technicians apply nominal 120 VAC line voltage, inject variable command signals, verify phase-angle firing linearity across the output span, and run a 24-hour thermal burn-in cycle under load. The unit is then cleaned, fitted with protective terminal covers, and sealed inside an anti-static moisture-barrier bag.

The Field Engineer’s Pitfall Guide

❗ Line Voltage & Shock Hazards: Servicing high-voltage power connections while the upstream breaker is energized exposes technicians to severe electrical shock and can short internal semiconductor chips. Always drop main power upstream before servicing.

❗ Inadequate Heat Dissipation: Mounting the controller in a closed panel without accounting for natural convection airflow and vertical spacing clearances can cause thermal overload and premature SCR failure.

❗ Omission of Fast-Acting Fusing: Operating the controller without recommended semiconductor (SCR) fuses during a downstream load fault can permanently destroy internal switching elements. Always verify proper external fusing is installed.

Intent-Driven FAQ

• Does the AMETEK -120-15-01 require an external heat sink?

  No, the unit features an integrated, factory-optimized heat sink design intended for standard industrial back-panel or enclosure mounting.

• What type of command input signals are accepted by the series?

  The unit accepts standard industrial voltage and current command signals (such as 4-20 mA) or a remote potentiometer input, with opto-isolation on standard current loops.

• What type of warranty covers surplus AMETEK power controllers?

  Verified secondary-market inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment load-test and thermal verification logs.

• Can I repair internal component faults on this SCR controller myself?

  Component-level repair is strongly discouraged due to specialized internal semiconductor layouts and safety isolation barriers; always rely on certified replacements.

• How do I verify if a replacement unit has been bench-tested?

  Look for serialized QA verification stickers, clean unmarred power screw terminals, and accompanying test reports included in the packaging.
