Alcatel-Lucent M10-1GB-SFP-B | Gigabit Ethernet MDA
Dynamic Product Introduction
When a carrier Ethernet interface card fails in a legacy 7450 ESS or 7750 SR deployment, replacing it with a generic Gigabit Ethernet adapter is not a practical option. The replacement must fit the platform’s MDA architecture, match the supported hardware configuration, and operate under the installed network operating system.
The Alcatel-Lucent M10-1GB-SFP-B is a Revision B, 10-port Ethernet MDA designed for 10/100/1000 Mbps SFP-based connectivity. Its ten interfaces allow network operators to aggregate multiple Ethernet links through a single modular adapter (provided the chassis, IOM, and installed software support the configuration). The OEM part number associated with this model is 3HE01616AA.
For operators maintaining established Nokia/Alcatel-Lucent infrastructure, the M10-1GB-SFP-B offers a replacement path that may avoid a broader hardware migration. It does not, however, increase the installed system’s switching capacity or guarantee better throughput than the original adapter. Actual forwarding performance depends on the host platform, IOM architecture, software release, traffic profile, and configured services.

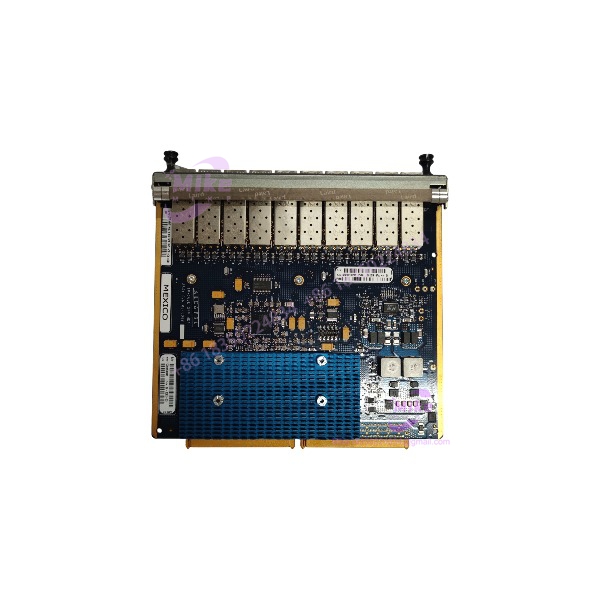

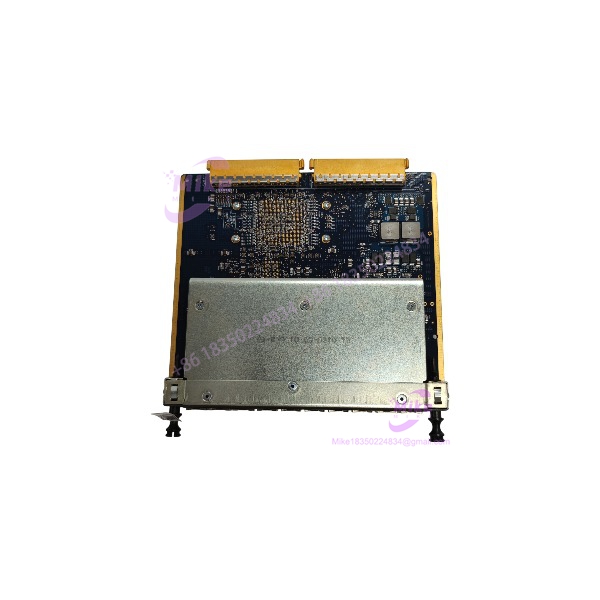

M10-1GB-SFP-B
Key Technical Specifications
- Manufacturer: Alcatel-Lucent / Nokia
- Model: M10-1GB-SFP-B
- OEM Part Number: 3HE01616AA
- Product Type: Media Dependent Adapter (MDA), Revision B
- Interface Count: 10 Ethernet SFP ports
- Ethernet Speed: 10/100/1000 Mbps per port, subject to supported optics and configuration
- Optical Interface: SFP; transceiver type must match the link requirements
- Supported Platform Family: 7450 ESS / 7750 SR, subject to platform and software compatibility
- Host Interface: Platform-specific MDA/IOM connection
- Network Function: Modular Ethernet connectivity for carrier and service-provider networking
- Software Compatibility: Verify the installed TiMOS release and supported MDA configuration
- Condition Options: New old stock, used, or refurbished; confirm actual inventory condition and warranty
The OEM software documentation identifies the M10-1GB-SFP-B as a supported MDA type, and hardware references associate the model with a 10-port Gigabit Ethernet SFP adapter. Exact platform support must be checked against the applicable software release and chassis configuration.
