NI PXI-7340 | 4-Axis Stepper & Servo Motion Controller
Dynamic Product Introduction
Field engineers maintaining multi-axis automated assembly rigs know how disruptive motion controller failure can be. When high-speed positioning stages lose synchronization or drop quadrature feedback, finding a direct hardware replacement that avoids an expensive software overhaul is crucial.
The NI PXI-7340 integrates a dedicated onboard 32-bit DSP to handle complex trajectory profiling, dual-loop PID/PIVff control routines, and electronic gearing without taxing host CPU resources. Capable of driving both stepper and servo drives simultaneously across up to 4 axes, the PXI-7340 provides precise position breakpoints and real-time trigger generation via the PXI backplane. This makes the PXI-7340 an ideal component for automated optical inspection, semiconductor processing, and high-speed robotic indexing.

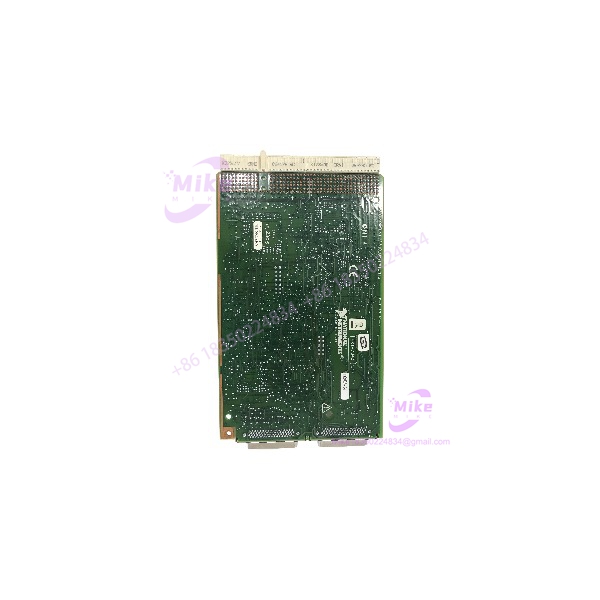

PXI-7340
Key Technical Specifications
- Number of Axes: Up to 4 axes (configurable for stepper or servo independently)
- Servo Loop Update Rate: 62.5 µs per axis
- Positioning Modes: Trajectory profiles, S-curve, trapezoidal, velocity, and electronic gearing
- Encoder Feedback Types: Quadrature encoder (up to 20 MHz) and analog feedback
- Analog Inputs: 8 ADC channels (12-bit, ±10 V range)
- Analog Outputs: 4 DAC channels (±10 V servo command output)
- Digital I/O Lines: 32 TTL lines (4 8-bit ports)
- Onboard Program Memory: Executes up to 10 onboard motion programs concurrently
- Dedicated Motion I/O: Forward/Reverse limit inputs, Home switch inputs, Breakpoint outputs, Inhibit inputs
- Bus Interface: Standard 32-bit PXI / CompactPCI slot interface
- Connector Type: 68-pin female VHDCI connector
Global Sourcing & Live-Test SOP (Transparency Core)
Sourcing surplus or legacy motion control hardware requires rigorous quality checks to prevent line downtime or damaged mechanics.
Inbound Verification & Traceability
- Paperwork Audit: Verification of serial numbers against manufacturing records to prevent gray-market or counterfeit modules.
- Physical Inspection: Checking PCB solder joints, VHDCI pin alignment, thermal fatigue on drive ICs, and ESD shielding tags.
Live Rack Simulation & Diagnostics
- PXI Backplane Handshake: Module is loaded onto an authentic PXI test chassis running RTSI and PXI trigger bus lines to verify PCI address space allocation and system communication.
- 4-Axis Loop Validation: Connected via a Universal Motion Interface (UMI) to a multi-axis test bench with dual optical encoders and motor drives.
- DSP & Trajectory Run: Executing simultaneous S-curve profile moves at maximum PID update rates (62.5 µs) to monitor encoder quadrature tracking and DAC linearity on an oscilloscope.
- 24-Hour Thermal Burn-In: Card operates under full load inside an environmental test chamber to ensure zero component drift or unexpected thermal trips.
Final Prep
- Firmware Recording: Documenting onboard firmware releases and flashing calibration data to EEPROM.
- ESD Packaging: Sealed in anti-static bags with moisture absorbers prior to double-boxed air freight export.
The Field Engineer’s Pitfall Guide
- ❗ Power-Up Sequence Order: Always power up the PXI chassis housing the PXI-7340 and initialize controller drivers before applying main line power to motor drives or external amplifiers. Powering drives first can cause floating control voltage outputs, driving motors into mechanical hard stops.
- ❗ NI-Motion Driver Compatibility: Flashing host applications from traditional NI-Motion driver builds to newer software suites without verifying kernel-level PCI recognition can leave host applications unable to detect the card. Always verify NI-Motion driver compatibility before swapping modules.
- ❗ Unused Limit Switch Logic: For axes configured on the PXI-7340 that do not use physical limit switches, you must soft-disable limit switch inputs in Measurement & Automation Explorer (MAX). Unused floating limit lines default to active-high, inhibiting all motor motion commands immediately upon startup.
Intent-Driven FAQ
Will I lose tuned PID parameters when replacing a faulty PXI-7340?
PID gain values, velocity feedforward constants, and trajectory settings are stored within your LabVIEW application or host MAX configuration files. When you insert the replacement card, MAX re-applies these saved parameters to the onboard DSP during hardware initialization.
Can the PXI-7340 control both stepper motors and servo motors on the same card?
Yes. The 4 axes on the PXI-7340 can be configured independently. You can run axis 1 and 2 as closed-loop brushless servos while axis 3 and 4 operate open-loop or closed-loop steppers.
Is the PXI-7340 hot-swappable while the PXI chassis is powered?
No. Inserting or removing the PXI-7340 card while the PXI chassis is live can damage backplane bus traces and the onboard DSP. Power down the entire chassis before unlatching the card ejector handle.
What connector cable do I need to wire the PXI-7340 to drive amplifiers?
The card features a high-density 68-pin VHDCI connector. NI recommends using a shielded 68-pin VHDCI-to-VHDCI cable paired with a UMI-7764 or UMI-7774 Universal Motion Interface block for terminal access and signal isolation.
What warranty is provided for surplus or factory-sealed modules?
Fully tested PXI-7340 modules sourced through certified procurement channels include a comprehensive 12-month replacement warranty covering component failure and hardware performance.
If you need help configuring axis mapping or selecting UMI accessories for your PXI-7340 motion system, let me know your motor drive models and I can walk you through the wiring layout.
