NI PXI-6521 | Industrial Isolated Digital I/O Module In-Stock
Dynamic Product Introduction
A relay contact failure, optical coupler degradation, or ground loop short on an industrial digital I/O card can severely disrupt test sequencing, damage sensitive system backplanes, or halt automated manufacturing test cells. The National Instruments PXI-6521 (P/N: 779201-01) is a ruggedized 24-channel industrial digital I/O card engineered for high-reliability test and automation environments. Featuring channel-to-channel galvanically isolated inputs alongside heavy-duty electromechanical relays, it insulates sensitive PXI measurement bus logic from ground potential differences, inductive kickback, and electrical noise spikes in harsh industrial settings.
When an operational digital card develops stuck relay contacts, optocoupler channel burnout, or backplane bus communication errors during automated testing, securing an exact-fit NI PXI-6521 replacement module restores industrial switching capabilities immediately. Installing a bench-tested replacement card allows test system engineers to slot the module directly into any standard PXI or PXI Hybrid slot without modifying LabVIEW Virtual Instruments (VIs), NI-DAQmx code configurations, or front-panel screw terminal block cable assemblies. Replacing a compromised card restores full optical isolation, crisp relay switching actuation, and total test bench safety.

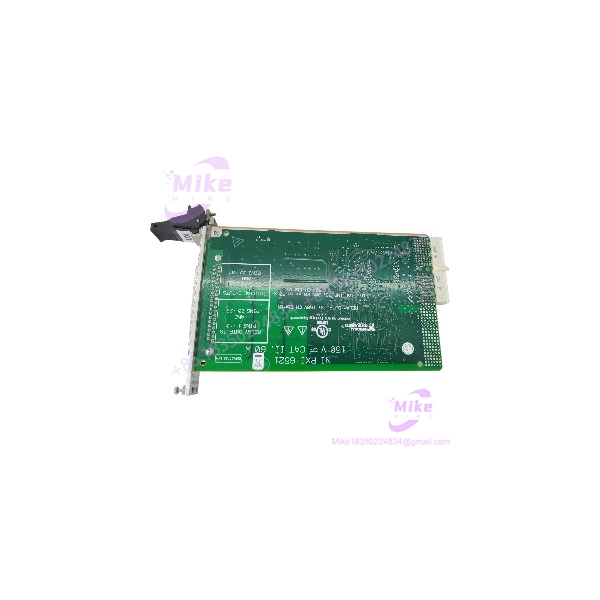

PXI-6521
Key Technical Specifications
- Model Designation: PXI-6521
- Part Number: 779201-01
- Manufacturer: National Instruments (NI)
- Bus Interface: 3U PXI Hybrid Compatible (PXI Bus / PCI Backplane Interface)
- Isolated Digital Inputs: 8 optically isolated channels (sinking/sourcing, ±60 VDC / 30 Vrms max continuous isolation)
- Digital Input Thresholds: Logic LOW 0 to 4 V, Logic HIGH 11 to 60 V
- Relay Outputs: 8 electromechanical Form A (SPST) relay channels
- Relay Contact Ratings: Switching voltage up to 60 VDC / 30 Vrms; maximum switching current 2 A per channel
- Industrial Features: Programmable power-up states, digital filtering, change-of-state detection, watchdog timers
- Front Connector: 37-pin D-Sub male connector interface
- Operating Temperature Range: 0°C to +55°C (32°F to 131°F)
Global Sourcing & Live-Test SOP (Transparency Core)
Procuring secondary-market industrial test hardware like the NI PXI-6521 demands strict bench diagnostic testing to verify relay contact resistance, optical isolation breakdown, and digital filter timing. Every incoming module passes through an intensive five-stage quality assurance protocol:
- Inbound Verification: Part numbers (779201-01), PCB revision stamps, and backplane pin connectors are cross-referenced with original National Instruments factory records. Technicians examine the front 37-pin D-Sub connector, relay housings, and optocoupler ICs under magnification for physical wear or thermal stress.
- Live Simulation: The PXI-6521 is installed into a diagnostic PXI chassis connected to a host controller executing NI-DAQmx automated test routines under 64-bit Windows environments.
- Diagnostics: Technicians actuate all 8 relay output channels under 2 A full-load switching cycles, measuring contact resistance (<100 mΩ) and contact bounce time. High-voltage isolation testers verify channel-to-channel dielectric breakdown limits on the 8 optical inputs across full logic switching thresholds. The module undergoes a 24-hour thermal soak in an environmental test chamber under continuous relay cycling to confirm zero thermal degradation.
- Final Prep: Internal configuration registers are reset to baseline defaults, terminal connector pins are treated with electrical protectant, protective pin covers are fitted, and the board is sealed in static-shielding ESD packaging before dispatch.
The Field Engineer’s Pitfall Guide
- ❗ Inductive Load Flyback Protection (Diodes): —though the PXI-6521 features rugged electromechanical Form A relays, switching inductive loads (such as solenoid valves, contactors, or motor coils) without installing external flyback suppression diodes across the load terminals creates massive voltage spikes that arc and weld the internal relay contacts closed.
- ❗ Exceeding Continuous Isolation Voltage Ratings: Applying continuous common-mode voltages greater than 60 VDC / 30 Vrms to the optically isolated digital input channels will degrade internal optocoupler barrier insulation, causing permanent channel failures and risking backplane damage.
- ❗ Misinterpreting Sinking vs. Sourcing Input Wiring: Connecting industrial PNP sensors (sourcing) or NPN sensors (sinking) without verifying the polarity of the external VCC and ground connections on the 37-pin D-Sub header will result in non-responsive digital input channels.
Intent-Driven FAQ
What is the main application of the National Instruments PXI-6521 module?
The PXI-6521 is designed for industrial automation and automated test system (ATE) environments, providing optically isolated digital inputs for sensor monitoring and electromechanical relay outputs for switching solenoids, actuators, and power circuits.
Which software driver is required to operate the NI PXI-6521?
The PXI-6521 is natively supported by the NI-DAQmx driver framework, allowing seamless control via LabVIEW, LabWindows/CVI, C/C++, Python, and MATLAB applications.
What happens to the PXI-6521 relay outputs if host system power or software crashes?
The PXI-6521 features a hardware watchdog timer and configurable fail-safe power-up states, allowing relays to automatically open or hold predetermined safe positions if host communication is unexpectedly lost.
Is the PXI-6521 module compatible with modern PXI Express (PXIe) chassis?
Yes. The PXI-6521 is equipped with a PXI Hybrid backplane connector, making it compatible with both traditional legacy PXI peripheral slots and modern PXIe Hybrid peripheral slots.
What warranty coverage comes with pre-inspected replacement digital I/O cards?
All verified National Instruments PXI-6521 modules come backed by a comprehensive 1-year replacement warranty. If the unit experiences relay contact welding, optical isolation failure, or bus communication drops under standard operating parameters within 12 months, it is swapped directly from available warehouse inventory stock.
