NI PCI-6514 | 32 In / 32 Out Industrial Isolated Card New In Stock
Architect’s Product Breakdown
The National Instruments PCI-6514 functions as an industrial-grade, high-density digital interface card within standard PCI host computer architectures, specifically engineered for factory automation, direct PLC interfacing, and industrial control systems. Providing 32 optically isolated digital inputs and 32 optically isolated digital outputs on a single board, this hardware model isolates delicate computer backplanes from harsh industrial field wiring. With 60 VDC continuous bank isolation (CAT I), it prevents ground loops, protects against inductive voltage spikes, and eliminates common-mode electrical noise in heavy-machinery settings.
Deploying or replacing this model in an industrial rackmount PC requires careful attention to external power supply wiring and terminal connector pinouts. Driven by the NI-DAQmx driver suite, the board features programmable power-up output states to ensure field actuators remain in a safe state during system boot sequences. When carrying out maintenance swaps in active control cabinets, engineers must verify that external field power supplies (up to 30 VDC) are correctly wired to the output banks and that the 100-pin high-density connector is securely mated to avoid floating logic levels or unpowered output channels.

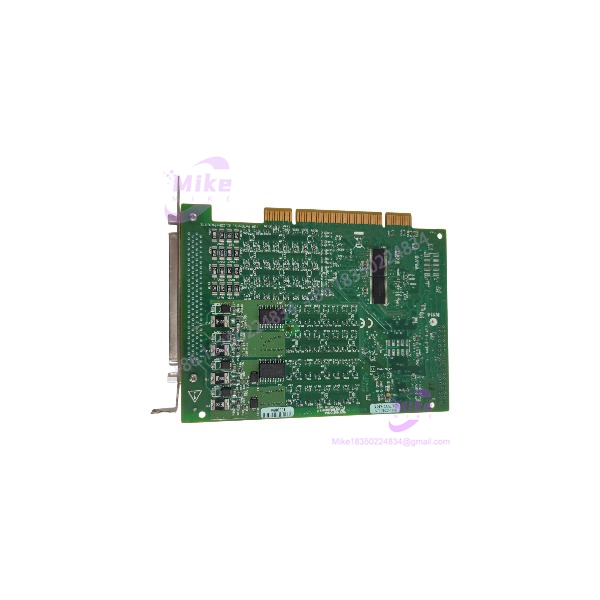

PCI-6514
Key Technical Specifications
- Manufacturer: National Instruments (NI)
- Product Category: Bank-Isolated Digital I/O (DIO) Board
- Part Number / Catalog No.: PCI-6514 (778837-01 / 191244x-01)
- Isolation Rating: 60 VDC continuous bank isolation (1000 Vrms withstand for 5s, CAT I)
- Digital Inputs: 32 Optically Isolated Digital Inputs (0 to 30 VDC, sink/source)
- Digital Outputs: 32 Optically Isolated Digital Outputs (Sinking/Sourcing, up to 30 VDC, 350 mA max per line)
- Logic Thresholds: Input Logic LOW 0 V to 4 V; Logic HIGH 11 V to 30 V
- Bus Architecture: Standard 32-bit PCI slot interface (5V/3.3V universal keying)
- Programmable Features: Programmable power-up states and change detection
- I/O Connector: Single 100-pin high-density female SCSI-type connector
- Operating Temperature Range: 0°C to +55°C
- Weight: Approximately 135 g (0.30 lb)
Field Engineer’s Pitfall Guide (Unique Value)
- Hot-Swapping Under Power: Never insert or remove the PCI-6514 card while the host computer is energized. Live hot-plugging in standard PCI slots risks shorting backplane power lines and causing permanent damage to host motherboard logic.
- Omitting External Field Power for Digital Outputs: The isolated digital outputs do not draw driving power from the PCI bus; they require an external 5 VDC to 30 VDC field power supply connected to the output bank terminals. Failing to connect external field power will result in non-responsive output states despite software commands indicating active signals.
- Exceeding Output Current Thresholds: While each output line can sink or source up to 350 mA, aggregate current across an entire 8-line bank must not exceed total package dissipation limits. Always install flywheel diodes when switching highly inductive loads such as large magnetic contactors or solenoids to suppress back-EMF transients.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Units undergo microscopic examination to confirm clean gold-finger edge connectors, intact isolation barriers, undamaged surface-mount optocouplers, and authentic OEM labeling.
- Live Test Bench Environment: Digital cards are seated in a dedicated industrial PCI test chassis running validated NI-DAQmx driver suites and NI Measurement & Automation Explorer (MAX) to verify register stability and self-test execution.
- Isolation Barrier & Logic Loopback Diagnostics: Technicians apply external 24 VDC field power to test input switching thresholds, verify 60 VDC optical bank isolation, measure output sinking/source current under load, and validate programmable power-up state configurations.
- Anti-Static Packaging: Post-testing units are sealed inside conductive ESD shielding bags and cushioned with high-density protective foam to prevent electrostatic discharge during transit.
Technical FAQ
Can I hot-swap the PCI-6514 card while the host computer is powered on?
No. Standard PCI expansion slots do not support live hot-swapping. Always power down the host computer completely before installing or servicing this board.
Does this model require external power to operate its digital inputs and outputs?
The optically isolated digital inputs are current-driven and powered by incoming field signals (11 V to 30 V), but the isolated digital outputs require an external field power supply (5 V to 30 VDC) wired to the breakout terminal block to drive loads.
What cable and terminal block accessories work with the 100-pin connector on this board?
This model uses a 100-pin high-density connector and pairs with NI cables such as the SH100-100-F, connecting directly to terminal accessories like the SCB-100 or CB-100.
What is the standard warranty status for surplus inventory units?
Verified surplus or factory-sealed digital modules typically carry a 12-month operational warranty covering material and manufacturing defects under standard laboratory or industrial conditions.
