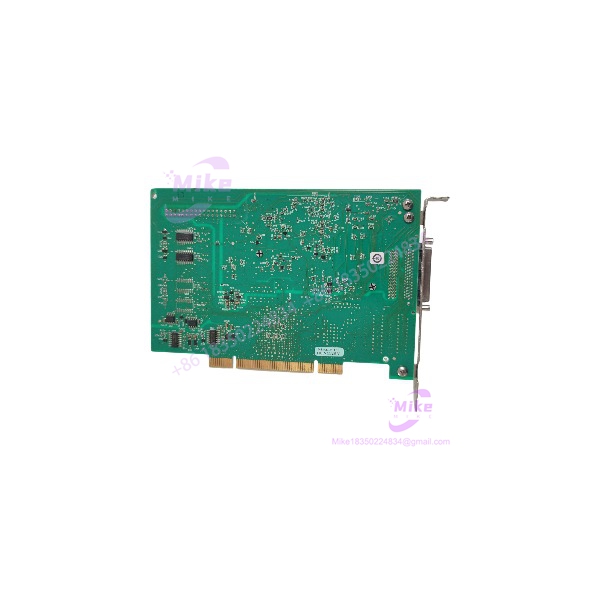

NI PCI-6251 | 16-Channel 16-Bit High-Speed DAQ Card New In Stock
Architect’s Product Breakdown
The National Instruments PCI-6251 operates as a premium high-speed multifunction acquisition module within the M-Series family, engineered for applications requiring faster sampling rates and lower settling times than standard acquisition hardware. Delivering up to 1.25 MS/s single-channel (1.00 MS/s multi-channel aggregate) sampling across its analog inputs alongside 2.86 MS/s analog output execution, this hardware model handles fast dynamic signals in control loop prototyping, high-frequency sensor monitoring, and automated test environments.
Driven by NI-MCal calibration technology and the NI-STC2 system timing controller, the module maintains tight offset accuracy and low non-linearity across varying thermal environments. Deploying or replacing this model in an industrial computer chassis requires proper software configuration within the NI-DAQmx environment and correct cabling to its 68-pin VHDCI connector interface. When carrying out maintenance swaps or upgrading from standard M-Series cards, field engineers must ensure proper signal shielding and grounding topology (Referenced Single-Ended, Non-Referenced Single-Ended, or Differential) to prevent high-frequency noise pickup across fast acquisition runs.
PCI-6251
Key Technical Specifications
- Manufacturer: National Instruments (NI)
- Product Category: High-Speed Multifunction Data Acquisition (DAQ) Board
- Part Number / Catalog No.: PCI-6251 (779029-01 / 191300x-03)
- Analog Inputs: 16 Single-Ended / 8 Differential channels
- ADC Resolution: 16-bit
- Maximum Sampling Rate: 1.25 MS/s (single channel) / 1.00 MS/s (multi-channel aggregate)
- Input Voltage Ranges: Software-selectable from \pm 0.1 V to \pm 10 V
- Analog Outputs: 2 channels (16-bit resolution, up to 2.86 MS/s)
- Digital I/O Lines: 24 TTL/CMOS-compatible bidirectional lines (up to 10 MHz clocked DIO)
- Counter/Timers: 2 x 32-bit counters (up to 80 MHz clock source)
- Bus Architecture: Standard PCI 32-bit bus interface (5V/3.3V universal keying)
- I/O Connector: Single 68-pin female VHDCI connector
- Operating Temperature Range: 0°C to +55°C
- Weight: Approximately 115 g (0.25 lb)
Field Engineer’s Pitfall Guide (Unique Value)
- Hot-Swapping Under Power: Never insert or remove the PCI-6251 card while the host computer is powered on. Standard PCI expansion slots do not support live hot-plugging; pulling or seating cards under load risks shorting PCI bus power rails and destroying host motherboard logic.
- Settling Time Errors on High-Speed Channel Scans: When scanning multiple channels at maximum aggregate sampling rates (1.00 MS/s), source impedance on sensors must be kept low (< 1 k\Omega). High source impedance causes internal amplifier settling errors, leading to signal phantom ghosting from previous channels.
- Incorrect High-Speed Cable Selection: Operating at 1.25 MS/s with unshielded ribbon cables introduces severe crosstalk between adjacent analog and digital lines. Always utilize double-shielded twisted-pair cabling (such as the NI SHC68-68-EPM) to preserve signal integrity.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Units undergo microscopic examination to confirm clean gold-finger edge connectors, undamaged surface-mount analog components, intact trace shielding, and authentic OEM labeling.
- Live Test Bench Environment: Measurement cards are seated in a dedicated industrial PCI test chassis running validated NI-DAQmx driver suites and NI Measurement & Automation Explorer (MAX) to verify self-tests and hardware register response.
- High-Speed Loopback & Calibration Diagnostics: Technicians route analog outputs at maximum generation rates into analog input channels, executing high-speed waveform capture to verify 1.25 MS/s throughput, 16-bit conversion accuracy, and timing clock synchronization.
- Anti-Static Packaging: Post-testing units are sealed inside conductive ESD shielding bags and cushioned with high-density protective foam to prevent electrostatic discharge during transport.
Technical FAQ
Can I hot-swap the PCI-6251 card while the host computer is energized?
No. Standard PCI expansion slots do not support live hot-swapping. Always power down the host computer completely before installing or servicing this board.
What is the main performance difference between the PCI-6221 and the PCI-6251?
While both boards feature 16-bit resolution and 16 analog inputs, this model offers significantly faster sampling speeds (1.25 MS/s vs 250 kS/s) and higher analog/digital output update rates.
What terminal accessories and cables connect to the PCI-6251?
The board features a single 68-pin VHDCI connector and pairs directly with NI shielded cables like the SHC68-68-EPM, connecting to terminal blocks such as the SCB-68A, CB-68LP, or BNC-2120.
What is the standard warranty status for surplus inventory units?
Verified surplus or factory-sealed measurement modules typically carry a 12-month operational warranty covering material and manufacturing defects under standard laboratory or industrial conditions.
