Motorola MVME2301-900 | VMEbus PowerPC Single Board Computer
Dynamic Product Introduction
Confronting sudden kernel stalls or unresolvable VME bus arbitration errors on an aging industrial process line? When vintage processing hardware reaches thermal fatigue, finding an exact match determines whether a plant experiences a brief maintenance window or an extended multi-day outage. The MVME2301-900 single board computer offers a direct, drop-in hardware solution designed to preserve legacy application layers without requiring risky software ports. Built around a 200 MHz MPC603 PowerPC core, this specific variant includes original-style mechanical ejector handles and standard 16MB ECC DRAM configurations tailored for deterministic industrial control loops.
Integrating a fully verified MVME2301-900 bypasses the hidden component degradation found in unmanaged surplus pools. It restores exact clock synchronization, bus timing loops, and memory map registers demanded by real-time operating environments, keeping critical production systems online securely.

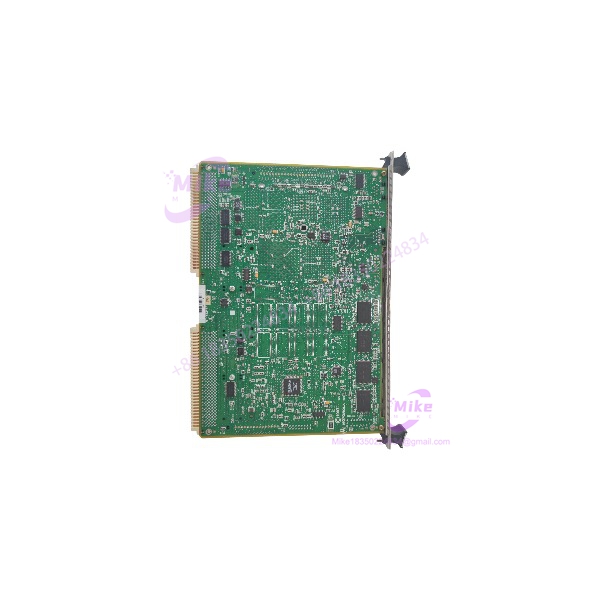

MVME2301-900
Key Technical Specifications
- Processor Architecture: Motorola MPC603 RISC PowerPC processor
- Clock Frequency: 200 MHz core execution speed
- On-Board Memory: 16MB DRAM with Error Correction Code (ECC) protection
- Flash Memory: 5MB onboard flash storage for boot firmware and images
- Bus Architecture: VMEbus IEEE 1014-1987 / ANSI/VITA 1-1994 compliant (Master/Slave interface)
- Expansion Slot: Single PMC (PCI Mezzanine Card) site for modular I/O integration
- Communications: Integrated Ethernet interface and dual asynchronous serial ports
- Form Factor: Standard 6U VMEbus form factor (Single-slot double-Eurocard layout)
- Power Requirements: +5V and +3.3V DC primary backplane power rails
- Operating Temperature Range: 0°C to +55°C (32°F to 131°F) with mandatory chassis airflow
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring vintage modules like the MVME2301-900 demands stringent validation protocols to guarantee field reliability.
Inbound Verification
Incoming units undergo optical magnification checks to inspect PCB traces, solder joint integrity, and component date codes against original manufacturing specifications. Serial numbers are tracked to verify authentic OEM lineage and prevent counterfeit distribution.
Live Simulation
Every board is mounted in an active, temperature-controlled 6U VMEbus test chassis configured with calibrated system controller cards and backplane load simulators to replicate cabinet conditions.
Diagnostics
Testing executes comprehensive address and data pattern loops across the 16MB ECC DRAM space. We verify local PCI bus arbitration, test packet transmissions on the network interface, and perform full-scale communication sweeps across both serial ports. Units undergo a 24-hour thermal soak while tracking primary rail voltage stability using Fluke digital multimeters.
Final Prep
Upon clearing diagnostics, volatile registers are cleared, physical ejector handles are tested for mechanical tension, and the board is sealed inside heavy-duty anti-static shielding bags with desiccant protection.
The Field Engineer’s Pitfall Guide
❗ Mechanical Ejector Handle Clearance:
The MVME2301-900 features classic mechanical front-panel ejector handles designed for secure slot latching. Ensure you pull these handles outward before sliding the card into tight chassis slots; forcing the board directly can sheer backplane alignment pins or warp the front metal faceplate.
❗ VME System Controller Configuration:
Verify your jumper blocks for system controller assignment prior to installation. If a legacy slot configuration conflicts with the replacement board’s arbitration settings, the bus will lock up immediately upon power application.
❗ DRAM Parity and ECC Mismatches:
Verify that your real-time operating system kernel configuration matches the exact 16MB ECC memory ceiling of the MVME2301-900. Bootloaders configured to look for extended memory blocks will generate fatal parity traps during initialization if memory size parameters are misaligned.
Intent-Driven FAQ
Will swapping out the MVME2301-900 erase my application software image?
The primary application software usually resides in non-volatile flash or external boot devices. However, you must verify your boot ROM settings and back up any battery-backed configuration registers before performing the hardware swap.
Can I hot-swap the MVME2301-900 in a live VMEbus chassis?
No. Standard VME architecture does not support live electrical hot-swapping for central processor cards. Always shut down system power completely and allow capacitors to discharge before inserting or removing the MVME2301-900.
What causes a continuous reset loop right after powering on the replacement board?
Continuous resetting is typically triggered by an unconfigured watchdog timer, low voltage sags on the backplane power rails, or an incorrect system controller jumper setting. Check your cabinet power supply output under load.
Are these replacement boards brand new or refurbished?
Since the original manufacturer has discontinued production, available units consist of fully reconditioned, factory-tested surplus inventory or verified working pulls backed by rigorous bench diagnostics.
What kind of warranty covers a surplus hardware purchase?
Reputable industrial automation suppliers provide comprehensive warranty coverage—typically one year—supported by complete documentation of individual board-level testing.
