Kollmorgen Seidel DIGIFAS 7202 | Digital AC Servo Amplifier

Description

Kollmorgen Seidel DIGIFAS 7202 | Digital AC Servo Amplifier

Dynamic Product Introduction

Executing high-speed, precision motion control across automated manufacturing cells requires robust digital servo drives capable of fast loop updates and reliable thermal management. Honestly, the Kollmorgen Seidel DIGIFAS 7202 solves this challenge directly by providing advanced digital signal processing (DSP) and high-performance IGBT power stages tailored for industrial AC brushless servo motors. This drive handles dynamic speed profiles, rapid acceleration, and precise torque regulation reliably without calibration drift (—though verifying your exact line voltage, feedback resolver type, and communication options like SPS or PROFIBUS beforehand is essential). Compared to legacy analog drives, the Kollmorgen DIGIFAS 7202 ensures superior tracking accuracy, flexible parameter configuration, and dependable multi-axis synchronization.

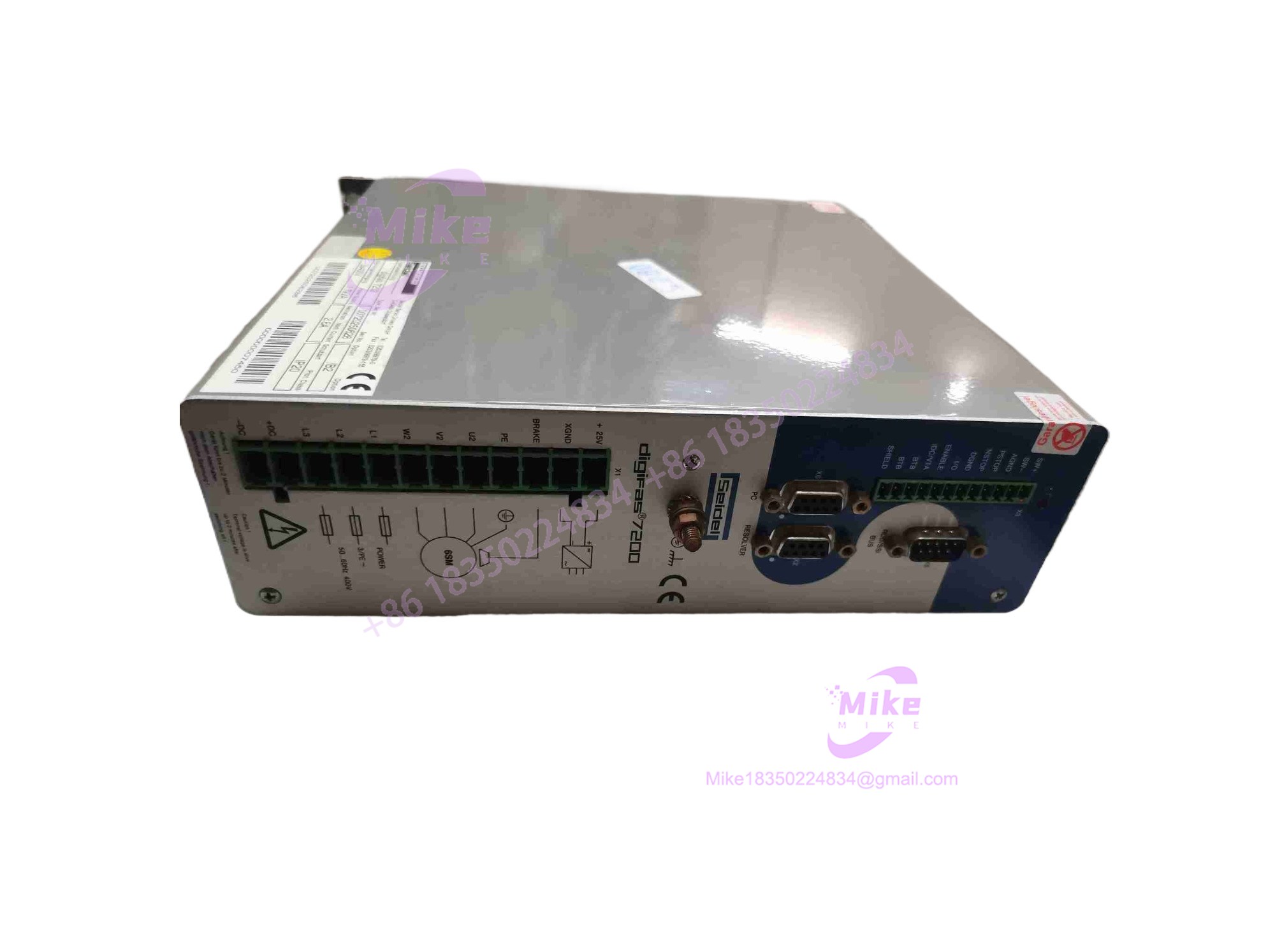

DIGIFAS 7202

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Acquiring secondary-market digital servo amplifiers requires rigorous testing to ensure internal DC bus capacitors, power IGBT switching stages, and control microprocessors remain uncompromised. For every inbound Kollmorgen DIGIFAS 7202 unit, our audit team logs serial numbers against traceability records, inspects power terminal blocks for thermal discoloration, and checks internal circuit boards for electrostatic vulnerability or component aging.

Once cleared, the amplifier is mounted onto a dedicated Kollmorgen servo test stand coupled to a matching brushless motor. Technicians apply nominal 3-phase 400V AC power through a variable supply, verify proper pre-charge circuit and DC bus buildup, test PWM switching across all output phases, and confirm feedback loop and communication port operability. The unit is then cleaned, fitted with anti-static packaging, and securely prepared for deployment.

The Field Engineer’s Pitfall Guide

❗ DC Bus Capacitance and Pre-Charge Failure: Applying full 3-phase power abruptly without allowing internal pre-charge circuits to settle—or failing to use line reactors where required—can damage input bridge rectifiers and internal capacitors.

❗ Improper Feedback Shielding: Inadequate grounding or unshielded resolver/encoder cables can introduce high-frequency electrical noise, resulting in drive fault trips or erratic velocity tracking.

❗ Thermal Overload in Tight Enclosures: Operating the drive above rated ambient temperatures or without required cabinet ventilation fans can trigger thermal protection shutdowns and shorten semiconductor lifespan.

Intent-Driven FAQ

• What motor types are compatible with the Kollmorgen DIGIFAS 7202?

  It is designed to drive standard AC brushless servo motors equipped with compatible resolver or encoder feedback systems.

• Can the DIGIFAS 7202 parameters be adjusted via software?

  Yes, drive parameters, tuning gains, and operational profiles are configured digitally using Kollmorgen’s setup software via the communication port.

• What type of warranty covers verified surplus Kollmorgen drives?

  All tested inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment bench test logs.

• Is component-level repair recommended for DIGIFAS amplifiers?

  Component-level repair requires specialized test fixtures and firmware access; factory-tested surplus replacements or professional depot refurbishment are strongly recommended.

• How do I verify if a replacement unit has been bench-tested?

  Look for serialized QA certification labels, clean connector pins, and complete test documentation included with the hardware package.
