T9402 ICS Digital Input Module Product Introduction
This is a digital input module produced by ICS TRIPLEX, belonging to the AADvance series controller I/O expansion product, widely used in industrial automation and safety control systems.

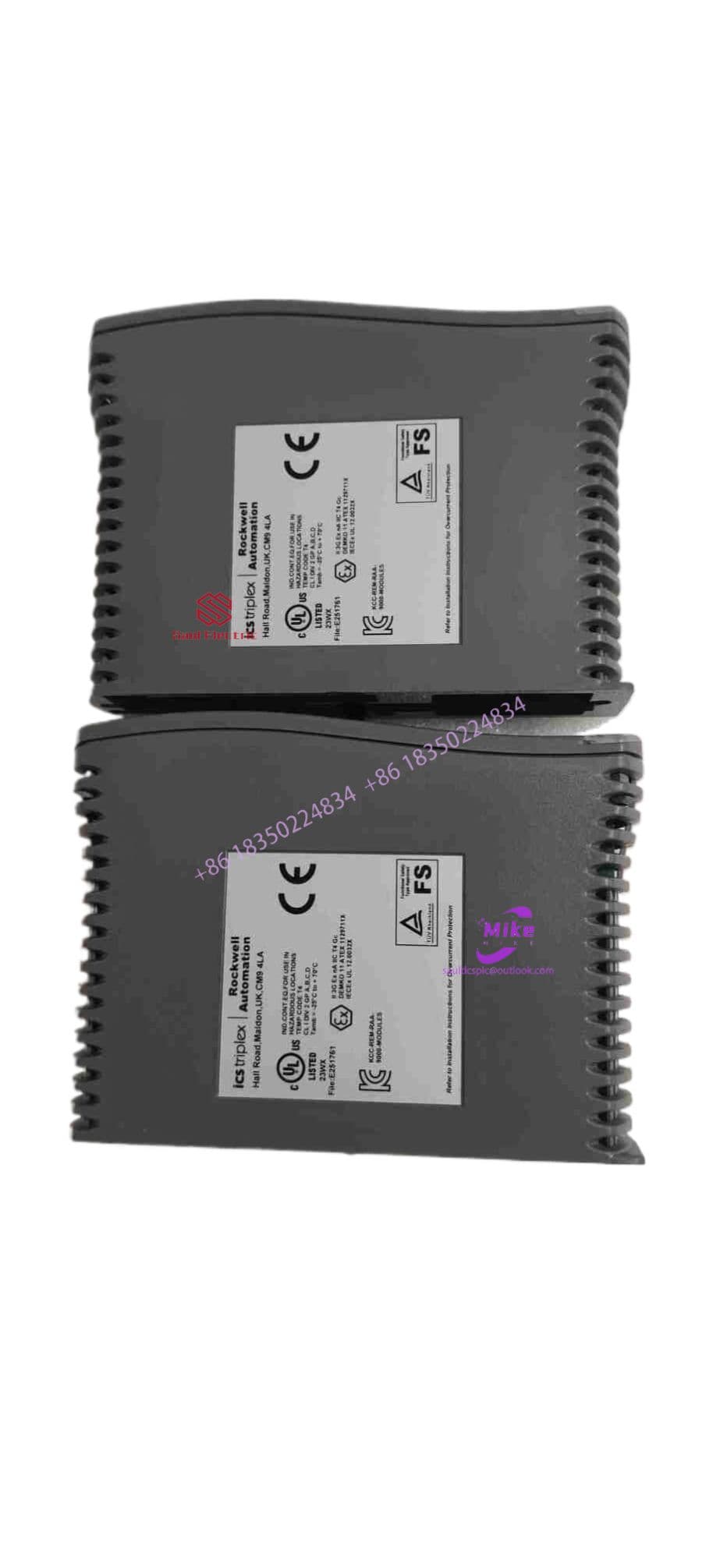

ROCKWELL AUTOMATION T9402 DIGITAL INPUT MODULE , 24 VDC, 16 CHANNEL
1、 Core positioning
T9402: Digital input module, used to collect switch values/digital signals from on-site devices and transmit them to the controller for processing.
Series: AADvance (the mainstream controller platform of ICS TRIPLEX).
Model variants: T9402-8A (8 channels), T9402-16A (16 channels).
Note: There is also a T9402 input module from Allen Bradley on the market, which belongs to the AADvance controller series and is a separate product from ICS TRIPLEX’s T9402. This article introduces the ICS TRIPLEX version.
2、 Working principle
The module collects digital signals (ON/OFF, NPN or PNP type) from on-site devices (buttons, switches, relay contacts, sensor outputs, etc.), processes them internally, and uploads them to the AADdistance controller through the communication interface, where the controller executes the corresponding control logic.
The module adopts a Triple Modular Redundancy (TMR) architecture, with three channels running independently and implementing a “two out of three” logic through hardware voting. A single channel failure does not affect the normal operation of the system.
3、 Key technical parameters
Number of input channels: 8 channels (T9402-8A) or 16 channels (T9402-16A)
Input type: NPN or PNP, optional
Input voltage: 24V DC or 48V DC
Input signal range: 0 to 32V DC (some data indicate)
Response time: microsecond level
Working temperature: -40 ℃ to+70 ℃ (wide temperature design)
Protection level: IP65 (fully sealed, suitable for harsh industrial environments)
Redundant architecture: TMR triple module redundancy
Safety certification: TUV SIL 3, IEC 61508, IEC 61511
Communication interfaces: Ethernet (10/100Mbps), RS-485, Profibus DP, Modbus TCP/RTU
Processor: 64 bit CPU, clock speed above 1GHz
Memory: RAM above 2GB, Flash above 512MB
Power consumption: within approximately 50W
Size (including bracket): approximately 150 × 220 × 100mm
4、 Main features
High reliability: TMR hardware redundancy, automatic shielding for single point of failure, switching time less than or equal to 1 millisecond.
High input density: 16 channel digital input, which can be increased to 128 channels through expansion modules.
Fast response: microsecond level signal acquisition, supports SOE (Sequential Event Recording), and has a time accuracy of milliseconds.
Input protection: equipped with overvoltage and overcurrent protection, ensuring module and system safety.
Flexible configuration: supports online modification of programs, downloads control logic through the AADvance development environment, adopts a “download first, switch later” mechanism, and runs without interruption.
Easy to install: Compact design, no need for complex wiring or specialized tools.
5、 Typical applications
Button and switch status acquisition (start stop control, emergency stop signal)
Relay contact monitoring
Safety interlock system (fire and gas system F&G)
Chemical industry: reactor safety control, process parameter monitoring
Electricity: generator protection, turbine monitoring
Oil and gas: pipeline leak detection, pump station control
Water treatment: valve status monitoring
Manufacturing industry: collection of equipment status on production lines
6、 Expansion and compatibility
T9402 can be used in conjunction with modules of the same series, and common extensions include:
T8403:16 channel digital input module (24V DC)
T8431: 8-channel analog input module (4-20mA)
T8442: Speed monitoring module (supports reluctance/pulse sensors)
After expansion, channel mapping and logic programming need to be completed through the AADdistance configuration tool.
In summary, T9402 ICS is a highly reliable digital input module based on TMR triple redundancy architecture, designed specifically for safety critical industries such as chemical, power, and petroleum. It has 16 channels, microsecond level response, and millisecond level fault switching, and is the core I/O component of AADvance control systems.
