Honeywell DC-TUIO31 | Experion PKS Series C IOTA Core Category
Dynamic Product Introduction
Replacing terminal blocks and base assemblies in complex Experion PKS environments requires rugged hardware capable of ensuring uncompromised signal continuity and clean field-wiring layouts. Honestly, the Honeywell DC-TUIO31 solves this challenge directly by delivering native, software-configurable I/O integration engineered specifically for Series C control racks. This non-redundant assembly manages multi-channel field signals dynamically without requiring physical jumpers for signal type adjustments (—though verifying your exact slot configuration, loop power schema, and revision parameters beforehand is vital). Compared to traditional fixed-function marshalling cards, the Honeywell DC-TUIO31 preserves system-level flexibility, preventing costly rewiring errors during scheduled maintenance windows.

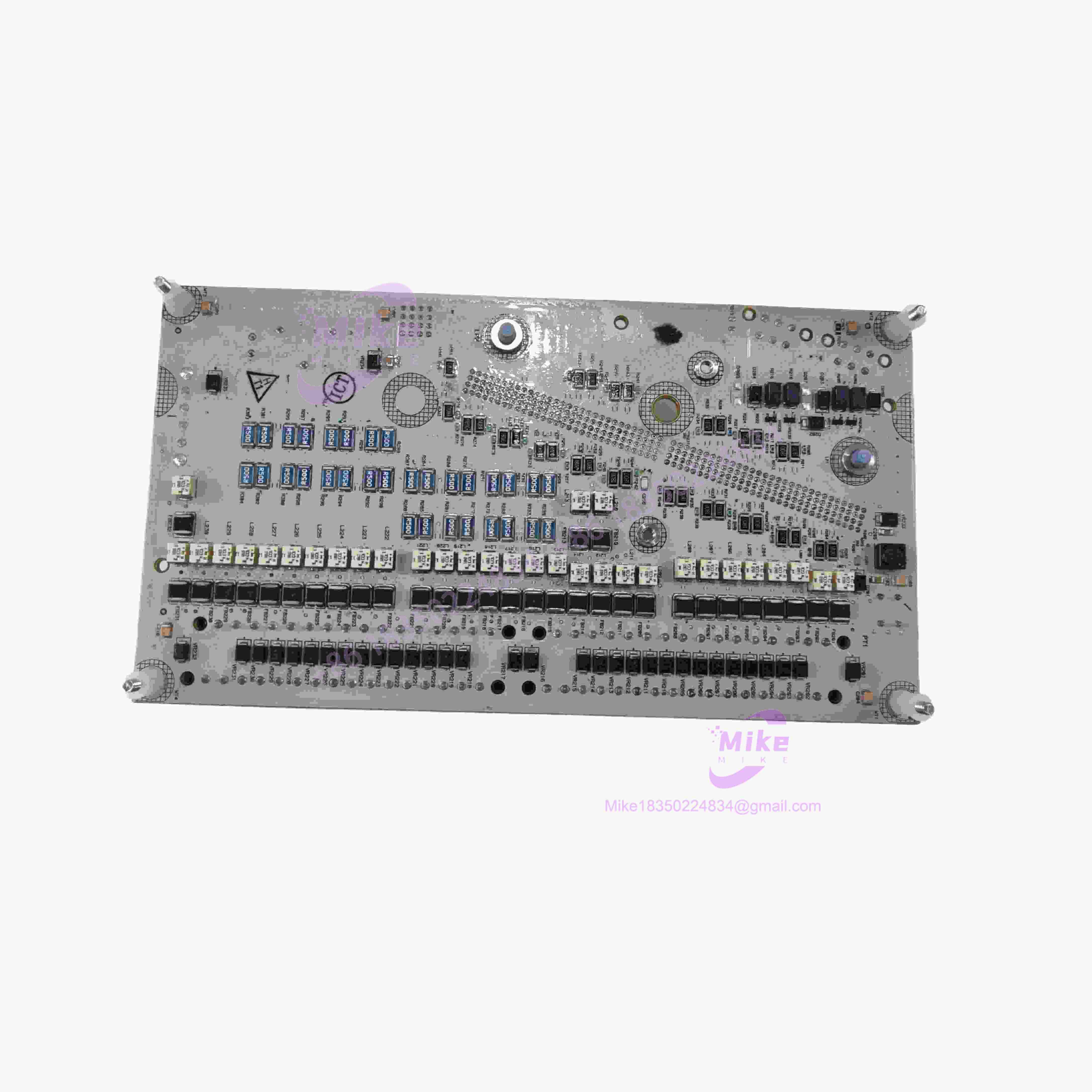

DC-TUIO31
Key Technical Specifications
| Specification | Parameter Value |
| Product Series | Honeywell Experion PKS Series C Control Line |
| Model Designation | DC-TUIO31 (Uncoated Standard Environment Variant) |
| Channel Capacity | 32 user-configurable channels (AI, AO, DI, DO, Pulse, SOE) |
| HART Support | Bi-directional 4–20 mA HART loop protocol pass-through execution |
| Isolation Protection | 1500 V AC/DC channel-to-channel and channel-to-power isolation |
| Operating Environment | -40°C to +70°C industrial standard compliance |
| Mounting Style | Standard 35 mm DIN-rail mount configuration (9-inch form factor) |
| Diagnostics | Passive routing card design with module-driven system status visibility |
Global Sourcing & Live-Test SOP (Transparency Core)
Acquiring secondary-market industrial termination assemblies requires thorough mechanical and electrical inspection to ensure internal traces, connector pins, and galvanic isolation barriers remain pristine. For every inbound Honeywell DC-TUIO31 unit, our audit team logs serial numbers against global OEM traceability ledgers and inspects backplane pins, terminal screw blocks, and grounding clips for oxidation or mechanical strain.
Once cleared, the module is mounted onto an active Experion Series C test bench simulation rig. Technicians execute a full system module handshake, verify multi-channel pass-through integrity across simulated 4-20 mA HART and digital points, and confirm 1500 V isolation stability. The unit is then cleaned, fitted with terminal dust protection, and sealed inside an anti-static moisture-barrier bag.
The Field Engineer’s Pitfall Guide
❗ Hot-Insertion Misalignment: Forcing the active Universal Input/Output Module (UIOM) onto the DC-TUIO31 base pins at an angle can bend delicate terminal connectors. Always use alignment guides during module placement.
❗ Uncoated Environment Application: Deploying the uncoated “DC-” prefix version in highly corrosive, salt-laden, or high-humidity industrial atmospheres will cause rapid terminal oxidation. Use conformal-coated (CC-) variants for harsh environments.
❗ Shield Grounding Errors: Tying field cable shielding lines together inside the internal terminal strip introduces noise loops. Always terminate drain wires directly to the external cabinet copper earth bar.
Intent-Driven FAQ
- Does replacing the DC- base assembly erase controller configuration logic?
No, the DC- is a passive/active termination routing card; control logic and configuration templates reside in the Experion controller and station memory.
- Can the UIOM module be hot-swapped safely on the DC- board?
Yes, the physical design allows the active module to be exchanged during live operation without disturbing field wiring or cutting power to unaffected loops.
- What type of warranty covers surplus Honeywell termination assemblies?
Verified secondary-market inventory includes a comprehensive 1-year operational warranty backed by our pre-shipment signal pass-through and continuity verification logs.
- Can I repair broken terminal blocks on this IOTA myself?
Component-level or terminal block field repair is discouraged due to precision multi-layer board layouts; replacement with a certified unit is recommended.
- How do I verify if a replacement unit has been bench-tested?
Look for serialized QA verification stickers, clean unmarred screw terminals, and accompanying test documentation included in the packaging.
