Honeywell CC-TDOB01 | Non-Redundant 24V Digital Output Termination Specs

Description

Honeywell CC-TDOB01 | Non-Redundant 24V Digital Output Termination Specs

Dynamic Product Introduction

Troubleshooting erratic final control elements in a dense marshaling cabinet during a critical plant shutdown tests the patience of any automation engineer. When legacy digital output termination bases suffer from thermal fatigue or lack built-in short-circuit protection, a single field fault can trip entire output banks.

Enter the Honeywell CC-TDOB01, a high-reliability Input/Output Termination Assembly engineered to anchor 24 VDC digital control loops within Series C architectures. By combining a structured physical interface with intelligent point-level electronic protection, this CC-TDOB01 hardware base isolates localized field shorts automatically without dragging down adjacent loops. Facilities upgrading to this termination architecture experience tighter loop uptime and faster fault isolation—though this strictly depends on secure terminal torque and correct backplane seating.

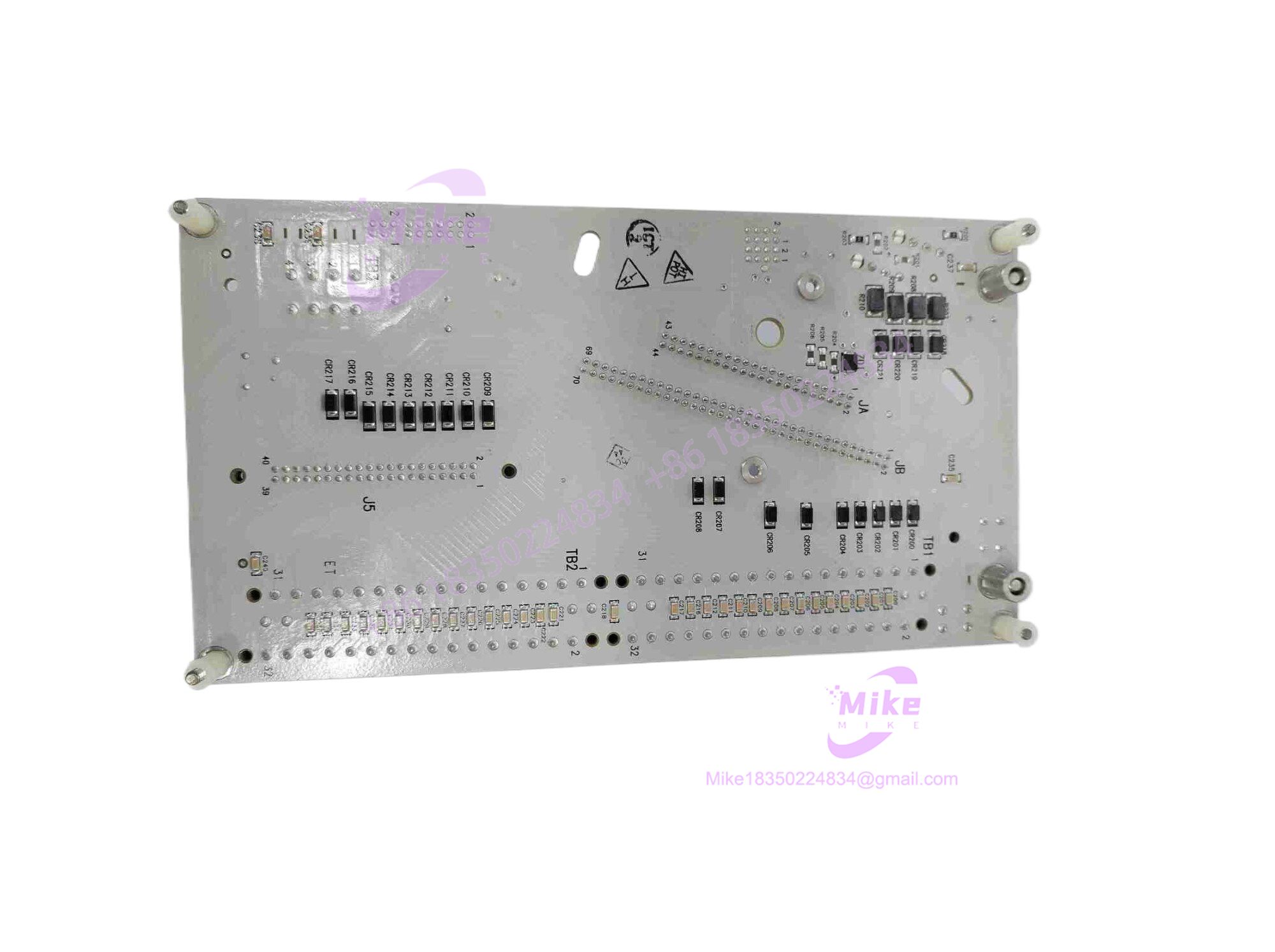

CC-TDOB01

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Procuring surplus or replacement automation hardware demands an uncompromising quality control pipeline. In field deployments, dropping an untested board into a live rack can trigger catastrophic controller faults.

• Inbound Verification: Every incoming shipment of the CC-TDOB01 undergoes meticulous customs documentation review alongside high-magnification holographic serial number checks to block gray-market counterfeits.
• Live Simulation: Technicians mount the CC-TDOB01 hardware onto an authentic Series C test bench to verify backplane pin alignment and mechanical latching integrity.
• Diagnostics: Engineers execute full-scale load switching tests, verify point-level overcurrent trip thresholds using calibrated multimeters, and run a 24-hour thermal heat run to flush out infant mortality defects.
• Final Prep: Once cleared, the unit is logged by revision level, packed in anti-static shielding, and vacuum-sealed for storage.

The Field Engineer’s Pitfall Guide

❗ Terminal Fastener Torque Failures: Overtightening field wire clamp screws on the CC-TDOB01 during installation can crack the underlying terminal housing block. I’ve seen plants spend hours tracing intermittent open control loops because a technician stripped a connection terminal under excessive torque.

❗ Overcurrent Latch Misunderstandings: When a field short occurs, the CC- automatically shuts down the affected point and switches its mode to Manual, generating a soft failure. Failing to clear the physical short before attempting a software reset will cause an immediate re-trip.

❗ Series C Latching Misalignment: Forcing the matching digital output module onto the CC- base without verifying proper keying pins can bend backplane pins, instantly disrupting control communication.

Intent-Driven Field FAQ

• Will I lose my configuration logic if I swap out a faulty CC- assembly?

  No. The termination assembly is a passive and semi-active physical connection base; control logic and channel configurations reside entirely in the system controller database.

• How does the CC- handle field short circuits?

  When an overcurrent condition occurs, the specific output circuit senses the fault, shuts down that individual channel to protect the system, shifts the point to Manual, and generates an alarm until the short is repaired.

• Can this IOTA handle redundant controller configurations?

  No. This specific part number is engineered for non-redundant architectures. If high-availability dual-slot redundancy is required, verify your node specifications for a redundant variant like the CC-TDOB11.

• What maintenance tools are required to verify terminal integrity locally?

  A calibrated digital multimeter is necessary for measuring loop voltage drops and verifying continuity across output pairs.

• Are factory-sealed units supplied with updated hardware revisions?

  Surprise inventory often ships with baseline factory hardware revisions. Always cross-check the CC- build level against your system engineering requirements before final commissioning.
