The Foxboro P0926AH-B operates as a passive optical distribution node within the high-speed communication loops of an I/A Series distributed control architecture. By managing quadruple-to-dual signal splitting and combining, this hardware ensures fault-tolerant optical bus topologies remain balanced without introducing active electronic failure points into long-distance data paths.
When deploying optical networks in heavy industrial plants, signal attenuation across patch panels and splices dictates overall link margin. The P0926AH-B is engineered to minimize insertion loss while maintaining strict compatibility with IEEE 802.4 token bus architectures. Technicians performing legacy retrofits must inspect optical connector cleanliness meticulously; microscopic dust particles on the mating ferrules will induce high return loss and trigger unexpected node communication drops.

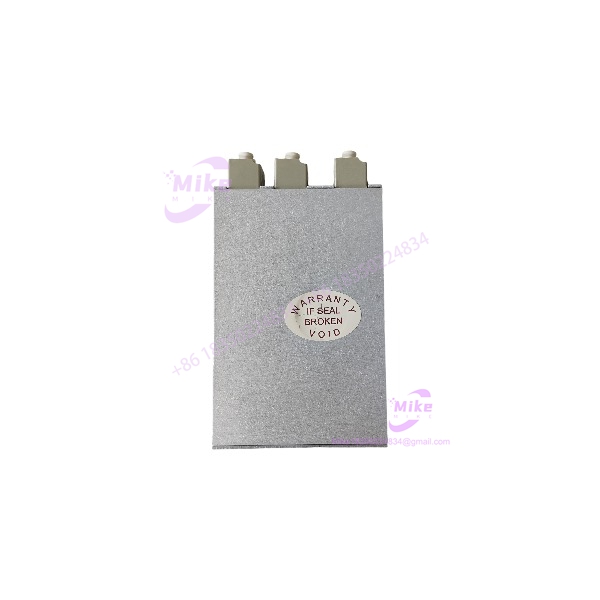

P0926AH-B
Key Technical Specifications
- Manufacturer: Foxboro (Schneider Electric)
- Product Category: Passive Fiber Optic Distribution Unit
- Configuration: Quadruple to Dual (and vice versa)
- Network Compatibility: IEEE 802.4 token bus fiber networks
- Operating Temperature Range: -20°C to +70°C
- Enclosure Type: DIN / Panel Mount optical module housing
- Optical Connectors: Standard industrial fiber interface ports
- Weight: Approximately 1.0 to 1.5 kg (variant dependent)
- Power Requirement: Passive device (requires no external power supply)
Field Engineer’s Pitfall Guide (Unique Value)
- Neglecting End-Face Inspection: Never mate fiber jumpers to the P0926AH-B without an optical microscope inspection. I’ve seen plant networks lose entire redundant loops simply because microscopic oil residue from a technician’s finger blocked the core light path.
- Exceeding Optical Power Budgets: Inserting multiple passive splitters without calculating cumulative insertion loss will drop optical receiver power below the threshold of the connected communication modules, causing intermittent CRC errors.
- Improper Cable Bend Radius: Tight zip-tying of fiber pigtails exiting the module enclosure causes micro-bending losses, gradually degrading packet delivery over thermal cycles.
QA & Testing SOP (Transparency)
- Visual & Origin Verification: Units are inspected for OEM laser markings, batch traceability codes, and mechanical adapter alignment.
- Optical Insertion Loss Testing: Technicians use calibrated light sources and optical power meters to measure attenuation across every port channel against baseline factory metrics.
- Return Loss Verification: Back-reflection values are measured to confirm optical isolation and prevent transceiver feedback distortion.
- Packaging Standards: Ports are capped with dust covers, and units are sealed inside anti-static, moisture-barrier bubble shielding for transit.
Technical FAQ
Does the P0926AH-B require an external power supply to operate?
No. It is a completely passive optical component utilizing internal prisms or fused biconical taper technology to split and combine light signals without active electronics.
Can this unit be used interchangeably with standard Ethernet fiber links?
No. The P0926AH-B is specifically designed for legacy industrial token bus networks (such as IEEE 802.4) utilized in Foxboro I/A Series architectures.
What causes intermittent node dropouts after installing a replacement fiber splitter?
This is almost universally caused by contaminated optical connector tips or exceeding the maximum allowable link attenuation budget. Re-clean all fiber jumpers and verify signal strength with an optical time-domain reflectometer (OTDR).
What is the standard warranty status for surplus inventory units?
Verified surplus or new-in-box units typically carry a 12-month operational warranty against manufacturing defects.
