FOXBORO P0916AG | FBM204 Field Terminal Assembly

Description

FOXBORO P0916AG | FBM204 Field Terminal Assembly

Architect’s Product Breakdown

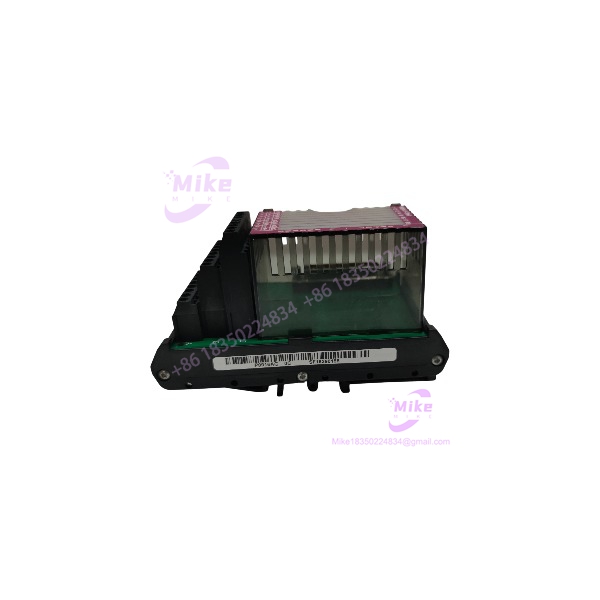

The FOXBORO P0916AG is a Field Terminal Assembly (FTA) used with the FBM204 in the Foxboro I/A Series 200 I/O architecture. It provides the field-side wiring interface for analog signals, connecting instrument and actuator circuits to the associated I/O module through the approved termination arrangement. The P0916AG is a termination component; the FBM204 performs the electronic signal acquisition and output functions.

The associated FBM204 supports four analog input channels and four analog output channels. The documented signal range is 0–20 mA DC, with the applicable wiring and channel configuration determined by the installed system. This mixed-I/O arrangement is useful where a cabinet must accommodate both transmitter feedback and analog control outputs without allocating separate modules for each signal direction. For migration projects, Emerson’s Flex.Connect documentation also identifies P0916AG as a supported termination assembly for connecting the corresponding Foxboro I/O signals to DeltaV CHARM-based systems.

For maintenance, the critical distinction is between the termination assembly, its connecting cable, and the FBM204 itself. A loose terminal, damaged connector, incorrect cable, or wiring mismatch can produce symptoms that resemble an I/O module failure. Before ordering a replacement, verify the complete P0916AG designation, terminal layout, cable type, field wiring diagram, and installed FBM204 configuration. Do not assume that another P0916-series assembly is interchangeable merely because it belongs to the same I/A Series family.

P0916AG

Key Technical Specifications

Specification note: Channel count and signal range refer to the associated FBM204 configuration, not to active electronics inside the P0916AG termination assembly. Confirm the exact hardware documentation before using electrical limits for loop design or acceptance testing.

Field Engineer’s Pitfall Guide

Warning 1 — Do not mistake the P0916AG for the FBM204 module.

The P0916AG is the field termination assembly. The FBM204 is the electronic I/O module. If an analog channel fails, check the field instrument, loop power, wiring, terminal contacts, termination cable, and FBM diagnostics before replacing either component.

Warning 2 — Verify the complete termination path.

The P0916AG, its termination cable, and the FBM204 form a connected hardware arrangement. Confirm the cable part number, connector type, terminal assignment, and baseplate compatibility. A mechanically compatible terminal assembly is not necessarily electrically compatible with the existing installation.

Warning 3 — Confirm the channel mapping before removing field wiring.

The FBM204 handles both analog inputs and outputs. Incorrectly transferring wires can affect transmitter feedback, valve commands, or other control signals. Label each conductor and cross-check the terminal assignments against the approved drawings before disconnecting the existing assembly.

Field scenario: During a shutdown, a technician replaces a termination assembly after diagnosing an analog output fault. The fault remains because the problem is in the output loop rather than the terminal hardware. Checking the loop current and isolating the fault before replacing the P0916AG would have saved the maintenance window.

QA & Testing SOP — Transparency

A suitable quality-control process for the FOXBORO P0916AG should include the following checks.

1. Visual and origin inspection

• Confirm the P0916AG part marking and available revision information.
• Inspect the housing, terminal blocks, connectors, and mounting features.
• Record available serial or lot information and review supplier traceability records.

2. Mechanical inspection

• Verify the terminal layout and connector arrangement against the approved drawings.
• Check for cracked insulation, damaged terminals, corrosion, or loose hardware.
• Confirm that the required termination cable is present and correctly identified.

3. Electrical checks

• Perform appropriate continuity and short-circuit checks with the assembly isolated.
• Verify terminal assignments against the field wiring diagram.
• Avoid applying insulation-test voltages that could damage connected electronic equipment.

4. Compatibility verification

• Confirm the associated FBM204 model and baseplate arrangement.
• Verify input and output channel mapping before installation.
• For DeltaV migration projects, confirm the applicable Flex.Connect cable and CHARM configuration.

5. Documentation and packaging

• Record inspection results and disclose any unperformed tests.
• Distinguish visual inspection from a completed functional test.
• Protect connectors and terminals during transport, using appropriate ESD precautions where required.

Technical FAQ

Q1. Is FOXBORO P0916AG an analog I/O module?

No. The P0916AG is a Field Terminal Assembly. It is associated with the FBM204, which provides four analog inputs and four analog outputs.

Q2. Can I use P0916AG with an FBM205?

Emerson documentation lists both FBM204/P0916AG and FBM205/P0916AJ in the same general Flex.Connect application category. That does not establish that P0916AG and P0916AJ are interchangeable. Confirm the exact termination assembly, cable, and module configuration before substitution.

Q3. Does P0916AG require a firmware update?

No. The P0916AG is a passive termination assembly and does not run application firmware. Firmware and configuration requirements belong to the associated electronic control-system hardware.
