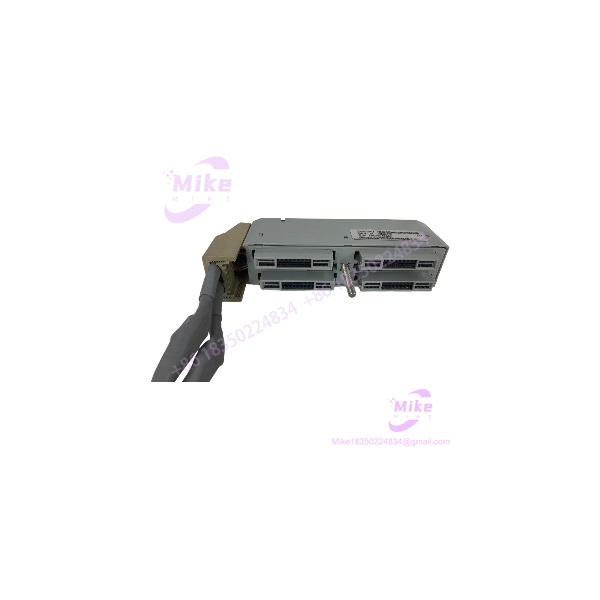

FOXBORO P0902YU | Continuous-Rated Field Wiring Cable
Architect’s Product Breakdown
The FOXBORO P0902YU is a field termination cable assembly associated with the FBM41C/42C digital input/output modules in the Foxboro I/A Series DCS. It provides the physical connection between the fieldbus module’s baseplate and the field wiring termination arrangement. Unlike a controller or an electronic I/O module, this component does not execute control logic; its job is to maintain the required electrical connection between the installed module and its field circuits.
The defining distinction is the FBM41C/42C continuous-current termination variant. The related P0902YT is associated with FBM41A/42A and a 60 V, 2.2 A designation, while P0902YU is cataloged for FBM41C/42C with a continuous-current designation of 2.2 A. Related direct-connection and plug-termination variants carry different suffixes. Verify the exact wiring arrangement before ordering; a physically similar cable is not necessarily an electrically appropriate replacement.
For legacy-system maintenance, the P0902YU should be treated as a configuration-specific interconnection component. Check the existing FBM model, terminal assembly, cable routing, and wiring drawings. Do not assume that changing this cable will resolve a field I/O fault without first checking the termination assembly and field circuit.
P0902YU
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | FOXBORO / Invensys |
| Model | P0902YU |
| Product type | Field termination cable assembly |
| Compatible module family | FBM41C / FBM42C |
| Control system | Foxboro I/A Series DCS |
| Connection arrangement | Wire termination |
| Current designation | Continuous / 2.2 A, as cataloged |
| Voltage rating | Confirm the applicable assembly documentation |
| Cable length | Verify the supplied cable’s actual length |
| Connector and pinout | Confirm against the installed assembly |
| Firmware requirement | No independent firmware requirement for the cable itself |
| Operating temperature | Verify the cable and termination assembly ratings |
| Lifecycle status | Legacy hardware; verify current OEM availability |
| Condition | Confirm new surplus, used, or refurbished status with the supplier |
Field Engineer’s Pitfall Guide
Warning 1 — Do not confuse continuous-rated and voltage-specific variants.
The P0902YU and P0902YT belong to different termination cable designations. Verify the installed FBM suffix and the applicable field circuit ratings before substitution. Never infer the full allowable voltage from the 2.2 A current designation alone.
Warning 2 — Check the termination style, not just the connector.
The P0902YU is listed as a wire-termination variant. Related P0902YW and P0902YY versions have different connection arrangements. A replacement that connects at the baseplate end may still be unsuitable for the installed field termination hardware.
Warning 3 — Investigate the entire signal path before replacing parts.
Intermittent digital I/O faults can originate in field wiring, terminal contacts, the termination cable, or the FBM itself. During troubleshooting, inspect connector engagement and wiring condition, then use the approved diagnostic procedure to isolate the fault. Replacing the cable without confirming the failure point can consume a shutdown window without fixing the underlying problem.
QA & Testing SOP — Transparency
1. Visual and origin inspection
- Confirm the P0902YU part number and supplier documentation.
- Inspect cable insulation, connector contacts, and strain relief for damage.
- Record available lot, serial, and revision information.
2. Electrical checks
- Verify continuity and check for unintended shorts using an appropriate test procedure.
- Confirm pinout and termination configuration against the approved wiring diagram.
- Check the assembly’s suitability for the intended circuit ratings.
3. Compatibility verification
- Confirm the installed FBM41C/42C model and associated termination assembly.
- Check cable routing, connector engagement, and wiring documentation before installation.
4. Test records
- Record the inspection and electrical test results.
- Report any limitations explicitly. Do not claim live-system testing unless it was actually performed.
5. Packaging and dispatch
- Protect connectors from impact and contamination.
- Apply suitable ESD precautions where required by the connected hardware.
- Include the product condition, test status, and applicable warranty terms in the shipment documentation.
Technical FAQ
Q1. Can I use P0902YU to replace P0902YT?
Not as a direct substitution without engineering verification. The two part numbers are associated with different FBM41/42 variants and electrical designations. Confirm the module, circuit requirements, and termination arrangement first.
Q2. Does the P0902YU require a firmware update?
No firmware update is normally required for a passive termination cable assembly. Firmware compatibility concerns apply to electronic components in the connected control system, not the cable itself.
Q3. Can I disconnect P0902YU while the plant is running?
Do not assume that disconnection is permissible during operation. Removing the cable can interrupt field signals or outputs, depending on the connected module and process configuration. Follow the plant’s approved isolation and maintenance procedures.
Q4. Does P0902YU retain configuration after power loss?
The cable itself does not store software or control configuration. Configuration retention is handled by the relevant controller and control-system components.
Q5. What should I request when buying a used P0902YU?
Request photographs of the actual part number, both connector ends, termination arrangement, and cable condition. Ask for continuity-test results, confirmation of the compatible FBM family, warranty terms, and written disclosure of any repairs or limitations.
Procurement recommendation: The FOXBORO P0902YU should be purchased against the installed FBM41C/42C configuration, not merely as a generic Foxboro cable. Confirm the continuous-current designation, wiring termination style, and connector compatibility before releasing the purchase order.
