Emerson Westinghouse 1C31194G03 | Ovation Valve Positioner Module
Product Introduction
Emerson Westinghouse 1C31194G03 Ovation Valve Positioner Module. 来源：PLCMO
While standard analog cards handle basic steady-state feedback, the 1C31194G03 is built specifically for high-speed, closed-loop electro-hydraulic valve actuation in Ovation DCS environments. Slotted into your local I/O rack, it directly interfaces with hydraulic servo valves and Linear Variable Differential Transformers (LVDTs)—offloading millisecond-level position loop calculations from the primary controller CPU to guarantee sub-degree throttling precision.
Engineered to handle the harsh electrical noise of power generation halls, this module processes dual LVDT excitation signals while delivering bipolar current outputs to hydraulic coils. It features galvanic isolation barriers between the field-side transducer connections and the internal backplane bus, keeping inductive ringing from destabilizing adjacent logic modules.

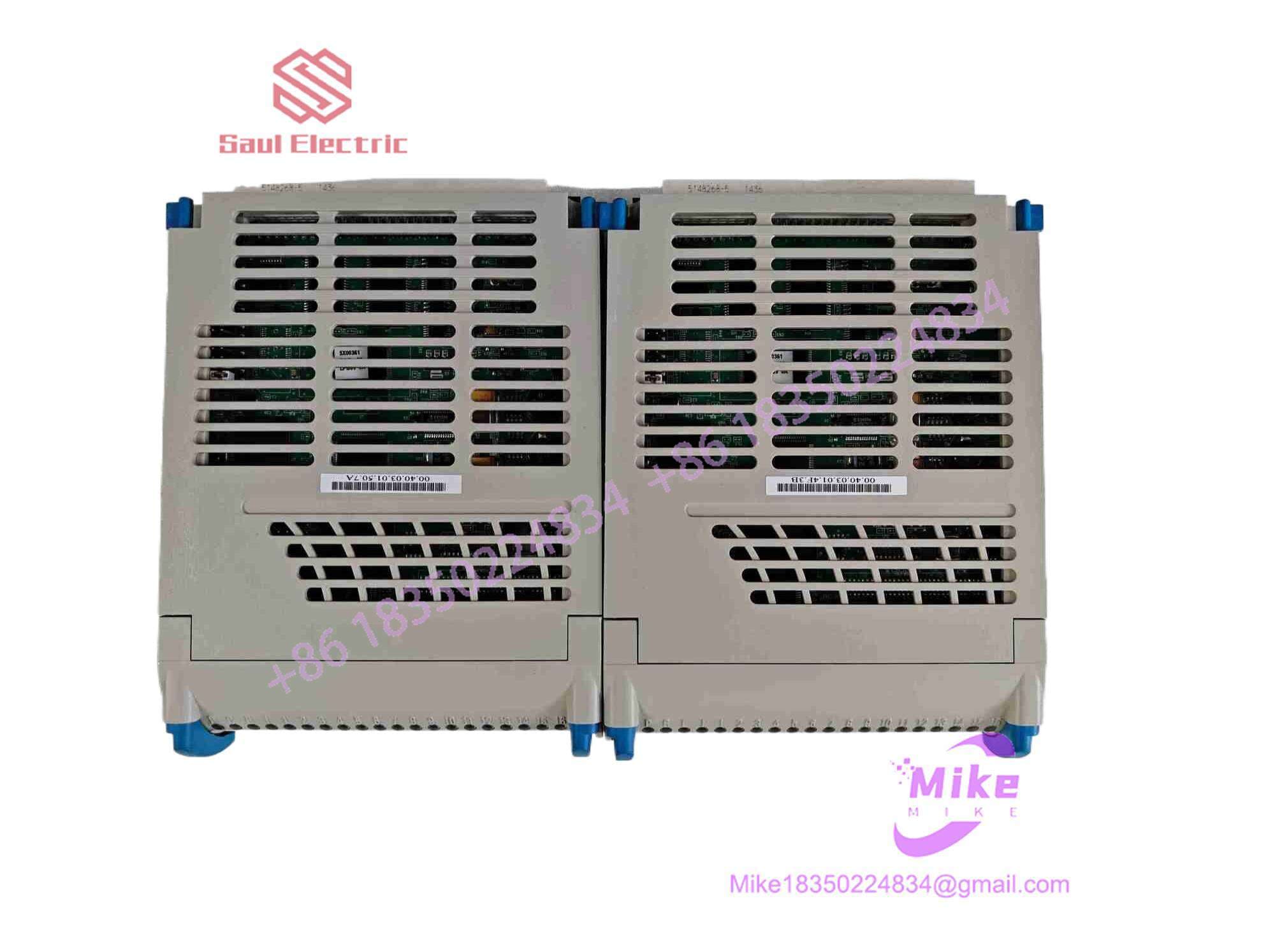

1C31194G03
1C31194G03
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 1C31194G03 |
| Manufacturer | Emerson / Westinghouse |
| System Platform | Ovation DCS Architecture |
| Primary Module Type | Servo Valve Positioner / Controller |
| Transducer Inputs | Dual LVDT / RVDT (AC excitation, 1 to 10 Vrms) |
| Excitation Frequency | 1.0 kHz to 5.0 kHz (Software configurable) |
| Servo Output | Bipolar current output up to ±100mA (Drive coil compatible) |
| Position Loop Latency | < 2 ms internal firmware execution cycle |
| Isolation Rating | 1,500V RMS (Field-to-Backplane & Field-to-Power) |
| Power Dissipation | ~6.5 Watts under full coil drive load |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Conformal Coating | Heavy-duty acrylic barrier for harsh field environments |
Application Scenarios & Pain Points
- Field Anecdote: A combined-cycle plant in Texas kept experiencing frequency hunting on their steam turbine governor valve due to phase lag on an aging servo driver board. Swapping in a bench-tested 1C31194G03 locked down the position loop tight within ±0.1% of setpoint, preventing a forced megawatt curtailment during peak summer grid demand.
- With vs. Without Contrast:
- Without 1C31194G03: The main CPU must process LVDT demodulation and calculate servo current outputs, creating bus communication latency that leads to valve overshoot or hunting during rapid load changes.
- With 1C31194G03: Closed-loop position calculations run locally on the card’s onboard processor, maintaining crisp, instantaneous hydraulic response regardless of controller scan times.
- Blunt Technical Conditions:
- Steam Turbine Throttle & Governor Control: Maintains microsecond position correction on electro-hydraulic actuators under shifting load demands.
- High-Vibration Hydraulic Skid Enclosures: Shielded front-end circuitry resists electromagnetic interference from adjacent high-voltage pump motors and generator buses.
QA & Live Testing SOP (Trust Signal)
We put every 1C31194G03 through comprehensive hardware-in-the-loop (HIL) validation before adding it to our ready-to-ship inventory:
- Visual & Trace Diagnostics: Inspection under high magnification to verify PCB trace integrity, component solder joints, and factory conformal coat coverage.
- Backplane Handshake Test: Mounted in an active Ovation chassis to confirm bus address recognition, internal power rail health, and diagnostic LED responses.
- HIL Valve Simulation: We connect the module to a simulated LVDT signal generator and a Fluke current meter to drive the ±100mA servo output across its full dynamic range, checking signal linearity, gain adjustments, and phase demodulation.
- ESD Safe Packaging: Sealed in static-shielding bags with fresh desiccant packs and shipped in custom high-density foam packaging.
Field Engineer’s Pitfall Guide
- ❗ LVDT Excitation Frequency Matching: Do not assume plug-and-play operation with your existing LVDTs. Verify that the excitation frequency and voltage levels configured in the Ovation Developer Studio match your specific valve transducer specs—a frequency mismatch will cause position feedback drift and erratic valve behavior.
- ❗ Servo Coil Wiring Polarity: Reversing the polarity on the ±100mA servo driver terminals will invert your control loop action. Upon initial power-up after replacement, always test valve stroke manually at 5% increments from the engineering station before enabling auto-positioning.
- ❗ Shielding Ground Loops: LVDT signal cables must have their shields grounded at the terminal block end only. Grounding both ends creates ground loops that inject 60Hz hum into the position feedback, triggering false position deviation alarms.
Intent-Driven FAQ
Can I replace a 1C31194G01 or G02 revision with this 1C31194G03 module?
In most Ovation system architectures, the G03 revision is backward-compatible with earlier board spins. However, check your software build and hardware configuration files in Ovation Developer Studio to confirm that the driver parameters and slot assignments match the G03 hardware profile.
How do I calibrate the zero and span settings for an LVDT connected to the 1C31194G03?
Calibration is performed via software through the Ovation Engineering Workstation valve positioning utility. The module reads the raw LVDT feedback voltages at full-close and full-open mechanical stops, storing the digital zero and span constants directly in memory.
What causes a “Servo Loop Fault” status LED on the front panel?
A Servo Loop Fault typically indicates an open circuit on the servo coil wiring, a feedback signal loss from the LVDT, or a position deviation error where actual position fails to track setpoint within a software-defined time limit.
Does this unit come pre-calibrated for my specific valve actuator?
No, valve positioner modules must be calibrated to your specific hydraulic valve stroke and LVDT voltage parameters after installation. We perform full electrical loop linearity testing prior to shipment to ensure the card’s driver hardware functions within OEM tolerance.
What field power is required to operate the LVDT excitation circuitry on the board?
The board generates its own AC excitation signal for the LVDTs using power derived from the Ovation backplane, though external field power may be required depending on your specific terminal base and hydraulic solenoid interlock setup.
What warranty coverage do you offer on this surplus module?
Every 1C31194G03 unit comes with a full 1-year operational replacement warranty covering all component and processing failures under normal plant operating conditions.
