Emerson KJ3242X1-BK1 | S-Series H1 Fieldbus Card
Product Introduction
When a DeltaV H1 segment drops offline, replacing the interface card is only one part of the recovery process. The replacement must match the installed S-Series hardware and terminal-block configuration, and the fieldbus segment must be checked before the system is returned to service.

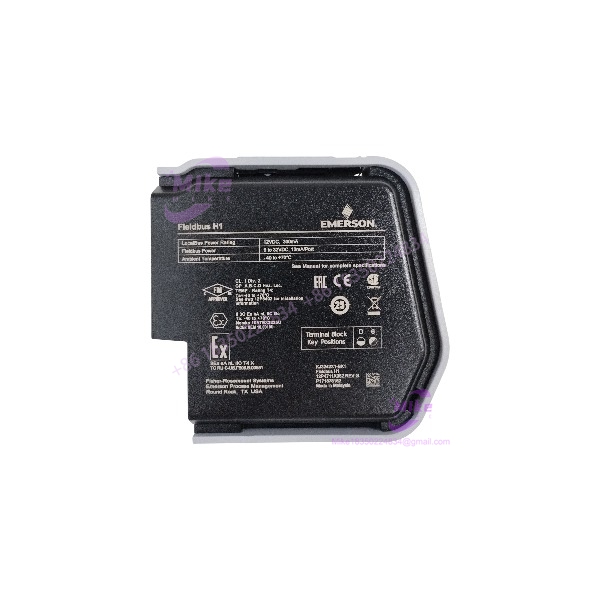

The Emerson KJ3242X1-BK1 is an S-Series H1 card intended for FOUNDATION Fieldbus communication in a DeltaV distributed control system. Emerson’s ATEX documentation specifies a 12 VDC LocalBus requirement at 300 mA and a fieldbus power specification of 9–32 VDC at 12 mA per port. It also identifies the D6 terminal-block key and provides installation restrictions for hazardous-area applications.
For maintenance teams and surplus-equipment buyers, this is a configuration-sensitive control-system spare. Confirm the full model number, terminal-block key, carrier arrangement, fieldbus wiring, and installed DeltaV hardware configuration before treating a candidate unit as a replacement.
KJ3242X1-BK1
Key Technical Specifications
- Manufacturer: Emerson
- Model: KJ3242X1-BK1
- System Platform: DeltaV S-Series
- Module Type: FOUNDATION Fieldbus H1 card
- LocalBus Power: 12 VDC at 300 mA
- Fieldbus Power: 9–32 VDC at 12 mA per port
- Terminal Block Key Position: D6
- Ambient Operating Temperature: −40°C to +70°C
- Shock Resistance: 10 g, half-sine wave, 11 ms
- Vibration Resistance: 1 mm peak-to-peak from 2–13.2 Hz; 0.7 g from 13.2–150 Hz
- Relative Humidity: 5–95%, non-condensing
- Airborne Contaminants: ISA-S71.04-1985, Class G3
- Maintenance: No user-serviceable parts; calibration not required
- Installation Reference: Emerson ATEX Instruction Sheet ATEX56
Emerson’s documentation is the reference for the listed electrical and environmental values. Confirm any additional network, redundancy, or system-version requirements against the actual DeltaV installation documentation.
Global Sourcing & Live-Test SOP
For a used or surplus KJ3242X1-BK1, visual inspection alone is not sufficient. A card can appear intact while still having damaged connectors, an incorrect terminal-block configuration, or a communication fault that only appears under operating conditions.
1. Inbound Verification
- Photograph the complete nameplate and all visible labels.
- Confirm the exact model: KJ3242X1-BK1.
- Record the serial number, revision, and manufacturing information.
- Inspect the card edge connector, housing, retaining features, and terminal-block interface.
- Verify the D6 terminal-block key against the installed system configuration.
- Check for corrosion, contamination, cracked components, bent contacts, or signs of previous repair.
- Compare the supplier’s stated condition with the physical unit received.
- Request traceability documentation where available; do not treat a supplier’s “new” or “original” claim as proof of OEM provenance.
2. Controlled Power-Up and Inspection
- Confirm that the test carrier and associated hardware are suitable for the S-Series card.
- Verify the applicable LocalBus supply and carrier configuration before energizing.
- Inspect startup status and available module diagnostics.
- Check for unexpected faults, resets, or abnormal behavior.
- Do not connect a live fieldbus segment until the test arrangement and wiring have been verified.
- Record the test setup, module revision, and observed status.
3. Fieldbus Communication Diagnostics
A powered card is not automatically a communication-ready spare.
- Confirm that the test setup supports the required FOUNDATION Fieldbus H1 configuration.
- Verify fieldbus wiring, segment power, termination, and connected-device compatibility.
- Check card status and controller-side diagnostics.
- Where a representative fieldbus test setup is available, verify device communication and inspect for intermittent faults.
- Record any diagnostic alarms, communication interruptions, or abnormal startup behavior.
- Do not certify the card as fully functional based only on a power-on test.
4. Extended Heat Run
Where the test facility and application permit, perform an extended powered run using a compatible carrier and representative communication load.
Monitor:
- Module startup and status
- Communication stability
- Unexpected resets
- LocalBus power behavior
- Abnormal temperature rise
- Diagnostic alarms or intermittent faults
Record the test duration, hardware revision, test configuration, and results. A heat run does not replace validation in the customer’s actual DeltaV configuration.
5. Final Preparation and Shipment
- Record the exact model and serial number.
- Document the terminal-block key and any included hardware.
- Preserve customer-supplied configuration information and project records.
- Protect the card edge connector against impact and contamination.
- Use ESD-safe packaging.
- Clearly distinguish tested, untested, used, and new-surplus condition.
- Do not claim factory-sealed condition or a specific warranty unless supported by the actual sale terms.
Field Engineer’s Pitfall Guide
❗ Do not insert or remove the card with system power energized
Emerson’s ATEX instruction sheet states that the unit cannot be removed or inserted with system power energized. Field power supplied at the terminal or as bussed power through the carrier must also be removed before connecting or removing the device. Follow the applicable DeltaV installation and hazardous-area procedures.
❗ Verify the D6 terminal-block key before installation
The S-Series card and terminal block use a rotary keying system to help prevent incompatible combinations. Confirm the terminal-block key and installed hardware configuration before fitting a replacement. A similar-looking card or terminal block should not be assumed compatible.
❗ Do not confuse supplier cross-references with confirmed OEM equivalence
Some third-party listings associate KJ3242X1-BK1 with ordering number 12P4711X032, while other listings provide incomplete or conflicting cross-reference information. Treat that association as a supplier-reported reference—not a substitute for verifying the full Emerson label and applicable system documentation.
Intent-Driven FAQ
What is the Emerson ?
The is an Emerson DeltaV S-Series FOUNDATION Fieldbus H1 card. It provides the H1 interface used to communicate with compatible field devices in a DeltaV control system.
What power does the require?
Emerson specifies LocalBus power of 12 VDC at 300 mA. The documented fieldbus power specification is 9–32 VDC at 12 mA per port. These values should not be interpreted as a complete field-segment power design; verify the segment’s power requirements separately.
Can the be hot-swapped?
Do not assume so. Emerson’s ATEX instruction sheet explicitly prohibits insertion or removal with system power energized. Follow the applicable system and hazardous-area installation instructions.
Which terminal block is associated with the ?
Emerson’s documentation identifies terminal-block key position D6. Verify the installed terminal block and system configuration before replacement.
Does the require periodic calibration?
Emerson’s ATEX instruction sheet states that calibration is not required and that the unit contains no user-serviceable parts.
Is the suitable for hazardous-area installations?
Emerson publishes hazardous-area installation and certification information for this card. Suitability depends on the specific approval, installation method, field-circuit assessment, and area classification. Review the OEM documentation and the plant’s hazardous-area requirements before installation.
What should be checked before buying a replacement ?
Confirm the full model number, serial number, revision, card condition, D6 terminal-block key, system compatibility, and supplier test evidence. For a production system, also verify fieldbus configuration and applicable installation restrictions before returning the card to service.
Bottom Line for Buyers
The is a DeltaV S-Series FOUNDATION Fieldbus H1 card with a documented 12 VDC LocalBus requirement, 9–32 VDC fieldbus specification, and D6 terminal-block key.
For replacement procurement, prioritize exact model verification, terminal-block compatibility, hardware condition, and documented test results. Confirm the complete product label and system requirements before approving a surplus unit for operational use.
