Emerson KJ2201X1-PW1 | Ovation SIS Logic Solver
Product Introduction
In a safety instrumented system, the logic solver is a core part of the protection architecture. The Emerson KJ2201X1-PW1 is identified in Emerson’s AMS Device Manager documentation as an Ovation SIS Logic Solver, with Version 1 or higher referenced for supported-system integration.
That distinction is important when sourcing legacy hardware. The KJ2201X1-PW1 should not be confused with similarly numbered DeltaV SIS terminal blocks or assumed to be a drop-in replacement for another KJ2201X1 variant. System platform, hardware revision, configuration, and approved application all need to be confirmed before installation.
For procurement teams, the practical approach is to verify the complete nameplate, establish the target Ovation SIS configuration, and request documented hardware identification and test results. A supplier’s generic product description is not sufficient evidence of safety-system compatibility.

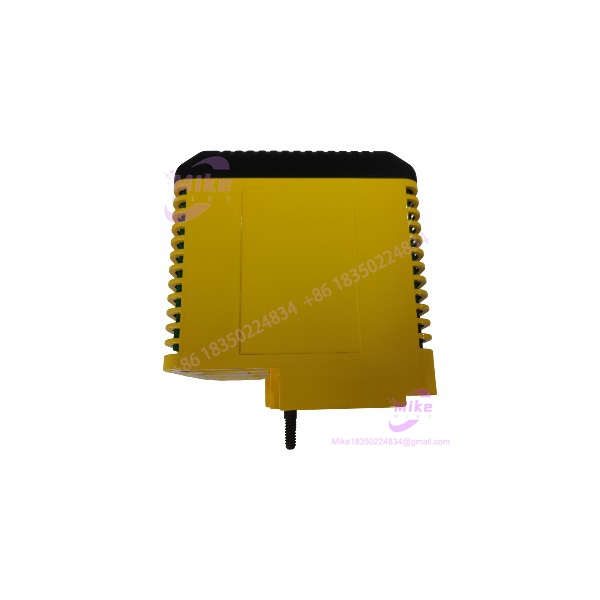

KJ2201X1-PW1
Key Technical Specifications
- Model Number: KJ2201X1-PW1
- Manufacturer: Emerson
- Product Platform: Ovation
- Device Classification: SIS Logic Solver
- System Role: Safety instrumented logic execution
- Documented Software/System Reference: Ovation SIS Logic Solver, Version 1 or higher
- Supported-System Reference: Emerson AMS Device Manager Planning and Installation Guide
- Hardware Revision: Verify from the actual unit label
- Ordering Number: Confirm from the nameplate and OEM records
- Power Input: Verify against the exact hardware documentation
- Communication Interfaces: Confirm from the applicable Ovation SIS hardware documentation
- Chassis Compatibility: Confirm against the installed Ovation SIS system
- Safety Certification: Do not infer a SIL rating for a specific unit without applicable OEM certification and system documentation
- Operating Temperature: Verify against the model-specific OEM specification
- Condition: Must be established from the offered unit and seller’s inspection records
Specification note: Emerson’s available AMS documentation supports the model’s identification as an Ovation SIS Logic Solver. The additional detailed electrical and mechanical specifications commonly repeated by surplus sellers are not sufficiently established by the cited OEM reference, so they are intentionally omitted rather than presented as verified facts.
Global Sourcing & Live-Test SOP
For a used or surplus KJ2201X1-PW1, acceptance should focus on traceability, hardware condition, and validation within the correct Ovation SIS environment. A generic power-up test is not enough to qualify a safety logic solver for operational service.
1. Inbound Verification
- Photograph the full nameplate and all visible labels.
- Confirm the exact KJ2201X1-PW1 model designation.
- Record the serial number, hardware revision, and ordering number.
- Compare the offered unit against the target system’s bill of materials.
- Inspect connectors, board surfaces, housing, and mounting features.
- Check for corrosion, contamination, bent contacts, or signs of unauthorized repair.
- Request available OEM documentation and traceability records.
- Treat conflicting supplier descriptions as a verification issue, not as proof of alternate functionality.
2. Controlled Power-Up
- Use only a compatible, approved Ovation SIS test setup.
- Confirm the required supply and connection details from the applicable OEM documentation.
- Do not apply a generic 24 VDC supply based solely on reseller claims.
- Observe startup indicators and diagnostic behavior.
- Monitor for abnormal current draw, overheating, or unexpected resets.
- Record the test equipment and conditions used.
3. System and Logic-Solver Diagnostics
- Confirm recognition by the intended Ovation SIS infrastructure.
- Verify hardware identity and revision through the supported engineering or maintenance tools.
- Review available diagnostics and fault indications.
- Confirm compatibility with the intended system configuration.
- Do not load or alter safety application logic without authorization and a verified recovery plan.
- Record all diagnostic results and test limitations.
4. Extended Test and Condition Reporting
Perform an extended powered test only within an approved, compatible test environment.
Monitor:
- Startup consistency
- Diagnostic stability
- Controller recognition
- Communication behavior
- Unexpected resets
- Abnormal temperature rise
Record the actual test duration, setup, and results. Do not claim a 24-hour burn-in, full functional test, or safety validation unless those procedures were completed and documented.
5. Final Preparation and Shipment
- Record model, serial number, ordering number, and revision.
- Photograph the nameplate and connectors.
- Preserve any included OEM documentation.
- Use ESD-safe handling and protective packaging.
- Clearly state the actual condition: used, refurbished, or unused surplus.
- Identify seller warranty terms separately from any verified OEM warranty.
- Do not represent the unit as safety-validated or ready for production solely on the basis of a bench power-up.
Field Engineer’s Pitfall Guide
❗ Do not confuse Ovation SIS with DeltaV SIS terminal hardware
The is referenced by Emerson as an Ovation SIS Logic Solver. Other KJ2201X1 models, such as HA1 and JA1 variants, are associated with DeltaV SIS terminal-block applications. Verify the exact model and target platform before purchasing.
❗ Do not rely on unverified reseller electrical specifications
Some supplier listings assign generic 24 VDC, channel-count, response-time, or dimensional vathe . Those details should not be treated as authoritative without matching OEM documentation. Confirm power, chassis, and interface requirements before energizing the unit.
❗ A logic-solver replacement requires system-level validation
A successful startup does not prove that the controller is compatible with the installed safety application or that the safety function is restored. Replacement and recommissioning must follow the site’s approved Ovation SIS procedures, including the required application and safety verification.
Intent-Driven FAQ
What is son ?
The is identified in Emerson documentation as an Ovation SIS Logic Solver. It is associated with safety instrumented system applications.
the a DeltaV SIS terminal block?
It should not be classified as a DeltaV SIS terminal block. Emerson’s AMS documentation idethe as an Ovation SIS Logic Solver. Confirm the target system and complete model designation before procurement.
What is the ordering numthe ?
Ordering-number references vary across supplier listings. Verify the actual unit’s nameplate and Emerson documentation rather than relying on an unconfirmed reseller cross-reference.
What power suppthe require?
The applicable supply requirement should be confirmed from the model-specific OEM hardware documentation. Do not assume a voltage based solely on generic supplier listings.
the be hot-swapped?
Do not assume hot-swap capability. Follow the applicable Ovation SIS hardware instructions and site isolation procedures before removing or installing the unit.
the obsolete?
It is a legacy Ovation SIS component encountered through industrial surplus channels. Confirm current lifecycle status, OEM support, and replacement guidance with Emerson for the exact model and revision.
What should I verify before buying a replacement?
Confirm the full model number, nameplate, serial number, hardware revision, ordering number, Ovation SIS compatibility, and seller’s actual test documentation. For safety-related service, require the appropriate system-level verification before returning the equipment to operation.
Bottom Line for Buyers
The is documented as an Ovation SIS Logic Solver. It should be sourced and qualified as a safety-system controller—not misidentified as a DeltaV terminal block based on the shared prefix.
For procurement, request clear nameplate photographs, verify the intended Ovation SIS platform, and obtain model-specific OEM documentation before confirming electrical compatibility. Treat seller claims about condition, testing, certification, and warranty as unverified until supported by evidence.
