Emerson 5X00481G04 | Ovation Controller CPU Processor Module
Architect’s Product Breakdown
The Emerson Ovation 5X00481G04 is an advanced Central Processing Unit (CPU) module engineered for OCR1100-series Ovation Controllers. Positioned as the core computational engine within the controller chassis assembly (such as the 5X00225G01 base), the 5X00481G04 executes heavy-duty modulating control, sequential logic blocks, plant safety interlocks, and high-density Sequence-of-Events (SOE) timestamping for critical power plants and continuous processing facilities.
Building upon earlier revision iterations, the G04 hardware variant delivers enhanced bus arbitration and thermal stability across multi-tasking execution cycles. It features high-speed tracking memory hardware that maintains continuous synchronization between Primary and Backup controller drops. This enables instantaneous, “bumpless” failovers when a primary processor encounters an internal error, ensuring zero bump on active field valve positions or turbine speed loops.
In large-scale DCS maintenance windows, matching hardware revisions like the 5X00481G04 is vital for maintaining timing margins on high-speed backplane buses. Inserting an incompatible or earlier processor revision into a redundant drop pair can lead to memory tracking sync timeouts, forcing the secondary drop into a offline state. Swapping in an exact-match 5X00481G04 guarantees immediate hardware recognition and rapid software restoration from Developer Studio during tight outage schedules.

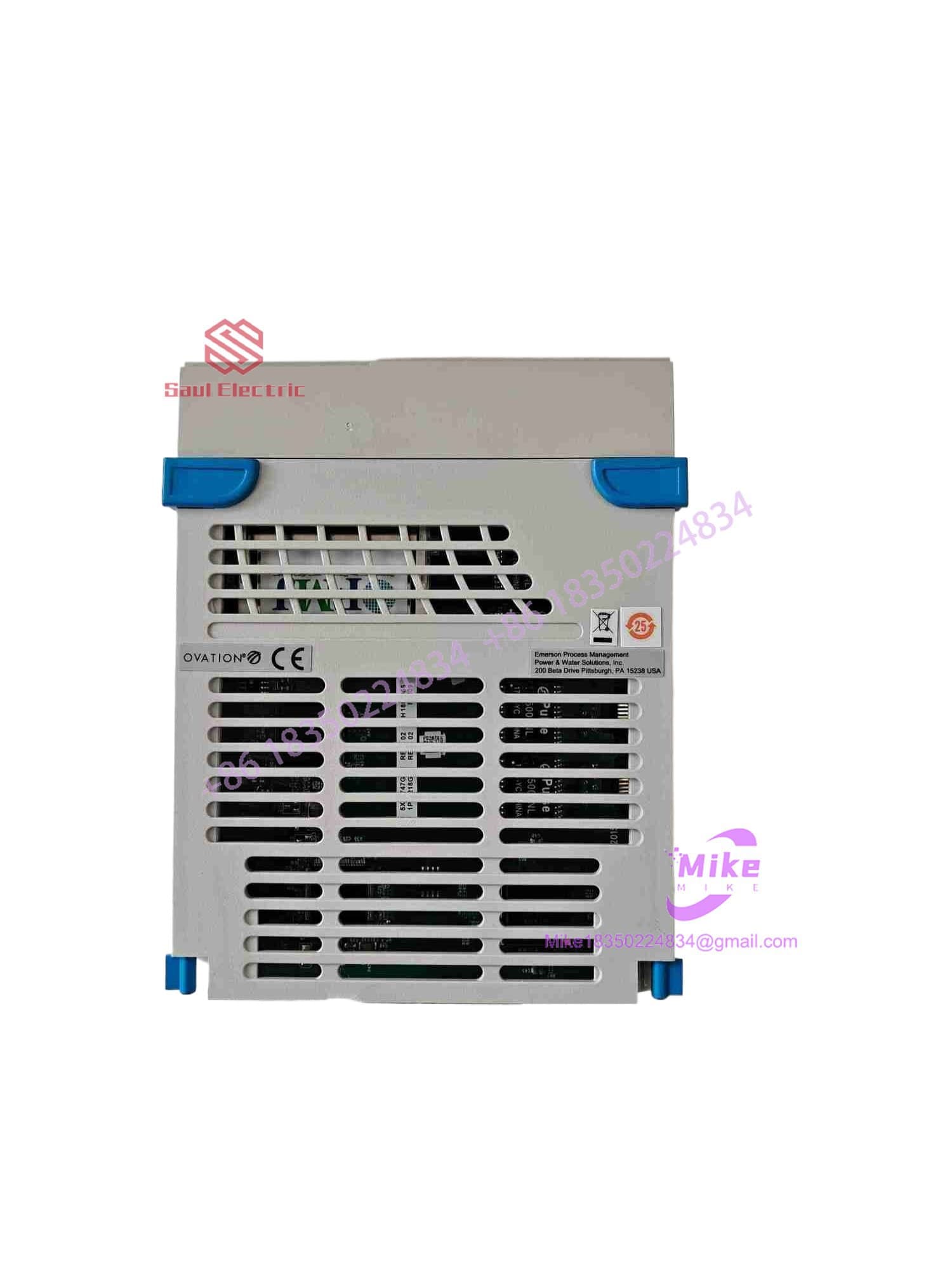

5X00481G04
Key Technical Specifications
| Parameter | Specification / Value |
| Component Type | Central Processor Unit (CPU) Controller Board |
| System Architecture | Emerson Ovation OCR1100 Controller Drops |
| Processor Type | High-Performance Industrial RISC Processor |
| Backplane Interconnect | CompactPCI High-Speed Local Bus |
| Memory Allocation | Onboard SDRAM + Flash EEPROM for firmware & logic |
| Failover Performance | Sub-millisecond bumpless redundant tracking transfer |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Form Factor | High-density multi-pin backplane card module |
Field Engineer’s Pitfall Guide
WARNING: Unaligned Redundant Controller Firmware/Kernel Builds
I’ve seen a combined-cycle plant lose automatic controller failover protection for 36 hours because an engineer installed a 5X00481G04 into Drop A without aligning its low-level kernel firmware to Drop B. Even when the physical model numbers match perfectly, mismatched underlying bootrom or OS image versions will prevent the high-speed memory tracking bus from initializing. Always verify and align kernel levels using Developer Studio diagnostic tools before placing a new CPU into an active redundant pair.
WARNING: Unseated Card Locks & Backplane Stress
The multi-pin CompactPCI edge connectors on the rear of the 5X00481G04 require firm, level insertion. Never force the module in using the top or bottom edge alone; use both top and bottom ejector handles simultaneously to pull the card straight into the backplane. Uneven seating can bend ground pins or cause partial power contact, leading to erratic bus fault alarms during boot.
WARNING: Static Sensitivity During Card Swaps
The onboard high-density RAM and tracking bus transceivers are highly susceptible to electrostatic discharge (ESD). Technicians must wear a grounded ESD wrist strap before pulling the card from its static-shielding sleeve or handling it near open controller cabinets.
QA & Testing SOP
Every 5X00481G04 Processor Module completes a 4-stage technical verification prior to release:
- Microscopic Visual & Connector Audit: Optical magnification inspection of multi-pin backplane edge connectors, surface-mount IC solder joints, ground plane integrity, and OEM serial verification labels.
- Backplane Boot & POST Diagnostic: Installed into a live Ovation OCR controller test chassis. Power-up self-tests (POST), logic rail stability, and bootloader routines are monitored via serial console logs.
- Redundant Tracking & Full-Load Stress Test: Loaded with a standard 32,000-point database in a redundant test rig. Continuous high-speed execution loops and active-to-backup failover sequences are run continuously for 24 hours under full load.
- Thermal Stability & Static-Shield Packaging: Tested in an elevated thermal chamber to verify clock stability, cleaned using ESD-safe protocols, and sealed in static-shielding wrap with protective edge covers.
Technical FAQ
Will installing a replacement 5X00481G04 clear my plant’s control program?
The replacement CPU module contains factory bootloader code and flash memory, but will not carry your specific plant database. Once installed, you must perform a drop configuration download from your Ovation Developer Studio engineering station to restore control logic and point definitions.
Can I hot-swap the 5X00481G04 while the controller drop is actively controlling the process?
No. You must never pull a CPU card from an active standalone controller drop. In a redundant pair (Drop A and Drop B), verify that the partner drop is fully synchronized and holding “PRIMARY” status, force control over if necessary, and completely power down the target chassis before extracting the CPU card.
What causes a red “HALT” diagnostic LED state on the front panel?
A HALT LED indicates an internal self-test failure, corrupt flash memory, or a bus timeout during boot. Try clearing the drop memory and re-downloading the database from Developer Studio. If the HALT state appears immediately upon power application before network initialization, the card has experienced an internal hardware memory fault and needs replacement.
Is the 5X00481G04 fully backward compatible with G01 or G02 revisions?
In single, non-redundant drops, the G04 revision can typically replace earlier revisions like G01 or G02 without issue. However, in redundant controller drops, both Drop A and Drop B should run matching hardware revisions to ensure identical memory tracking timing parameters.
