Emerson 5X00419G02 | Ovation Ethernet Link Controller Module

Description

Emerson 5X00419G02 | Ovation Ethernet Link Controller Module

Architect’s Product Breakdown

The Emerson Ovation 5X00419G02 is an Ethernet Link Controller (ELC) module built to handle real-time data transport and time synchronization between Ovation OCR controllers, engineering workstations, and third-party subsystem gateways. Positioned in the controller base chassis, the G02 hardware revision provides a dedicated, hardware-isolated network bridge that offloads heavy TCP/IP protocol stacks and fast-packet routing tasks directly from the main process controller CPU.

By managing deterministic, full-duplex 10/100 Mbps Ethernet communication streams natively, the 5X00419G02 prevents network broadcast storms and high-volume SCADA polling queries from degrading controller scan execution times. The module supports precise sequence-of-events (SOE) time stamping across distributed drops, maintaining 1-millisecond resolution required for sequence troubleshooting in turbine trip circuits and electrical switchgear interfaces.

In live plant environments, upgrading or replacing a network interface card requires strict hardware revision alignment to preserve network packet handling parameters. A failed or mismatched ELC card can manifest as intermittent “Drop Offline” alarms, delayed operator graphics updates, or dropped peer-to-peer controller communication frames. Replacing a degraded card with an exact 5X00419G02 module restores link stability and cyber-security compliance (including Achilles Level 1 network protection) without requiring network switch topology changes or controller drop database re-flashing.

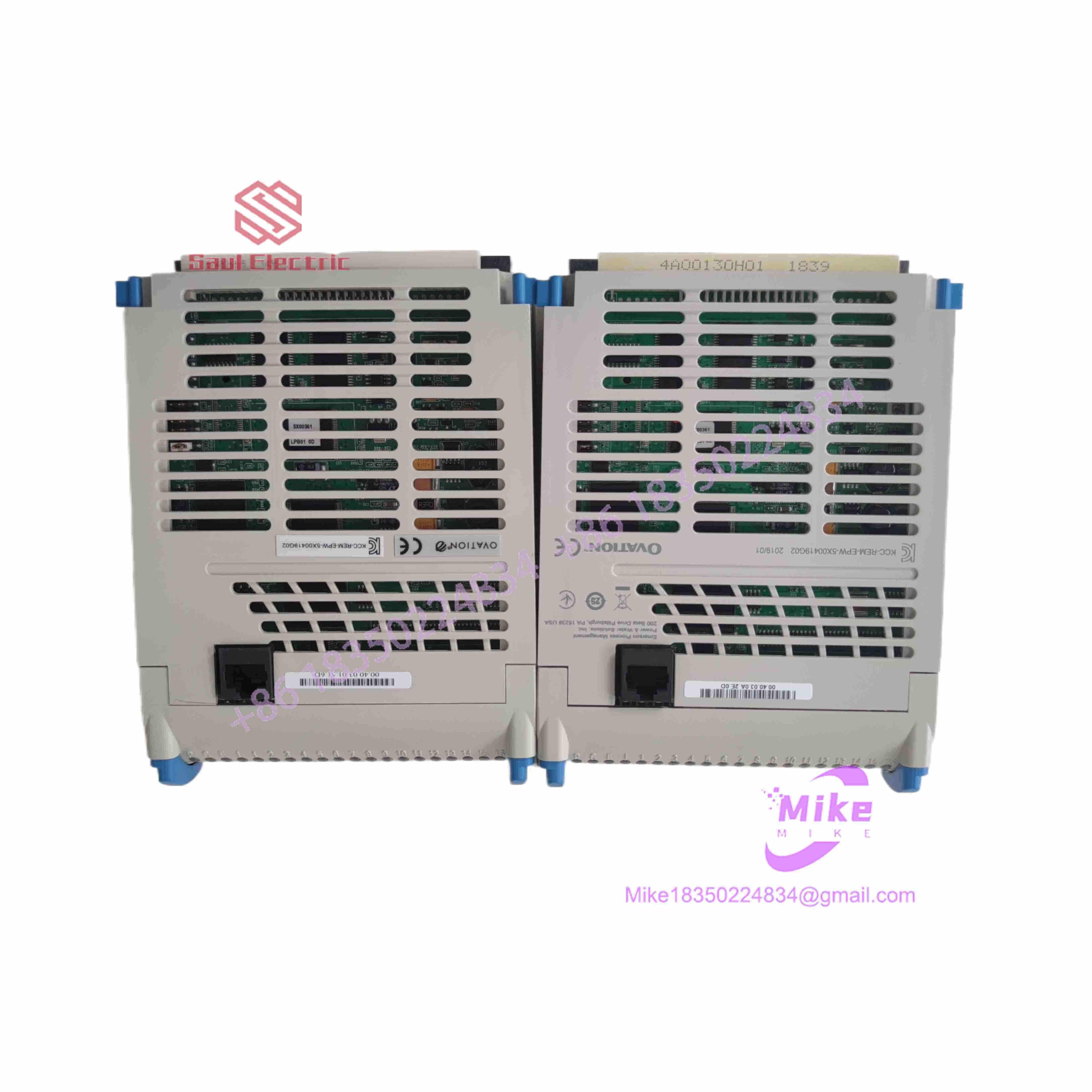

5X00419G02

Key Technical Specifications

Field Engineer’s Pitfall Guide

WARNING: Duplex Auto-Negotiation Mismatch

When connecting the 5X00419G02 to managed industrial Ethernet switches (such as Cisco IE-3000 or Hirschmann series), never leave both ends set to auto-negotiate if the switch port is hardcoded to 100Mbps Full Duplex. A duplex mismatch will cause severe packet collision rates and dropped network frames, leading to intermittent controller tracking failures between redundant drops.

WARNING: Unaligned IP & Subnet Address Configurations

I’ve seen commissioning crews lose 6 hours during a unit startup because a replacement 5X00419G02 card refused to communicate on the Ovation network segment. The issue wasn’t defective hardware; the technician swapped the card without updating the drop’s network configuration file in Developer Studio to bind the card’s MAC address with its assigned static IP on the primary control network. Always verify network node assignments before putting the drop back online.

WARNING: Incorrect Cable Shield Grounding

Always use industrial-grade, double-shielded Category 5e/6 STP (Shielded Twisted Pair) patch cables with metallic RJ45 connectors when wiring the ELC port to cabinet patch panels. Failing to establish a continuous 360-degree shield connection lets high-frequency ground noise from nearby high-voltage drives couple into the network lines, corrupting high-speed packet transmissions.

QA & Testing SOP

Every 5X00419G02 ELC module undergoes a 4-step hardware qualification prior to shipment:

1. Physical & RJ45 Connector Inspection: Microscopic audit of edge connector gold contacts, board solder joint integrity, LED status light assembly, and RJ45 physical port alignment.
2. Backplane & Power-Up Diagnostics: Inserted into a live Ovation OCR controller chassis to confirm 5 V/24 VDC power rail stability, onboard clock generation, and controller bus initialization routines.
3. High-Throughput Network Traffic Stress Test: Connected to an active Ovation control network simulator. Continuous 100 Mbps data packet exchanges, peer-to-peer controller communications, and SOE clock sync sweeps are executed under heavy load to confirm zero packet loss.
4. Thermal Soak & Static-Shield Packaging: Operated under full network load in an elevated thermal chamber, cleaned using anti-static procedures, and sealed in static-shielding wrap with protective port caps.

Technical FAQ

Does the 5X00419G02 module require onboard IP address DIP-switch configuration?

No. Network addresses (IP, subnet mask, and gateway settings) are assigned software-side within Ovation Developer Studio and pushed dynamically to the module upon controller drop initialization and boot-up.

Can I hot-swap the 5X00419G02 while the Ovation Controller drop is running?

If the controller drop is running in a redundant pair (Drop A and Drop B) and Drop B is currently active in “PRIMARY” control mode, you can safely power down and replace the 5X00419G02 in Drop A. However, pulling the card from an active standalone controller drop will immediately break network links to workstations and peer drops.

What do the front panel LED indicators mean on the 5X00419G02 card?

The module features diagnostic LEDs indicating power state, local module diagnostic/health status, network link activity (LINK), and packet transmit/receive status (TX/RX). A flashing red or amber diagnostic LED indicates a self-test failure or backplane bus communication timeout.

Is the 5X00419G02 compatible with older Ovation software releases (e.g., Version 2.8 or 3.0)?

Yes, the 5X00419G02 hardware revision is widely supported across legacy and modern Ovation software releases. However, you should always check your specific Ovation system build release notes to confirm if any specific controller patch or network driver update is required.
