Emerson 5X00070G04 | Ovation DCS Millivolt Analog Input E-MOD
Product Introduction

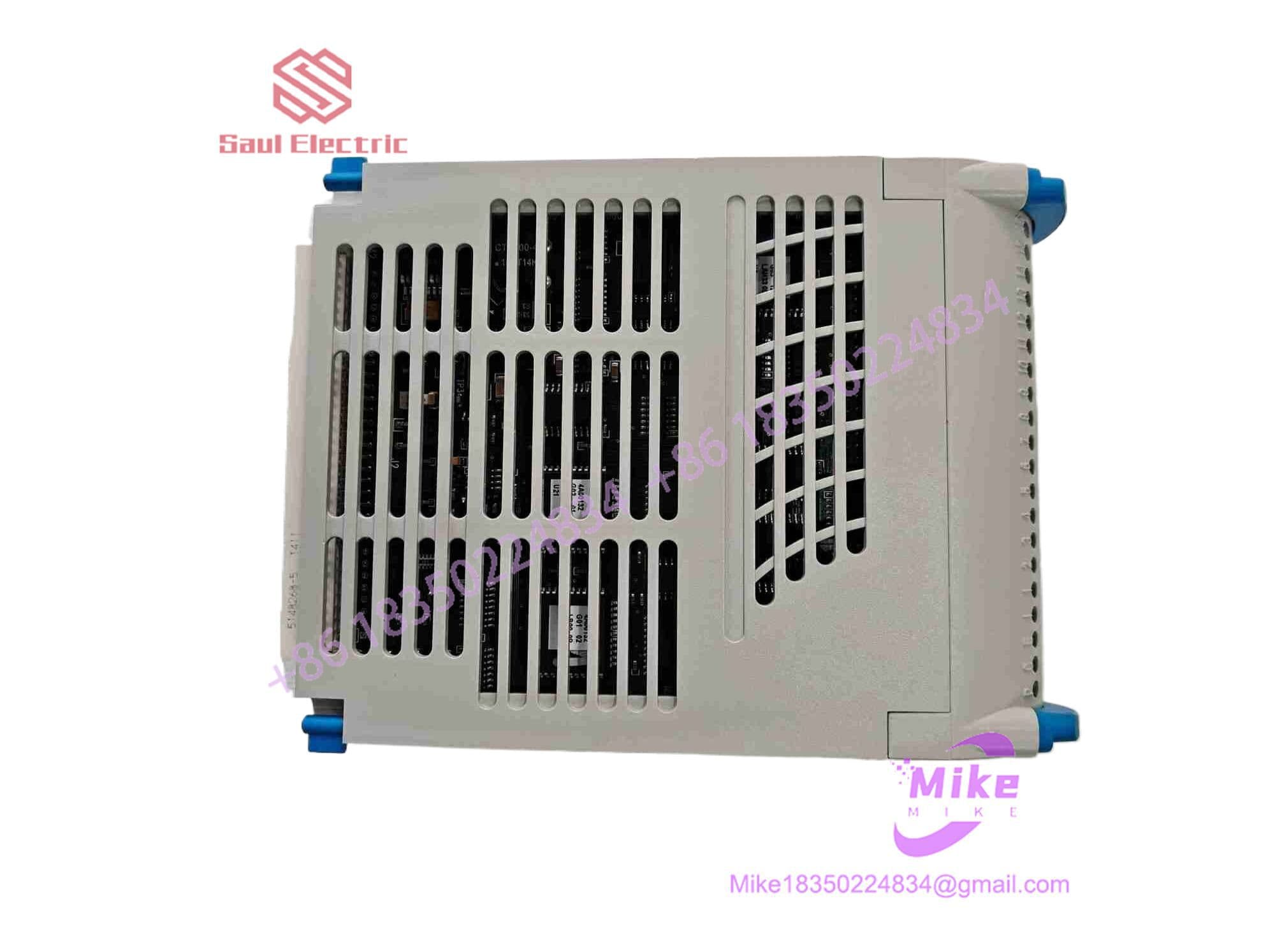

The 5X00070G04 is an 8-channel Electronics Module (E-MOD) designed for low-level millivolt signal acquisition within the Emerson (Westinghouse) Ovation Distributed Control System (DCS). It specializes in measuring sensitive, low-amplitude voltage signals—such as direct millivolt outputs from thermocouples, radiation pyrometers, and specialized process transducers.
Operating in tandem with a compatible Ovation Personality Module (P-MOD), the 5X00070G04 converts raw field millivolt inputs into precise digital values while providing high dielectric isolation (1500 VAC) to shield delicate control backplane electronics from field noise and ground loops. Replacing an aging or damaged 5X00070G04 module restores temperature measurement precision, eliminates channel drift, and prevents false thermal trips across critical boilers, turbines, and chemical reactors.
5X00070G04
Key Technical Specifications
| Parameter | Technical Specification |
| Manufacturer | Emerson Process Management / Westinghouse |
| Part Code | 5X00070G04 |
| System Compatibility | Emerson Ovation DCS |
| Module Type | Millivolt Analog Input Electronics Module (E-MOD) |
| Number of Channels | 8 Differential Input Channels |
| Selectable Ranges | ±20 mV, ±50 mV, ±100 mV |
| Input Impedance | 10 MΩ |
| Measurement Accuracy | ±0.1% of reading |
| Sampling Performance | Medium-Speed A/D conversion (~1000 samples/sec max) |
| Dielectric Isolation | 1500 VAC (Channel to Logic / Chassis) |
Application Scenarios & Pain Points
Field Experience: A combined-cycle power plant experienced erratic temperature spikes on turbine bearing thermowells. Diagnostic logs showed signal jitter caused by noise coupling into an aging millivolt input card. Swapping in a bench-tested 5X00070G04 module re-established clean signal resolution at the ±50 mV level and cleared the false high-temperature alarm latches.
- With Genuine 5X00070G04: Precise 0.1% measurement accuracy on low-level signals, stable zero-point calibration, robust 1500 VAC noise isolation, and rapid channel scan cycles.
- Without (Failing or Uncalibrated Card): Channel drift, loss of thermocouple cold-junction integrity, signal saturation from ground loops, and unwanted process trips due to measurement noise.
- Power Generation Plants: Reads low-voltage thermal transducers monitoring steam headers, turbine casings, and generator stator windings.
- Petrochemical & Metal Processing: Monitors direct millivolt outputs from specialized high-temperature pyrometers and furnace sensors.
QA & Live Testing SOP (Trust Signal)
Every 5X00070G04 module pulled from inventory undergoes rigorous multi-step bench qualification prior to shipment:
- Visual & Board Inspection: We inspect surface-mount components, gold-finger backplane connections, and housing clips for physical wear, corrosion, or thermal stress.
- Precision Voltage Injection Test: Using a micro-calibrator, precise millivolt signals (e.g., 10 mV, 45 mV, 90 mV) are injected into each of the 8 channels across the ±20 mV, ±50 mV, and ±100 mV ranges to confirm A/D linearity and ±0.1% accuracy.
- Common-Mode & Isolation Audit: High-voltage isolation testing verifies 1500 VAC dielectric protection between signal input pins and logic grounds.
- Thermal Stability Scan: The card is tested under elevated operating temperatures to verify zero thermal drift on high-gain internal amplifiers.
- Anti-Static & ESD Protective Packaging: Verified modules are cleaned with anti-static solution, sealed in ESD protective shielding, and packed into custom foam-lined shipping boxes.
Field Engineer’s Pitfall Guide
- ❗ Check Signal Range Configuration (G02 vs. G03 vs. G04): The 5X00070 family uses different group suffixes for specific voltage ranges. The G04 is tailored for low-level millivolt ranges (±20 mV, ±50 mV, ±100 mV). Replacing a G04 with a high-voltage variant (like G03 for 5V/10V) will cause incorrect signal scaling in the Ovation controller software.
- ❗ Match Mating P-MOD Correctly: Ensure the 5X00070G04 E-MOD is plugged into the correct Ovation personality module configured for differential low-voltage inputs.
- ❗ Shielding and Grounding: Because millivolt signals are highly susceptible to electromagnetic interference (EMI), ensure field signal cable shields are grounded at one end only (preferably at the cabinet entry bar) to prevent ground loops.
Intent-Driven FAQ
Q: What type of signals does the Emerson Ovation 5X00070G04 module measure?
A: It is designed to measure low-level millivolt signals across selectable ranges of ±20 mV, ±50 mV, and ±100 mV.
Q: What is the difference between an E-MOD and a P-MOD in Ovation systems?
A: The 5X00070G04 is an Electronics Module (E-MOD) containing the A/D converters and logic circuitry. It plugs into a passive Personality Module (P-MOD) that holds field terminal wiring connections.
Q: How many channels are available on the 5X00070G04?
A: It features 8 differential input channels.
Q: Does this module support high-voltage inputs (e.g., 0–10V or 4–20mA)?
A: No. The G04 variant is specifically configured for low-level millivolt ranges. Higher voltage ranges or current loops require alternative group variants (e.g., 5X00070G03 or standard mA input cards).
Q: What condition are these units supplied in, and what warranty applies?
A: We supply fully bench-tested New Surplus and reconditioned original Emerson/Westinghouse units. Every 5X00070G04 module includes a 1-year functional replacement warranty and complete QA test clearance.
