Emerson 1C31234G01 | 16-Channel 24/48VDC Digital Input Module
Product Introduction
While standard I/O cards handle everyday cabinet signals, high-density drop configurations demand cards that won’t cook themselves inside tightly packed DIN enclosures. Slipping directly into standard Ovation I/O base units, the 1C31234G01 processes up to 16 discrete field contacts—wet or dry—without requiring external signal-conditioning racks. Its compact footprint handles sequence-of-events monitoring and interlock loops across power generation and heavy processing plants.
Operating across an expanded 24 VDC to 48 VDC range, this module processes contact closures with an internal hardware response time under 5 ms. Optical channel isolation prevents field-side ground loops from propagating into the main controller backplane—though cabinet temperatures still need to stay under 60°C for long-term component survival. Instead of gambling on worn third-party pulls that drop channels under bus load, this genuine OEM card delivers deterministic scan execution on every cycle.

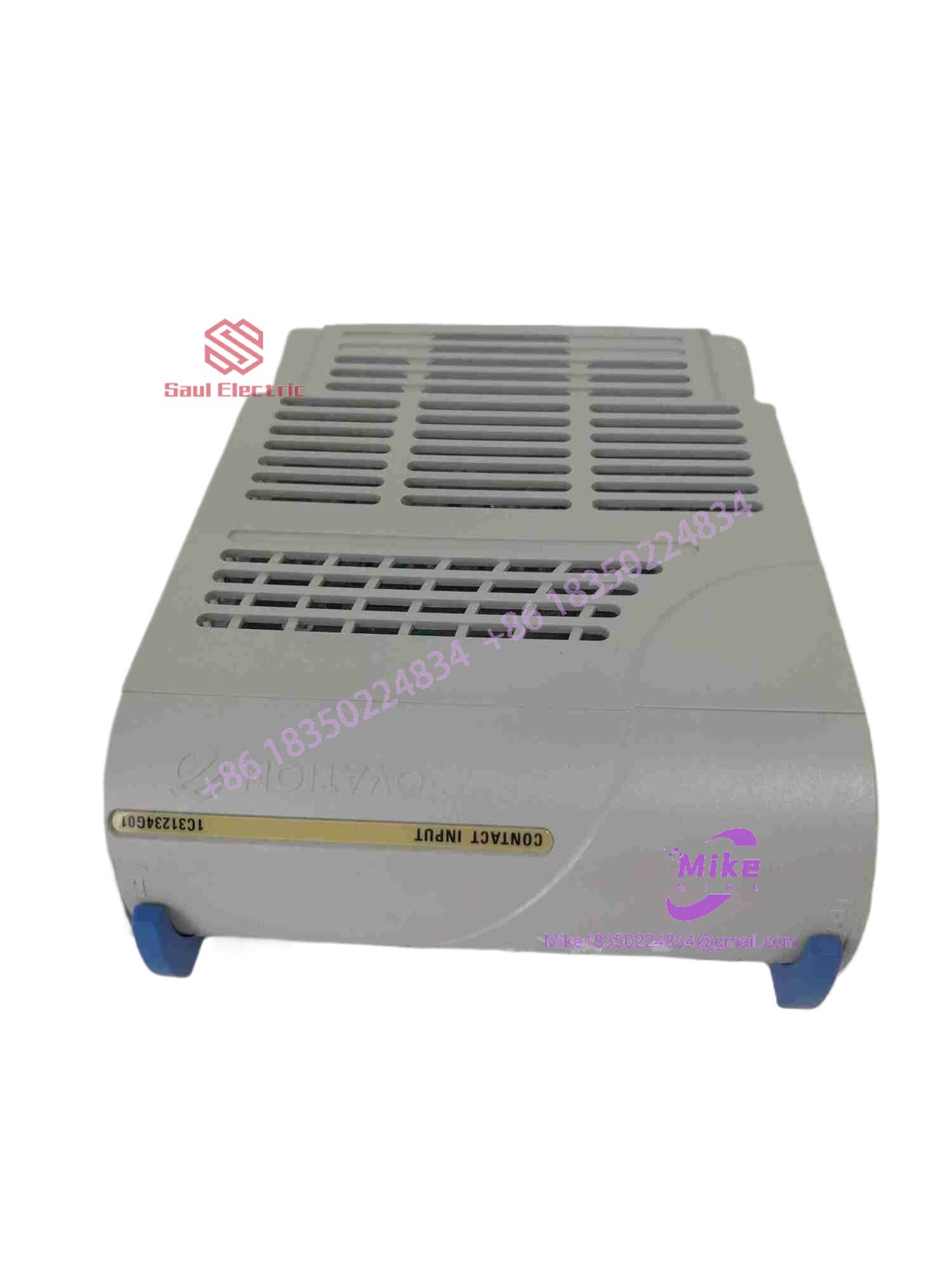

1C31234G01
Key Technical Specifications
| Parameter | Technical Specification |
| Manufacturer | Emerson Automation Solutions (Westinghouse) |
| Part Number | 1C31234G01 |
| System Architecture | Ovation Distributed Control System (DCS) |
| Module Type | 16-Channel Compact Digital Contact Input |
| Nominal Operating Voltage | 24 VDC to 48 VDC |
| Channel Count | 16 Optically Isolated Channels |
| Input Impedance | >100 kΩ (nominal) |
| Response Time | <5 ms |
| Contact Compatibility | Form A, Form B, and Form C Dry/Wet Contacts |
| Isolation Rating | 1500V RMS channel-to-bus optical isolation |
| Power Dissipation | ~5.0 Watts maximum |
| Operating Temperature | -40°C to +60°C (-40°F to 140°F) |
Application Scenarios & Pain Points
Field Experience: A combined-cycle plant in Texas suffered intermittent false trips on its cooling tower fan interlocks due to 48V auxiliary power line sags. The existing input card couldn’t handle the voltage dip, misinterpreting it as an open contact. Installing the 1C31234G01 allowed the team to take advantage of its wider 24–48VDC operating window, smoothing out the voltage variance and ending spurious trips during motor starts.
- With Genuine 1C31234G01: Rapid sub-5ms contact acquisition, zero backplane communication stalls, and clean channel isolation across all 16 inputs.
- Without (Degraded / Salvaged Card): Phantom contact chatter alarms, corrupt sequence-of-events (SOE) time-stamping, and unexpected module fault flags on the operator station.
- High-Density Turbine Trip Interlocks: Handles critical emergency stop pushbuttons and pressure switches where logic execution speed prevents thermal equipment damage.
- 48VDC Station Battery Infrastructure: Direct connection to utility-grade 48VDC breaker status contacts without needing external dropping resistors or voltage converters.
QA & Live Testing SOP (Trust Signal)
Every 1C31234G01 shipping from our facility undergoes a rigorous bench-testing SOP to guarantee field reliability:
- Visual & Structural Audit: We inspect the connector pins under high magnification to check for micro-fractures, physical wear, or trace oxidation.
- Backplane Power & Handshake: The module is seated into an active Ovation base connected to a live controller drop to confirm immediate hardware detection and firmware handshakes.
- 16-Channel Voltage Loop Sweep: We put this on a Fluke calibrator to sweep voltages from 18 VDC to 52 VDC across all 16 channels, confirming state transition thresholds, optocoupler integrity, and noise-rejection filtering.
- ESD Shielding & Packaging: Tested boards pass clean isolation checks before being sealed in static-shielding bags with high-density foam framing.
Field Engineer’s Pitfall Guide
- ❗ Check Voltage Level Field Jumpers: Do not assume the base is factory-set for your field voltage. Applying a 48VDC contact line to a base wired or jumpered for 5V logic will instantly destroy the onboard input optocouplers.
- ❗ Inspect Compact Base Keying Pins: Take extra care when seating this compact-form-factor card into older standard Ovation I/O bases. Forcing the unit into an mismatched key slot can bend the gold-plated edge connector pins, dropping communication across the entire local bus rail.
- ❗ Ground Loop Isolation on Field Shields: Always ground contact wiring cable shields at the cabinet entry point only. Multi-grounded shields in high-vibration power blocks induce ground currents that override the module’s debounce filters, causing contact chatter alarms.
Intent-Driven FAQ
Q: Can I use the 1C31234G01 with both 24VDC and 48VDC field contact loops?
A: Yes. The card supports a wide input voltage range covering standard 24VDC control circuits up to 48VDC station battery loops. Verify that your field wiring terminal base matches the intended supply line.
Q: Is this compact module hot-swappable in a live Ovation drop?
A: Yes. Ovation backplane architecture permits live module insertion and removal. However, you should isolate external 24V/48V contact field power at the terminal block before pulling the card to avoid arc transients across the backplane edge.
Q: How do I know if an input channel failure is caused by the 1C31234G01 card or the personality module (PMOD)?
A: Move the suspect contact wire to a known working spare channel on the same terminal block. If the fault moves with the wire, the field switch or wiring is open. If the fault stays on the original channel index after swapping, the internal optocoupler on the 1C31234G01 or the PMOD path has failed.
Q: Does replacing this module require updating the Ovation software database?
A: No. As long as you are replacing an existing 1C31234G01 with the same part number, the drop controller automatically downloads the existing point configuration to the replacement card upon backplane initialization.
Q: What condition are these units supplied in, and what is the warranty?
A: We supply fully tested New Surplus and reconditioned OEM inventory. Every 1C31234G01 includes a 1-year functional replacement warranty and complete QA test clearance.
