Emerson 1C31181G01 | Ovation Remote I/O MAU Personality Module
Product Introduction
The Emerson 1C31181G01 is a critical hardware component within the Ovation Remote I/O extension architecture. While the 1C31179G01 EMOD provides packet framing and protocol logic, the 1C31181G01 Personality Module (PMOD) acts as the physical media interface—housing the optical line drivers and transceivers required to transmit high-speed I/O backplane data across multi-mode fiber optic cabling.
By placing optical transmission logic on a dedicated PMOD, Emerson enables modular distance scaling without changing the main electronics card. The G01 group is configured specifically for standard multi-mode fiber runs, allowing plants to place field I/O racks in remote electrical rooms or turbine decks up to 2 kilometers away from the main Ovation CPU cabinet. This approach eliminates the massive copper cabling footprint while isolating sensitive control racks from severe electromagnetic interference (EMI) and ground potential shifts.

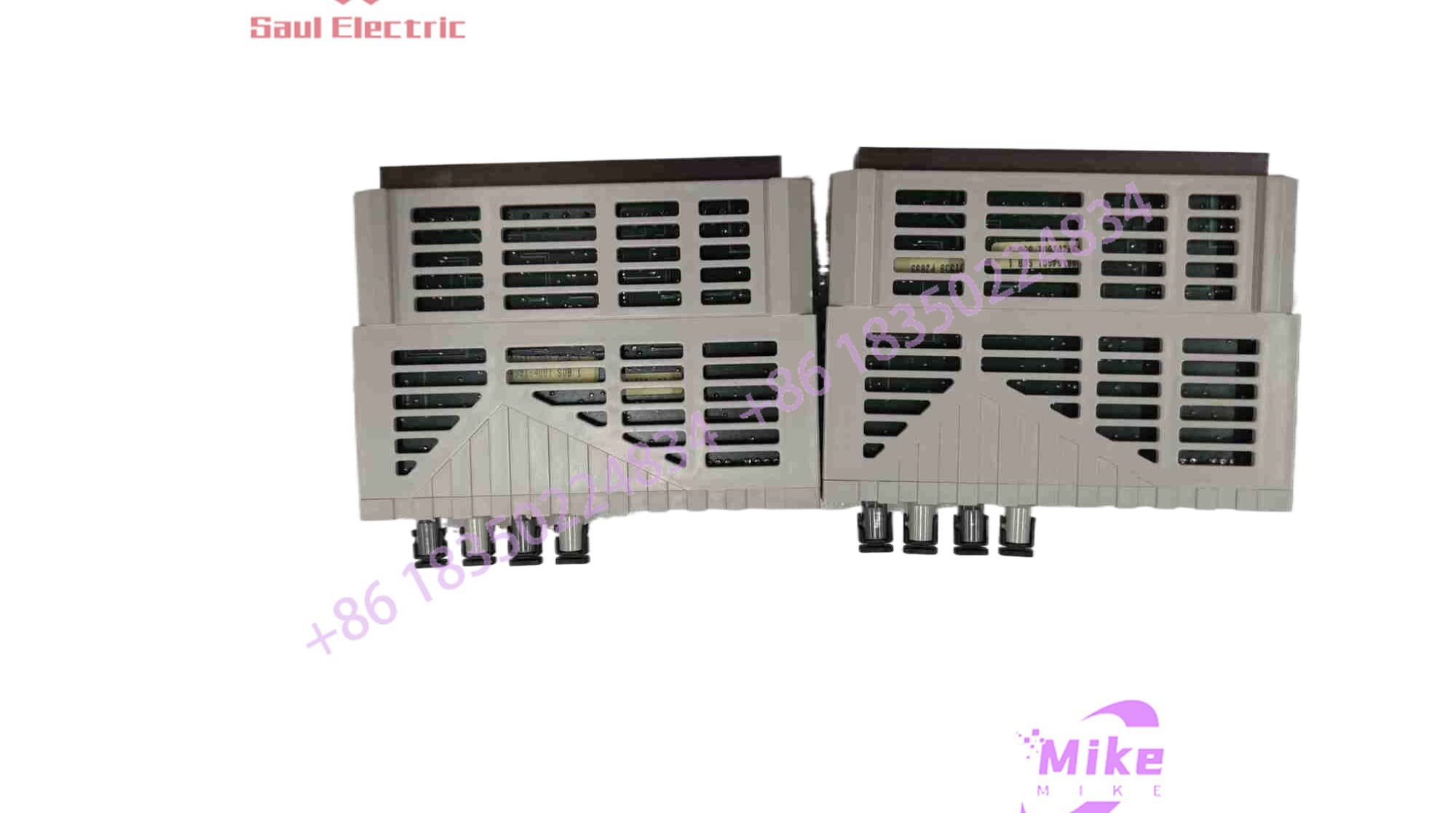

- 1C31181G01
4. Key Technical Specifications
| Parameter | Technical Specification |
| OEM Part Number | 1C31181G01 |
| Manufacturer | Emerson Automation Solutions / Westinghouse |
| Module Classification | Remote I/O MAU Personality Module (PMOD) |
| Media Interface Type | Fiber Optic Transceiver (ST Connectors) |
| Fiber Compatibility | Multi-Mode Optical Fiber (62.5/125 µm or 50/125 µm) |
| Max Transmission Distance | Up to 2.0 km (1.2 miles) |
| Optical Wavelength | 850 nm nominal |
| Mating Electronics Card | 1C31179G01 (MAU EMOD) |
| Mating Mounting Base | 1C31206G01 (MAU Base) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Power Distribution | Powered via 1C31206G01 backplane connection |
| Unit Weight | ~0.10 kg (0.22 lbs) |
Architectural Role: PMOD vs. EMOD vs. Base
In the Ovation remote architecture, three distinct components combine to form a single functioning Master Attachment Unit (MAU):
Key Application Benefits
- Complete Galvanic Isolation: Fiber optic cable creates a non-conductive boundary between local and remote drop enclosures, neutralizing high-voltage surge risks in substation applications.
- Modular Upgrades: If a plant extends a cable run beyond 2.0 km, engineers can swap the 1C31181G01 (G01) for an extended-distance G03/G04 PMOD without replacing the underlying 1C31179G01 EMOD or base wiring.
QA & Bench Testing SOP
Every 1C31181G01 module is validated using a dedicated optical test system prior to stock placement:
- Connector Inspection: Fiber ST ports are examined under a micro-inspection scope to verify zero scratches, dust contamination, or ferrule cracks on the optical transceivers.
- Optical Output Power Verification: An optical power meter measures transmitter power levels (dBm) to ensure the light output falls within factory limits.
- Loopback & Attenuation Test: The PMOD is mounted to an active 1C31206G01 base / 1C31179G01 EMOD assembly. Optical attenuators simulate a full 2 km cable run to verify zero frame errors under degraded light conditions.
- ESD Anti-Static Sealing: Approved modules are packaged in ESD shielding bags with protective dust caps installed over all optical ST ports.
Field Engineer’s Pitfall Guide
[!WARNING]
Check Fiber Distance Ratings Before Installation
The 1C31181G01 is rated for standard-distance multi-mode runs up to 2.0 km. Attempting to drive fiber runs longer than 2.0 km with a G01 module will cause optical signal attenuation, leading to intermittent remote drop communication faults. For longer distances (up to 3.7 km), use the 1C31181G03 or G04 extended-range variants.
- Keep Dust Caps Installed: Never remove the protective rubber caps from the ST fiber ports until you are ready to insert the fiber jumpers. Microscopic dust particles on the lens can cause signal loss or permanent optic damage.
- Clean Fiber Ends: Always clean multi-mode fiber connector ferrules with a lint-free optical cleaning swab and isopropyl alcohol before mating them to the PMOD ports.
- Match Redundant Pair Groups: In dual-redundant MAU configurations, verify that both primary and backup bases use identical PMOD groups (e.g., G01 paired with G01) to prevent gain imbalance during automatic channel failovers.
Frequently Asked Questions
Q: What is the main function of the 1C31181G01 module?
A: It serves as the Master Attachment Unit Personality Module (PMOD) in an Ovation DCS. It provides the optical fiber transceivers that convert electrical backplane signals from the MAU EMOD into light signals for long-distance remote drop communication.
Q: What is the difference between 1C31181G01 and 1C31181G02 / G03?
A: The main differences lie in fiber optic distance ratings and transceiver types. The G01 is configured for standard-distance multi-mode fiber runs (up to 2.0 km), while variants like the G03 are equipped with higher-power transceivers designed for extended-distance runs (up to 3.7 km).
Q: Can I run this module without the 1C31179G01 card?
A: No. The 1C31181G01 is a Personality Module (PMOD) that provides physical optical drivers. It must be paired with the 1C31179G01 Electronics Module (EMOD) and seated on a 1C31206G01 Base to function.
Q: Does this module come with a warranty?
A: Yes, all certified new-surplus and refurbished 1C31181G01 units include a 12-month replacement warranty.
