5X00106G01 Emerson Ovation | In-Stock Fast HART Analog Input Board
Product Introduction
The 5X00106G01 is a High-Performance 8-Channel HART Analog Input (HAI) Electronics Module (E-MOD) designed for the Emerson (Westinghouse) Ovation Distributed Control System (DCS). Unlike standard multiplexed HART cards that cycle sequentially through field instruments, the 5X00106G01 equips each of its 8 channels with a dedicated HART transceiver and isolated UART controller. This architecture enables rapid, parallel bi-directional communication across all connected smart instruments.
Operating in tandem with its corresponding 5X00109G01 Personality Module (P-MOD), the 5X00106G01 digitizes 4–20 mA process variables (such as flow, pressure, level, and temperature) while continuously streaming secondary diagnostic parameters from HART field transmitters into the Ovation database. Replacing an aging or unresponsive 5X00106G01 card restores full HART polling throughput, resolves analog signal drift, and eliminates diagnostic timeouts across critical process loops.

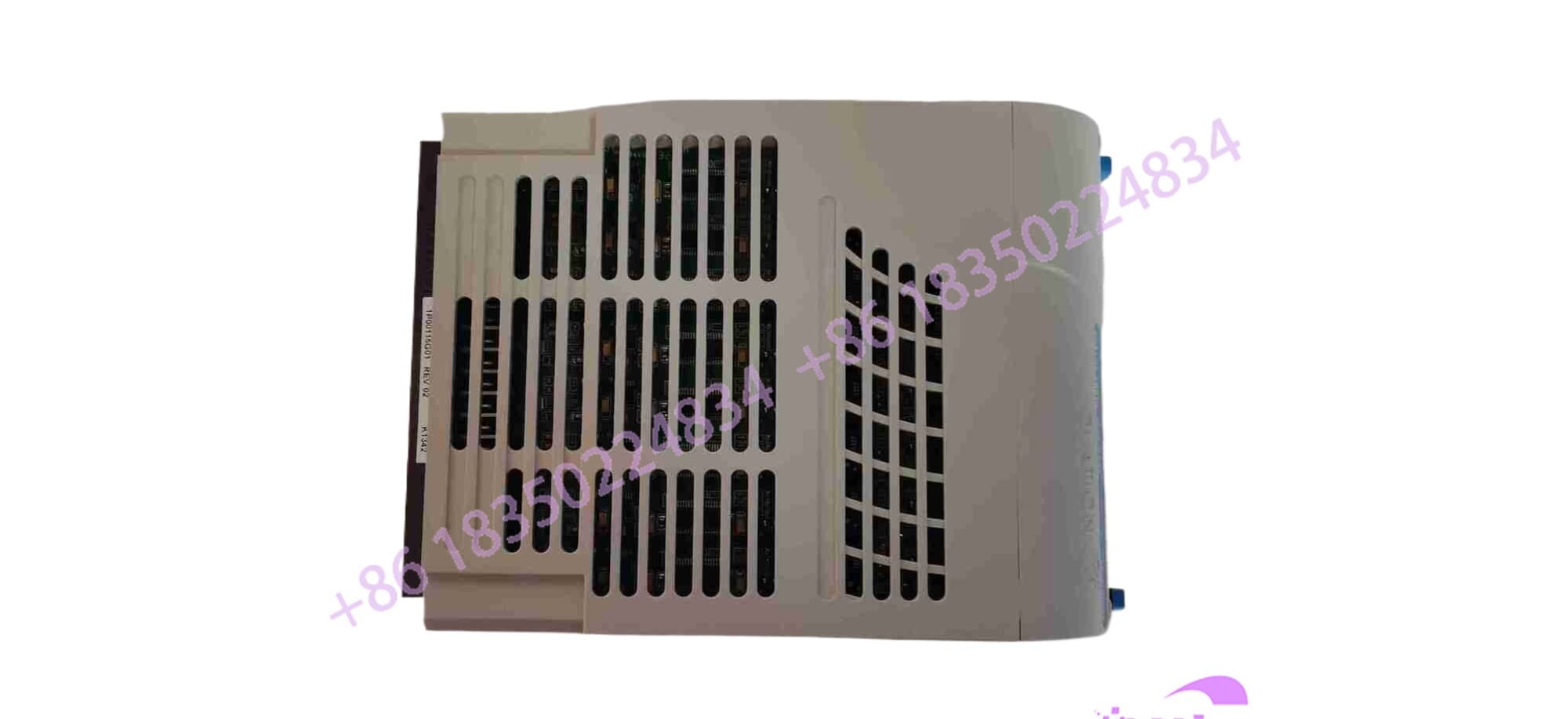

5X00106G01
4. Key Technical Specifications
| Parameter | Technical Specification |
| Manufacturer | Emerson Process Management / Westinghouse |
| Part Code | 5X00106G01 |
| System Compatibility | Emerson Ovation DCS |
| Module Type | Fast / High-Performance HART Analog Input E-MOD |
| Channel Count | 8 Galvanically Isolated Input Channels |
| Signal Input Range | 4 to 20 mA DC Current Loops |
| HART Communication | Dedicated HART transceiver per channel (simultaneous polling) |
| Matching P-MOD | 5X00109G01 Personality Module |
| Dielectric Isolation | 1500 VAC Channel-to-Logic / System Ground |
| Power Requirements | +24 VDC Auxiliary Field Loop Power via base unit |
Application Scenarios & Pain Points
Field Experience: A combined-cycle power plant experienced delayed diagnostic alerts from smart steam pressure transmitters during load changes. Investigations revealed that an older multiplexed HART card was dropping packet frames due to channel queue overflows. Swapping in a bench-tested 5X00106G01 high-performance module restored instant per-channel HART telemetry and eliminated transmitter timeout alarms.
- With Genuine 5X00106G01: Ultra-fast HART polling update rates, dedicated per-channel communication paths, 1500 VAC optical isolation against ground loops, and high-precision A/D conversion.
- Without (Standard or Degraded Input Card): Slow HART cycle times, dropped secondary variable updates, channel cross-talk during field electrical transients, and delayed device health warnings.
- Power Generation Facilities: Reads critical process transmitters (drum level, main steam pressure, feed flow) while continuously harvesting HART instrument diagnostic data.
- Chemical & Refining Infrastructure: Provides high-integrity signal acquisition for SIL-rated loops and complex multivariable HART transmitters.
QA & Live Testing SOP (Trust Signal)
Every 5X00106G01 module pulled from inventory undergoes a multi-point quality assurance procedure prior to shipment:
- Visual & Board-Level Inspection: We examine the multi-layer PCB, surface-mount components, and gold-finger backplane pins under magnification for cracks, cold solder joints, or thermal discoloration.
- 24V Loop Power & Logic Test: The module is inserted into an Ovation rack to verify correct power-up sequence, onboard logic initialization, and diagnostic LED status.
- 8-Channel Current Injection Verification: Precise current signals (4.0 mA, 12.0 mA, and 20.0 mA) are applied to each of the 8 channels using calibrated current sources to verify A/D conversion accuracy.
- Simultaneous HART Protocol Sweep: Active HART field devices are connected to all 8 channels simultaneously to confirm that dedicated transceivers stream digital device data without packet drops or crosstalk.
- Anti-Static & ESD Protective Packaging: Verified units are cleaned with anti-static solution, sealed in ESD protective shielding, and packed into custom foam-lined shipping boxes.
Field Engineer’s Pitfall Guide
- ❗ Match Mating P-MOD Options (5X00109G01): The 5X00106G01 active card requires the 5X00109G01 personality module. Check the channel jumpers on the 5X00109G01 card to correctly configure each channel for field-powered (4-wire) vs. local-powered (2-wire) transmitter loops.
- ❗ Inspect Channel Fuses on P-MOD: If an individual input channel registers 0 mA or “bad status” while the 5X00106G01 card shows normal logic LEDs, inspect the channel-specific fuse on the mating 5X00109G01 personality board for an open circuit.
- ❗ Hot-Swapping Best Practices: Always disengage the module retaining latches fully before pulling the card from the Ovation I/O base unit to prevent momentary short circuits or backplane communication disruptions.
Intent-Driven FAQ
Q: What makes the 5X00106G01 different from standard Ovation HART analog input cards?
A: The 5X00106G01 is a High-Performance / Fast HART module equipped with a dedicated HART transceiver and UART per channel. This allows it to poll all 8 HART field instruments simultaneously rather than multiplexing sequentially.
Q: Which personality module pairs with the 5X00106G01 electronics card?
A: It pairs with the 5X00109G01 personality module, which houses the field wiring terminals, fuses, and transmitter power jumpers.
Q: Can this module power 2-wire 4–20 mA transmitters directly?
A: Yes. When combined with the 5X00109G01 P-MOD, individual channels can be jumpered to supply 24 VDC loop power to 2-wire transmitters or receive inputs from 4-wire self-powered instruments.
Q: How many channels does the 5X00106G01 support?
A: It features 8 galvanically isolated 4–20 mA analog input channels.
Q: What condition are these modules supplied in, and what warranty applies?
A: We provide fully bench-tested New Surplus and reconditioned original Emerson/Westinghouse units. Every 5X00106G01 module includes a 1-year functional replacement warranty and complete QA test clearance.
