Eaton XVS-440-57MPI-1-10 | 5.7″ HMI Touch Panel In-Stock
Dynamic Product Introduction
Few sights frustrate a plant maintenance team like an operator panel display freezing mid-cycle while a high-speed packaging or processing line continues running blind. The Eaton XVS-440-57MPI-1-10 acts as the primary interface window on machine control cabinets, combining a ruggedized resistive touchscreen with integrated multi-protocol serial and fieldbus interfaces. Built specifically to bridge legacy field architectures with modern automation networks, it handles continuous operator inputs without skipping display updates or dropping communication heartbeats with the main PLC.
When an operational screen suffers backlighting failure, touch grid dead zones, or port communication dropouts, sourcing a drop-in Eaton XVS-440-57MPI-1-10 panel becomes an immediate priority to avoid total line downtime. Utilizing a factory-tested replacement unit allows system integrators to restore HMI functionality without needing panel door cutouts or rewiring field connectors. Replacing a degraded unit brings back sharp screen readability, snappy touch response, and reliable bus handshakes across your control rack.

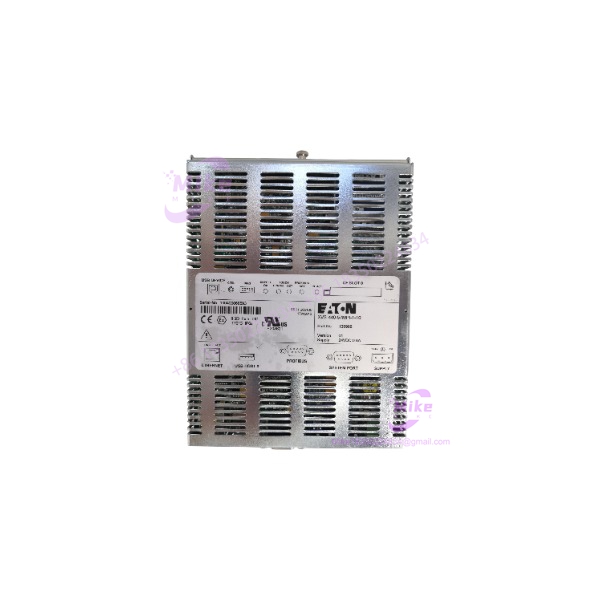

XVS-440-57MPI-1-10
Key Technical Specifications
- Model Designation: XVS-440-57MPI-1-10
- Manufacturer: Eaton / Moeller
- Display Size: 5.7-inch diagonal
- Display Type: Color CSTN/TFT LCD matrix
- Touch Technology: Resistive analog touch screen
- Supply Voltage: 24 VDC (±20% operating window)
- Onboard Interfaces: Integrated MPI/PPI/PROFIBUS-DP, RS-232, USB host/device
- Processor Architecture: 32-bit RISC processing core
- Front Panel Protection: IP65 / NEMA 4X indoor rating
- Operating Temperature Range: 0°C to +50°C (32°F to 122°F)
- Storage Temperature Range: -20°C to +60°C (-4°F to 140°F)
Global Sourcing & Live-Test SOP (Transparency Core)
Sourcing legacy display hardware like the Eaton XVS-440-57MPI-1-10 demands thorough bench testing to ensure screen backlights, touch layers, and communication transceivers function properly under continuous load. Every incoming unit goes through a standardized five-stage diagnostic sequence:
- Inbound Verification: Serial numbers and hardware revisions are verified against Eaton / Moeller factory logs. Technicians visually inspect the front membrane bezel for scratches or delamination and check the 24 VDC power terminals and port connectors for stress.
- Live Simulation: The Eaton XVS-440-57MPI-1-10 is mounted in a diagnostic bench rack powered by an isolated 24 VDC industrial power supply.
- Diagnostics: We run grid calibration routines to test touch sensitivity across all four corners and the center matrix. MPI and RS-232 ports are connected to a test PLC running a continuous data loop back check. The panel then completes a 24-hour thermal soak inside a test chamber to confirm zero display flickering or backlighting dimming.
- Final Prep: Internal runtime data is cleared to factory defaults, terminal screws are checked, screen surfaces are covered with protective film, and the unit is sealed in anti-static ESD packaging for transit.
The Field Engineer’s Pitfall Guide
- ❗ Dip Switch and MPI Baud Rate Mismatches: —though you might expect the unit to auto-negotiate, failing to match the hardware DIP switches or network baud rates on the replacement panel to your PLC network will result in an immediate communication timeout error upon power-up.
- ❗ Over-Tightening Mounting Clamps: Cranking down too hard on the panel’s outer retaining clamps will distort the plastic bezel housing. I’ve seen technicians crack internal display frames and warp the outer resistive touch membrane simply because they used an impact driver instead of hand-tightening cabinet clips.
- ❗ Operating Voltage Polarity Reversal: Connecting 24 VDC power leads backward to the main terminal block can pop the internal surface-mount input fuse. Always verify wire polarity with a digital multimeter before plugging the terminal block into the back of the Eaton XVS-440-57MPI-1-10.
Intent-Driven FAQ
Will swapping out an Eaton XVS-440-57MPI-1-10 require re-uploading the HMI application project?
Yes. The replacement panel arrives with clean system memory. You will need to transfer your compiled HMI project application (visual screens, tag databases, and driver settings) using Galileo or the appropriate engineering software via USB or serial cable.
Can I replace an XVS-440-57MPI-1-10 with a standard Ethernet-only XV panel?
Not directly without hardware modification. This specific model features an integrated MPI/PROFIBUS interface for legacy Siemens and Eaton PLC connections. An Ethernet-only panel would require adding external bus converters or upgrading the PLC CPU interface card.
How do I fix touch input misalignment on the screen?
If tapping a button triggers an adjacent icon, enter the system calibration menu on the Eaton XVS-440-57MPI-1-10 during bootup. Follow the crosshair prompts on the screen to realign the resistive touch grid mapping.
What causes the panel display to remain black while power LEDs light up green?
A green status LED with a dark screen usually points to a failed backlight inverter or CCFL/LED driver board inside the unit. In this state, the logic board is running, but the display matrix lacks backlighting.
What warranty is provided with pre-tested surplus HMI panels?
Every verified Eaton XVS-440-57MPI-1-10 unit comes backed by a comprehensive 1-year replacement warranty. If the panel experiences screen failure, touch grid loss, or communication faults under standard operating conditions within 12 months, it will be replaced directly from available stock.
