B&R 5PP320.1505-39 | Power Panel 300 15-Inch Touch Screen
Product Introduction
The 5PP320.1505-39 belongs to B&R’s versatile Power Panel 300 (PP300) family. Designed to combine human-machine interface (HMI) graphics with embedded real-time controller capabilities, this unit serves as a compact, all-in-one control hub mounted directly on cabinet doors across packaging, plastics, and material handling systems.
Built around a 15.0-inch XGA color TFT screen, the unit uses an analog resistive touch surface compatible with gloved hands in oily or dusty shop-floor environments. Powered by an efficient x86 embedded processor running B&R Automation Runtime or Windows CE, the 5PP320.1505-39 manages fieldbus communications and localized display rendering without needing a bulky external PC chassis. Replacing a failing display or degraded motherboard with a pre-tested, genuine unit restores crystal-clear visualization and touch execution across your production line.

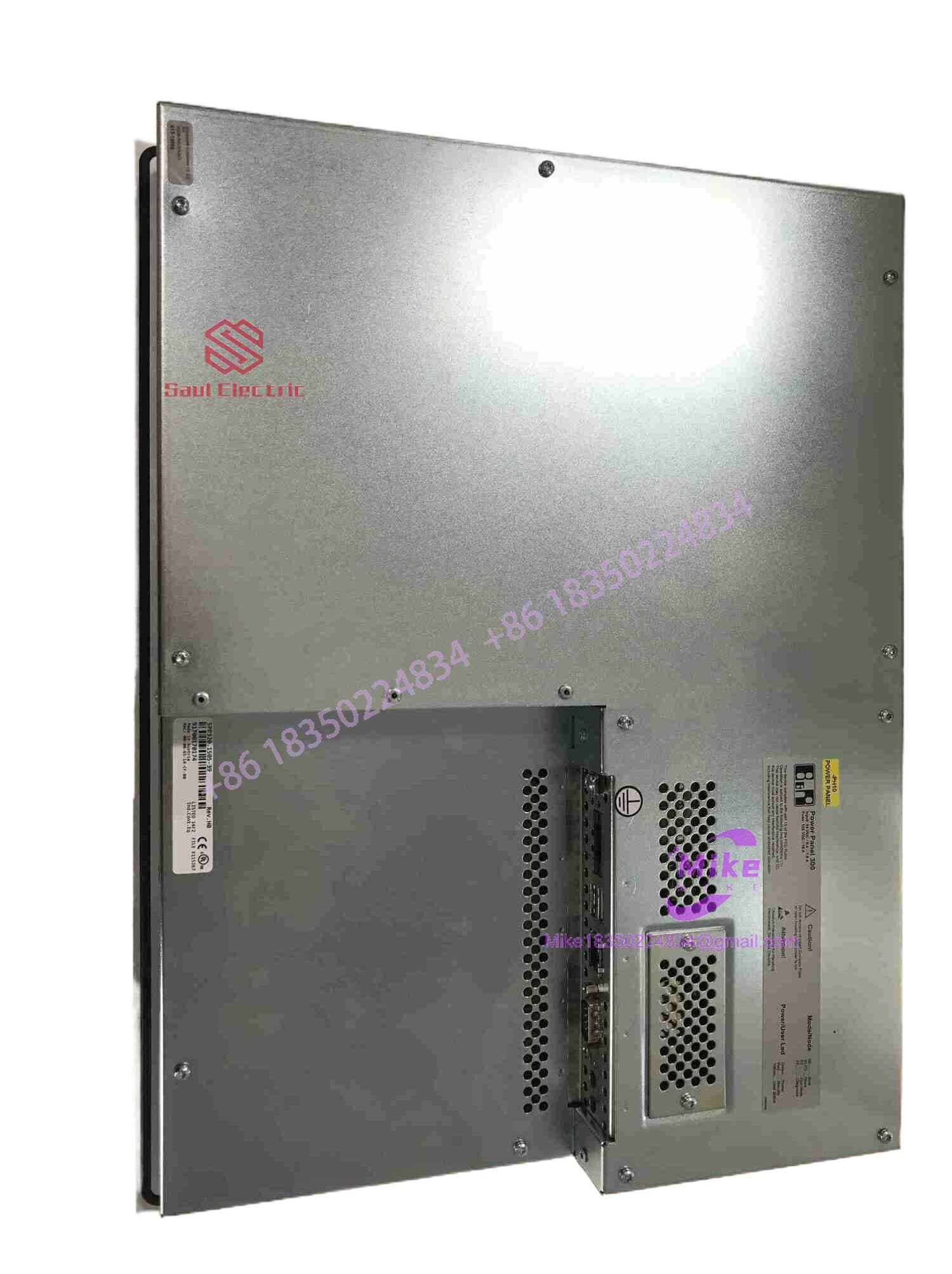

5PP320.1505-39
Key Technical Specifications
| Parameter | Technical Specification |
| Manufacturer | B&R Industrial Automation |
| Part Code | 5PP320.1505-39 / 5PP320-1505-39 |
| Product Series | Power Panel 300 (PP300) / 5PP320 |
| Display Size & Type | 15.0-Inch Diagonal XGA Color TFT LCD |
| Native Resolution | 1024 x 768 Pixels |
| Touchscreen Type | 5-Wire Analog Resistive Touch Overlay |
| System Memory / Storage | CompactFlash (CF) slot for OS and application runtime |
| Supply Voltage | 24 VDC Nominal (±25% SELV isolated input) |
| Interfaces | Ethernet (RJ45), USB 2.0, RS232 Serial (9-pin DSUB) |
| Front Protection Rating | IP65 / NEMA 12 (When correctly panel-mounted) |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
Application Scenarios & Pain Points
Field Experience: A printing facility experienced intermittent screen freezing on their central inline press controller. The original 15-inch display suffered thermal degradation on its internal video board, causing the backlight to flicker and lose touch calibration mid-shift. Swapping in a bench-tested 5PP320.1505-39 with verified power-rail stability restored immediate touch accuracy and eliminated press stoppages.
- With Genuine 5PP320.1505-39: Crisp 1024×768 display clarity, sub-millisecond touch response with gloved hands, stable 24V power regulation, and zero frame dropping during HMI screen changes.
- Without (Low-Tier Aftermarket Glass / Screen): Touch matrix drift, delaminating front layers under shop heat, and corrupted retain variable storage during voltage sags.
- On-Machine Operator Terminals: Serves as the primary control and diagnostic panel mounted directly on machine frames or cabinet enclosures.
- Stand-Alone Process Cells: Handles both PLC logic and graphical HMI duties for small-to-mid-size automation skids.
QA & Live Testing SOP (Trust Signal)
Every 5PP320.1505-39 unit pulled from inventory undergoes a thorough multi-stage bench qualification process prior to shipping:
- Bezel & Display Surface Audit: We inspect the front gasket, aluminum bezel frame, and resistive touch surface to ensure zero deep scratches, punctures, or seal degradation.
- 24V Boot & Backlight Stress Test: Powered via an industrial bench supply, the display undergoes backlight uniformity checks, dead pixel scans, and current draw monitoring across varying brightness levels.
- Touch Grid Calibration: Using native diagnostic tools, a full multi-point grid alignment test is performed to confirm edge-to-edge accuracy and eliminate ghost touch triggers.
- I/O & CompactFlash Interface Check: Ethernet ports, USB slots, RS232 interfaces, and the CF card socket are tested under active data transfer loops.
- Anti-Static & Protective Packaging: Verified units are cleaned with anti-static solution, sealed in ESD protective shielding, and packed into custom foam-lined shipping boxes.
Field Engineer’s Pitfall Guide
- ❗ Match Exact Option Suffix: B&R part numbers in the 5PP320 family use specific suffix codes (like
.1505-39) to denote installed hardware options, memory sizes, or display bezel materials. Always double-check your original label to confirm interface compatibility before mounting. - ❗ Even Torque on Mounting Clamps: When installing the unit into a enclosure panel cutout, tighten the rear mounting clamps in an alternating cross pattern. Over-tightening one side warps the front bezel frame, pinching the resistive touch screen and causing false touch triggers.
- ❗ Transfer System CompactFlash Card Carefully: Always power down the 24V supply before removing or inserting the CompactFlash card. Ensure the card is pushed straight into the socket until it seats completely to avoid “No Boot Device Found” startup errors.
Intent-Driven FAQ
Q: What is the primary function of the B&R 5PP320.1505-39?
A: It is an integrated 15-inch industrial operator panel (HMI) from the Power Panel 300 series that combines a touchscreen display with embedded x86 processor hardware to run machine visualization and control programs.
Q: Can I operate the touch screen while wearing industrial work gloves?
A: Yes. The unit uses an analog resistive touch screen that responds to mechanical pressure, making it fully operational with leather, cloth, or nitrile gloves.
Q: How is the operating system and HMI project stored on this unit?
A: The operating system (such as B&R Automation Runtime or Windows CE) and runtime project files are stored on an industrial CompactFlash (CF) card inserted into the rear drive slot.
Q: What power input is required?
A: It operates on a nominal 24 VDC (±25%) power feed connected via a standard B&R 3-pin terminal plug.
Q: What condition are these units supplied in, and what warranty applies?
A: We supply fully bench-tested New Surplus and reconditioned original B&R units. Every 5PP320.1505-39 panel includes a 1-year functional replacement warranty and full QA bench clearance.
