B&R 5AP1120.0702-000 | Automation Panel 1000 7-Inch Display

Description

B&R 5AP1120.0702-000 | Automation Panel 1000 7-Inch Display

Product Introduction

When high-speed packaging machinery or compact robotic cells require clean, high-density visualization without taking up valuable enclosure space, the 5AP1120.0702-000 provides the ideal window into your machine runtime. Belonging to B&R’s modern Automation Panel 1000 family, this 7.0-inch widescreen HMI combines sharp WVGA display clarity with a sleek, scratch-resistant projected capacitive (PCAP) touch glass front.

Engineered to pair effortlessly with B&R Automation PCs (such as the APC2100, APC2200, or APC3100) or Panel PCs, the unit connects using B&R’s Smart Display Link interface technology. This allows video, touch data, matrix signals, and power to travel across a single long-distance cable run. Featuring an IP65-rated front face that resists industrial fluids, oils, and chemical sprays, it provides smooth swipe-and-pinch gesture control—provided panel mounting brackets are torqued down evenly during cabinet installation.

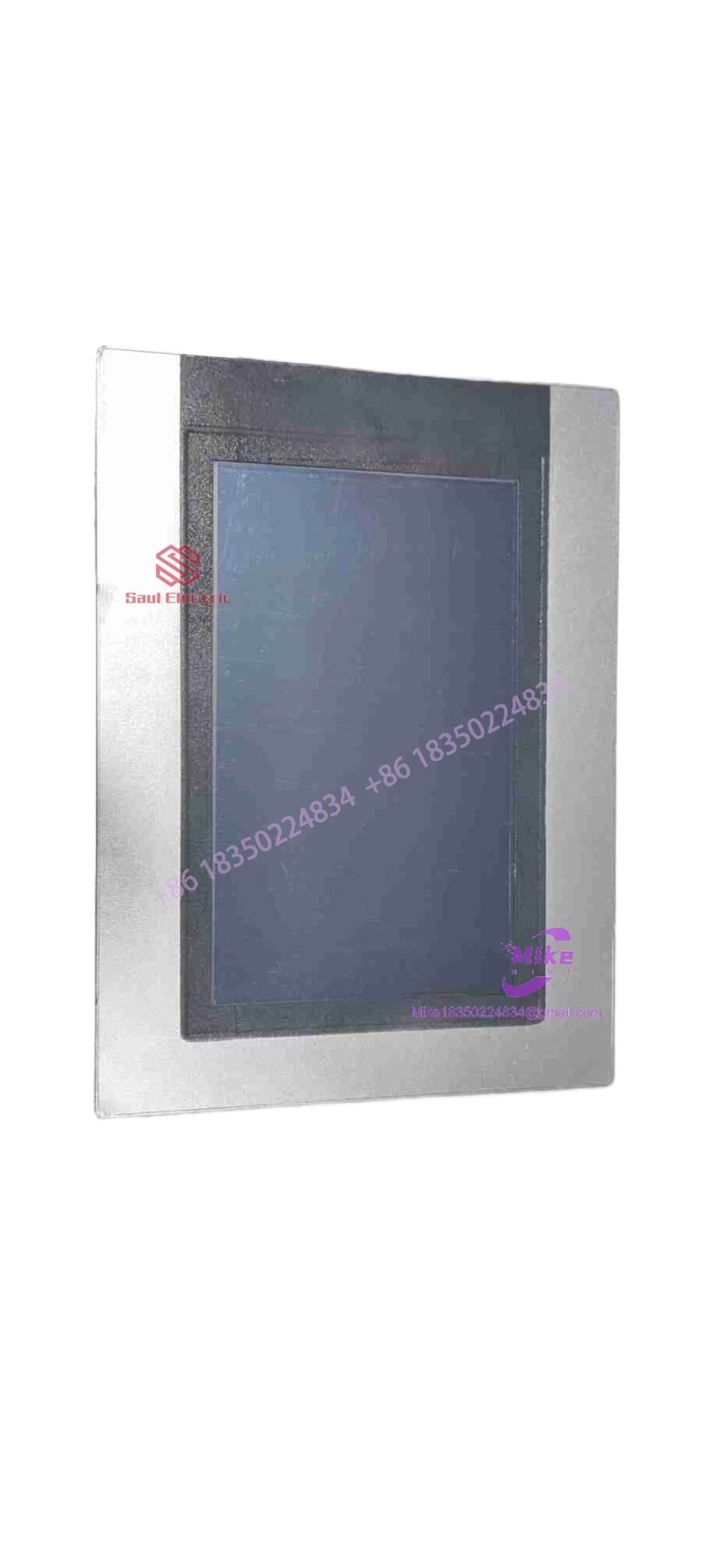

5AP1120.0702-000

Key Technical Specifications

Application Scenarios & Pain Points

Field Experience: A high-speed labeling machine OEM in Wisconsin was facing constant HMI screen scratches and sluggish touch response on older resistive units due to operators repeatedly pressing the screen with tool tips. Upgrading the front interface to the glass-fronted 5AP1120.0702-000 completely eliminated screen wear, improved multi-touch responsiveness for pan/zoom recipe diagnostics, and cut cabinet cutout requirements nearly in half.

• With Genuine 5AP1120.0702-000: Scratch-proof glass face, smooth multi-touch gesture support, fast single-cable SDL link configuration, and high contrast visibility under bright shop lighting.
• Without (Aftermarket / Worn Screen): Phantom touch inputs caused by static buildup or moisture film, delaminated touch glass, and signal loss across display cable runs.
• Compact Machine Control Desks: Ideal for small footprint machinery where panel space is at a premium but full 16:9 widescreen HMI layouts are needed.
• High-Hygiene Washdown Areas: Flat, edge-to-edge glass front prevents dirt accumulation and allows quick cleaning with standard industrial washdown solutions.

QA & Live Testing SOP (Trust Signal)

Every 5AP1120.0702-000 unit leaving our warehouse undergoes rigorous bench testing to ensure plug-and-play field reliability:

1. Visual & Glass Surface Inspection: We examine the edge-to-edge glass face, perimeter gasket seal, and aluminum rear housing under magnification to verify zero chips, scratches, or seal defects.
2. 24V Bootup & Display Calibration: Driven via a test bench power supply, the TFT panel is checked for uniform LED backlighting, pixel integrity, color accuracy, and backlight dimming response.
3. Multi-Touch & Gesture Matrix Test: Running native B&R diagnostic images, we test the PCAP touch matrix across the entire screen area to verify zero blind spots and accurate multi-touch input registration.
4. SDL Link Data Sweep: High-rate display video and touch data packets are swept across the rear receiver link interface to verify clean signal transmission without frame dropping.
5. Anti-Static & ESD Packaging: Verified units are cleaned with anti-static solution, sealed in ESD protective shielding, and packed into custom foam-padded containers.

Field Engineer’s Pitfall Guide

• ❗ Use PCAP-Compatible Industrial Gloves: Because the 5AP1120.0702-000 uses projected capacitive (PCAP) touch technology rather than pressure-based resistive sensing, operators must wear conductive PCAP-compatible gloves. Heavy thick leather gloves will not trigger the capacitive field.
• ❗ Avoid Over-Tightening Panel Clamps: Tighten rear cabinet retaining clamps evenly in a cross pattern according to B&R torque specifications. Over-torquing one corner can cause mechanical stress on the glass substrate, leading to touch sensitivity anomalies along the screen edges.
• ❗ Match Smart Display Link (SDL) Cable Generation: Ensure your host IPC transmitter and cable match the panel’s rear receiver card version (SDL vs SDL3/SDL4). Mismatched receiver standards can prevent the display from initializing or cause video handshake timeouts at startup.

Intent-Driven FAQ

Q: Does the 5AP1120.0702-000 support multi-touch gestures like pinch-to-zoom?

A: Yes. The projected capacitive (PCAP) glass touch screen natively supports multi-touch inputs, enabling modern gesture controls inside B&R Automation Studio HMI applications.

Q: Can I mount this 7-inch display directly on a swing-arm mounting system?

A: Yes. The AP1000 series supports standard panel cutout mounting as well as integration into compatible B&R swing-arm housings using standard VESA/B&R mounting adapters.

Q: What is the main benefit of Smart Display Link (SDL) on this unit?

A: SDL consolidates display data, touch feedback, backlight control, and power into a single slim cable, allowing you to place the HMI screen up to 100 meters away from the main Automation PC without signal degradation.

Q: How do I clean the front glass screen safely in an industrial environment?

A: The flat glass front can be cleaned using standard isopropyl alcohol solutions, glass cleaners, or mild detergent wipes. Avoid abrasive scrubbers that could compromise the anti-glare coating.

Q: What condition are these AP1000 units supplied in, and what warranty applies?

A: We provide fully bench-tested New Surplus and reconditioned original B&R units. Every 5AP1120.0702-000 includes a 1-year functional replacement warranty and full QA test clearance.
