Bently Nevada 3500/15-05-05-00 | Factory Sealed In-Stock Availability
Dynamic Product Introduction
Securing 100% uptime for critical rotating machinery protection racks requires robust power redundancy to prevent system-wide monitoring dropouts during grid fluctuations or single-supply faults. The Bently Nevada 3500/15-05-05-00 assembly fulfills this requirement by supplying a complete dual-redundant universal AC power configuration, featuring both upper and lower slot modules working in tandem with automatic load sharing.
Outperforming single-supply setups through instant, glitch-free failover capability, this redundant architecture ensures uninterrupted sensor excitation and alarm tracking. Reliability engineers rely on its wide-range AC compatibility and hot-swappable design to maintain continuous asset protection on high-stakes industrial turbomachinery.

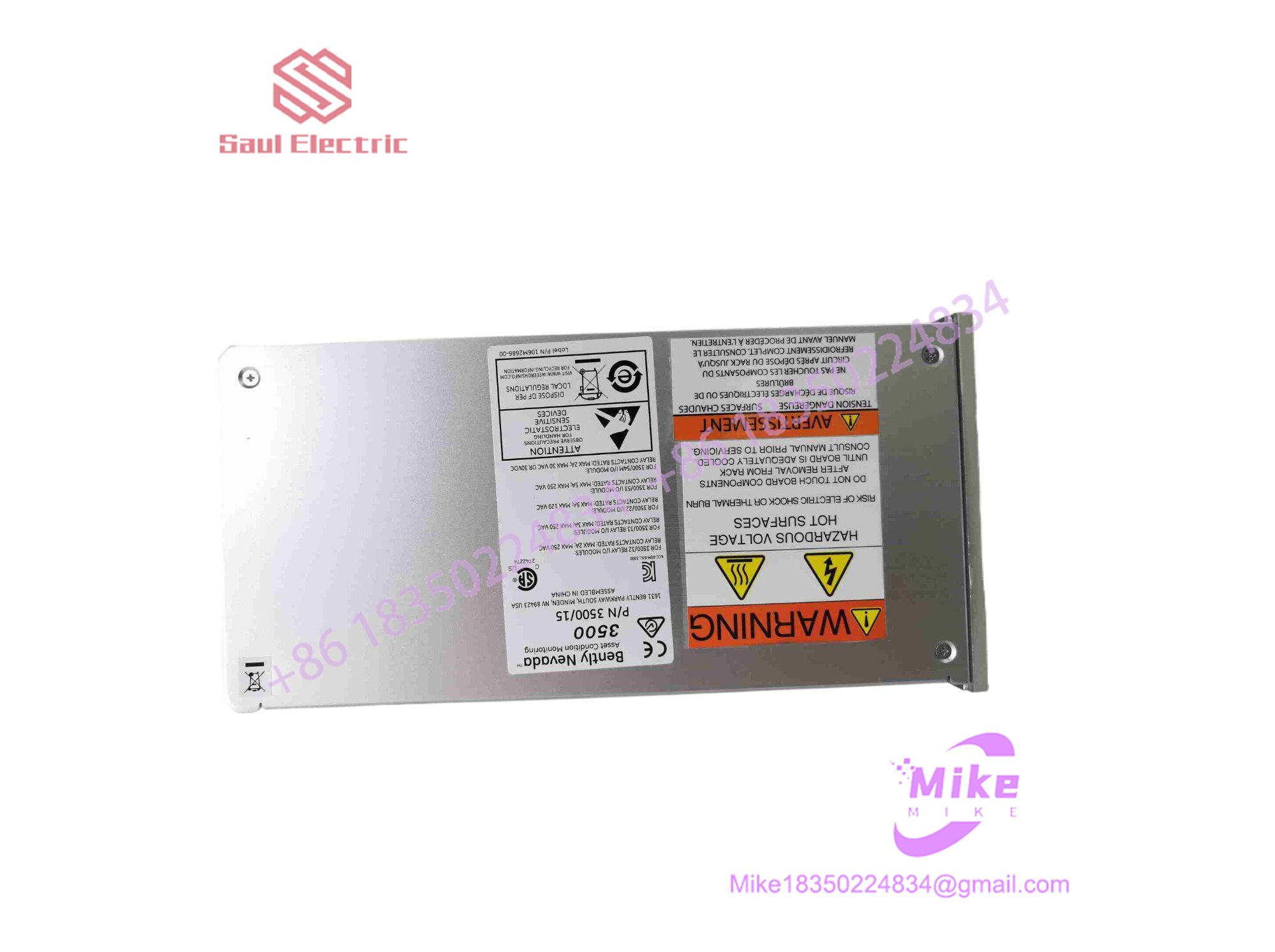

350015-05-05-00
Key Technical Specifications
| Core Parameter | Technical Specification |
|---|---|
| Product Identifier | 3500/15-05-05-00 (Redundant Universal AC Power Supply Assembly) |
| Top Slot Supply (-05) | Universal AC Voltage Module (85 to 264 VAC rms, 47 to 63 Hz) |
| Bottom Slot Supply (-05) | Universal AC Voltage Module (85 to 264 VAC rms, 47 to 63 Hz) |
| Agency Approval Option (-00) | Standard factory baseline approvals (Non-hazardous / General location) |
| Output Power Capacity | 175 watts maximum per supply slot |
| Regulated DC Rails | +5.1 VDC, +12 VDC, -12 VDC, and -24 VDC backplane power distribution |
| Redundancy & Failover | Automatic load sharing with seamless hot-swap backup support |
| Operating Temperature | −30∘C to +65∘C (−22∘F to +149∘F) |
Global Sourcing & Live-Test SOP (Transparency Core)
Deploying replacement dual-redundant power supplies into live machinery protection racks requires rigorous multi-point testing protocols:
- Inbound Verification: Incoming modules (front-slot units and rear PIMs) undergo micro-inspection of high-voltage isolation barriers, fuse integrity, and terminal block screw torque.
- Live Simulation: The dual-supply set is installed into a fully populated 3500 test backplane connected to dual programmable AC line simulators.
- Diagnostics: Technicians execute full-load thermal burn-in cycling over 24 hours, verifying clean DC rail voltage regulation, ripple suppression limits, and automatic load-transfer behavior during simulated primary power loss.
- Final Prep: Terminals are fitted with protective safety caps, and the units are hermetically sealed in heavy-duty anti-static barrier bags.
The Field Engineer’s Pitfall Guide
❗ Partial Redundancy Blindness: Assuming a rack with only one power module installed offers backup protection; running a critical system on a single supply leaves the plant vulnerable to total monitoring blackout if a grid transient hits. (I’ve seen safety audits flag critical compressor racks because a failed secondary supply was never replaced.)
❗ Hot-Insertion Alignment Force: Forgetting to properly align the module card with the backplane guide rails before pushing it home can bend sensitive multi-pin connectors, causing intermittent power drops across adjacent monitor cards.
❗ Ignoring Rear PIM Compatibility: Attempting to plug universal AC front modules into legacy high-voltage or low-voltage AC rear Power Input Modules (PIMs) will cause severe electrical mismatch and hardware faults.
Intent-Driven FAQ
What configuration does the “-05-05-00” suffix combination represent? The first “-05” indicates a Universal AC power supply in the top slot, the second “-05” designates a Universal AC power supply in the bottom slot, and “-00” specifies standard baseline agency approvals.
Quick Time Engineering Inc
Quick Time Engineering Inc
3500/15-00-05-00 | Bently Nevada Power Supply
“ Email a Friend. Please complete the fields below to send your friend a link to this product. Part Number: 3500/15-00-05-00. Model: 3500/15 Power Supply Module….”
Can I hot-swap one of the power supplies in this redundant assembly while the machine is running? Yes, because the lower and upper slots share the electrical load in a redundant setup, you can safely pull and replace a failed supply module without interrupting rack monitoring or risking a false machine trip.
Are these redundant power supply assemblies supplied factory-sealed or as surplus stock? Inventory batches include a mix of verified factory-sealed surplus (unused) and fully bench-tested secondary stock, with complete electrical test history documented on every order.
Does this dual power supply set include the rear input modules (PIMs)? Yes, complete redundancy sets are configured to include both front-slot power units and their matching rear backplane power input interfaces to ensure end-to-end compatibility.
