Bently Nevada 330850-90-05 | 3300 XL 25mm Proximitor Sensor Core Category
Dynamic Product Introduction
Tracking massive thermal expansion, axial shift, or rod position on large steam turbines and industrial compressors requires an extended linear measurement range that standard 8mm or 11mm probes cannot achieve. The Bently Nevada 330850-90-05 Proximitor sensor resolves this constraint by executing specialized signal conditioning tailored exclusively for the 3300 XL 25mm transducer platform over a long 9.0-meter system run.
Outperforming smaller sensor topologies through an expansive linear tracking span and ruggedized surface-mount architecture, this processor ensures absolute signal stability across severe thermal gradients. Reliability engineers depend on its precision scaling to monitor critical differential expansion and prevent destructive casing-to-rotor rubs in high-output power generation assets.

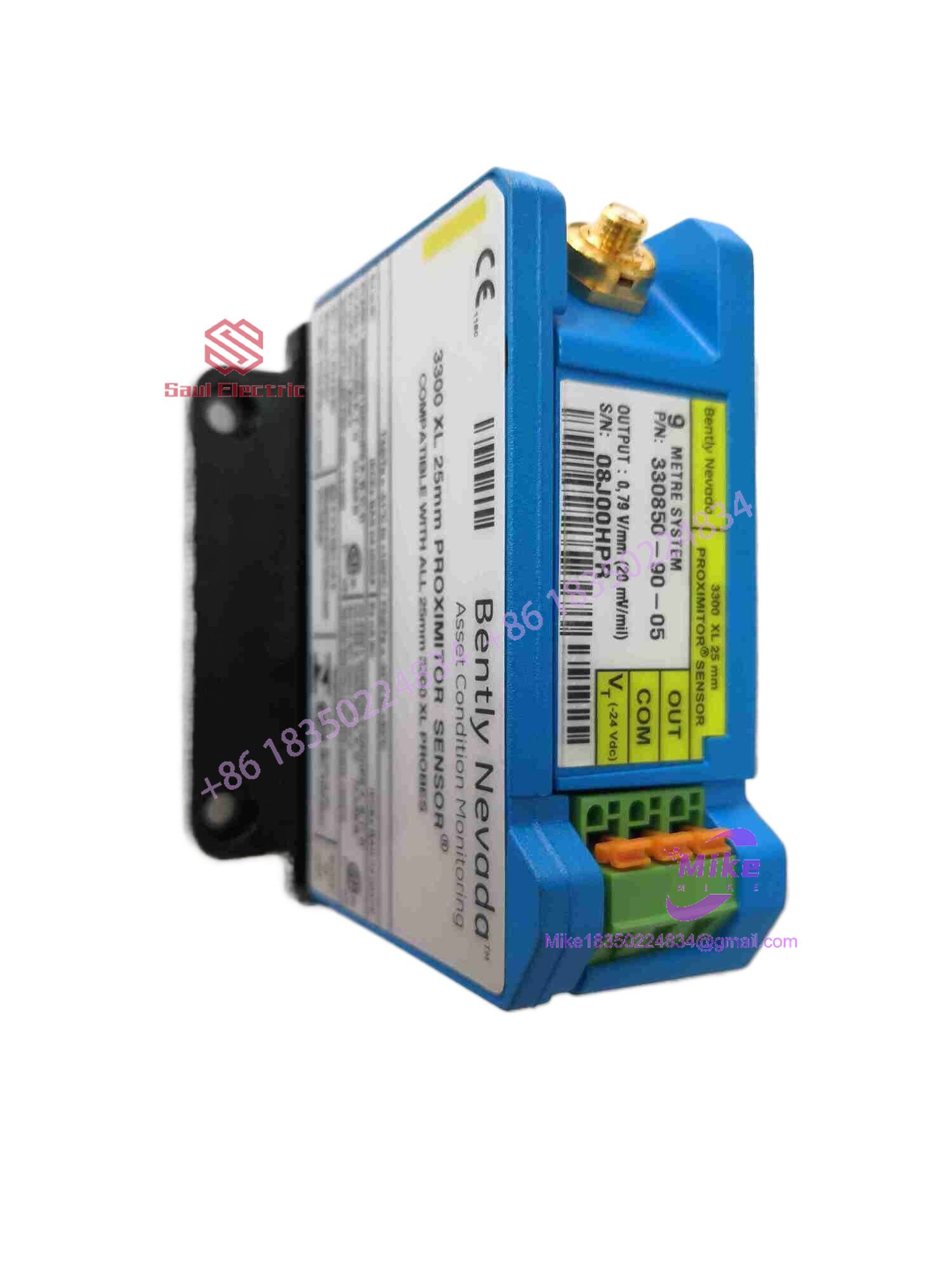

330850-90-05
Key Technical Specifications
| Core Parameter | Technical Specification |
| Product Identifier | 330850-90-05 (3300 XL 25mm Proximitor Sensor) |
| System Length Calibration (-90) | Optimized for 9.0-meter total system length, panel mount configuration |
| Sensitivity (Scale Factor) | 0.787 V/mm (20 mV/mil) nominal |
| Linear Measurement Range | 25 mm (500 mils) linear range |
| Frequency Response | 0 to 4.5 kHz (-3 dB) |
| Supply Voltage | -24 VDC operating voltage (-17 to -26 VDC range across power common) |
| Mounting Architecture | Traditional 4-hole panel mount base (isolated footprint) |
| Agency Approvals (-05) | Multiple hazardous area compliances (CSA, ATEX, IECEx) |
| Operating Temperature | -51^\circC to +100^\circC (-60^\circF to +212^\circF) |
Global Sourcing & Live-Test SOP (Transparency Core)
Deploying replacement 25mm Proximitor sensors into critical turbine expansion loops requires rigorous verification protocols to ensure complete signal linearity:
- Inbound Verification: Incoming units undergo microscopic inspection of terminal block integrity, SpringLoc or screw clamp tension, and laser-etched serial traceability data.
- Live Simulation: Sensors are paired with certified 25mm probes and matching extension cables mounted on a specialized long-stroke micrometer target calibration rig.
- Diagnostics: Technicians execute multi-point gap sweeps across the full 25mm range against a standardized target, verifying scale factor linearity (20 mV/mil), center bias voltage, and frequency response over a 24-hour thermal burn-in cycle.
- Final Prep: Terminal ports are protected with dust covers, and the module is hermetically sealed in anti-static ESD shielding bags.
The Field Engineer’s Pitfall Guide
❗ Transducer Intermixing Mismatches: Pairing a 25mm Proximitor sensor with an 8mm or 11mm probe assembly will instantly destroy loop linearity and throw severe calibration errors because the coil geometries and scale factors (20 mV/mil vs 200 mV/mil) are entirely different.
❗ Total System Length Violations: Mixing a 9.0-meter calibrated Proximitor unit (-90 suffix) with a mismatched probe and extension cable length combination alters loop capacitance, shifting output bias voltages out of specification.
❗ Target Area and Clearance Restrictions: Failing to account for the massive electromagnetic field footprint of a 25mm probe—ensuring adequate side clearance from surrounding metal housing walls—will cause severe edge-effect distortion on expansion readings.
Intent-Driven FAQ
Can I use this 25mm Proximitor sensor with a standard 8mm or 11mm probe?
No, 25mm transducer systems require matched 25mm system components (probe, extension cable, and Proximitor sensor) due to specialized electrical scaling (20 mV/mil) and massive linear range requirements.
What do the specific option digits (-90-05) mean in this part number?
The “-90” designates a 9.0-meter total system length configuration with a panel mount base, while “-05” indicates multi-agency hazardous area approvals (CSA, ATEX, IECEx).
Are these 25mm Proximitor units supplied factory-sealed or as surplus stock?
Inventory batches feature a mix of verified factory-sealed surplus (unused) and fully bench-tested secondary stock, with complete calibration provenance documented on every order.
What is the primary application for the Bently Nevada 25mm transducer system?
It is primarily engineered for measuring large-range mechanical movements such as steam turbine rotor axial position (thrust position) and casing thermal expansion.
