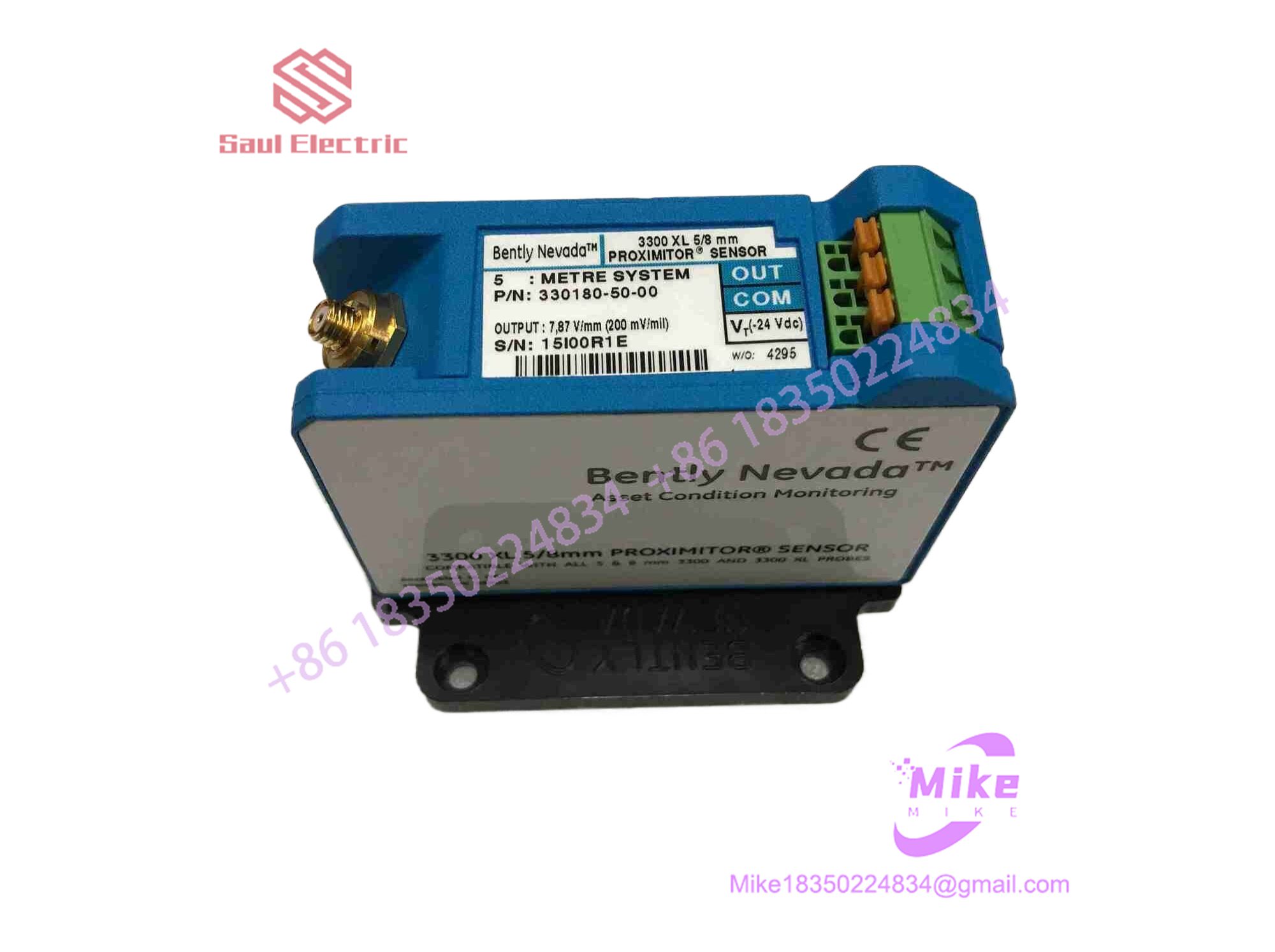

Bently Nevada 330180-50-00 | 3300 XL
Dynamic Product Introduction
Translating raw eddy-current oscillations into rock-solid, drift-free voltage signals requires rigorous electrical stability inside high-vibration field junction boxes. The Bently Nevada 330180-50-00 Proximitor sensor fulfills this requirement by executing precise signal conditioning tuned specifically for 5.0-meter total system configurations.
Surpassing older legacy signal processors through advanced surface-mount circuitry and enhanced RFI/EMI noise immunity, this unit delivers absolute signal fidelity without calibration drift across extreme thermal shifts. Reliability engineers depend on its compact footprint and robust SpringLoc terminal strips to maintain uninterrupted shaft position and vibration telemetry in continuous process environments.
330180-50-00
Key Technical Specifications
| Core Parameter | Technical Specification |
| Product Identifier | 330180-50-00 (3300 XL Proximitor Sensor) |
| System Length Calibration (-50) | Optimized for 5.0-meter total system length (e.g., 1m probe + 4.5m extension cable) |
| Sensitivity | 7.87 V/mm (200 mV/mil) nominal |
| Frequency Response | 0 to 10 kHz (\pm 3 dB) |
| Supply Voltage | -17 to -26 VDC power input across power common |
| Linear Range | 2.0 mm (80 mils) spanning from 0.5 to 2.5 mm (20 to 100 mils) |
| Mounting Options (-00) | DIN-rail mounting base (standard panel mount configuration) |
| Operating Temperature | -51^\circC to +100^\circC (-60^\circF to +212^\circF) |
| Enclosure Protection | IP00 terminal block / IP54 when housed in standard weather-proof casing |
Global Sourcing & Live-Test SOP (Transparency Core)
Deploying replacement Proximitor sensors into critical safety loops demands rigorous verification to ensure zero offset voltage drift or linearity failure:
- Inbound Verification: Incoming units undergo microscopic inspection of terminal block integrity, SpringLoc mechanism tension, and laser-etched serial traceability markers.
- Live Simulation: Sensors are paired with certified 1.0-meter probes and 4.5-meter extension cables mounted on a precision micrometer target calibration rig.
- Diagnostics: Technicians execute multi-point gap sweeps against a standardized 4140 steel target, verifying that output scale factor (200 mV/mil), bias voltage (-10 VDC nominal center), and frequency response meet strict API 670 tolerances over a 24-hour thermal burn-in cycle.
- Final Prep: Terminal ports are protected with dust covers, and the module is hermetically sealed in anti-static ESD shielding bags.
The Field Engineer’s Pitfall Guide
❗ Total System Length Mismatches: Pairing a 5.0-meter calibrated Proximitor (-50 suffix) with a 9.0-meter total cable setup will completely shift output bias voltages and ruin calibration linearity. (I’ve seen maintenance teams trigger false machinery trips because a technician grabbed a 5m Proximitor box to replace a failed 9m loop unit during a night shift outage.)
❗ Power Supply Voltage Sag: Supplying less than -17.5 VDC at the Proximitor input terminals under heavy system load can clip the negative signal peak, flattening high-amplitude vibration waveforms on the monitor screen.
❗ SpringLoc Terminal Oxidation: Failing to strip wire insulation to the exact recommended length or trapping insulation under the SpringLoc clamp can cause intermittent open-circuit faults under plant vibration.
Intent-Driven FAQ
Can I use this 5.0-meter calibrated Proximitor with an 8.0-meter extension cable?
No, a -50 Proximitor requires a 5.0-meter total electrical system configuration (typically a 1.0m probe paired with a 4.5m extension cable); an 8.0m cable requires a 9.0-meter calibrated Proximitor unit.
What do the specific option digits (-50-00) mean in this part number?
They designate the total system electrical length calibration (5.0 meters) and the standard DIN-rail mounting base option without specialized hazardous area agency tags in the suffix.
Are these Proximitor units supplied factory-sealed or as surplus stock?
Inventory batches feature a mix of verified factory-sealed surplus (unused) and fully bench-tested secondary stock, with complete test history and calibration logs documented on every order.
Does replacing a Proximitor sensor require recalibrating the main monitor channel?
Because 3300 XL components are individually interchangeable and factory-calibrated, swapping a matching Proximitor unit preserves system accuracy without requiring a full bench recalibration of the monitor rack.
