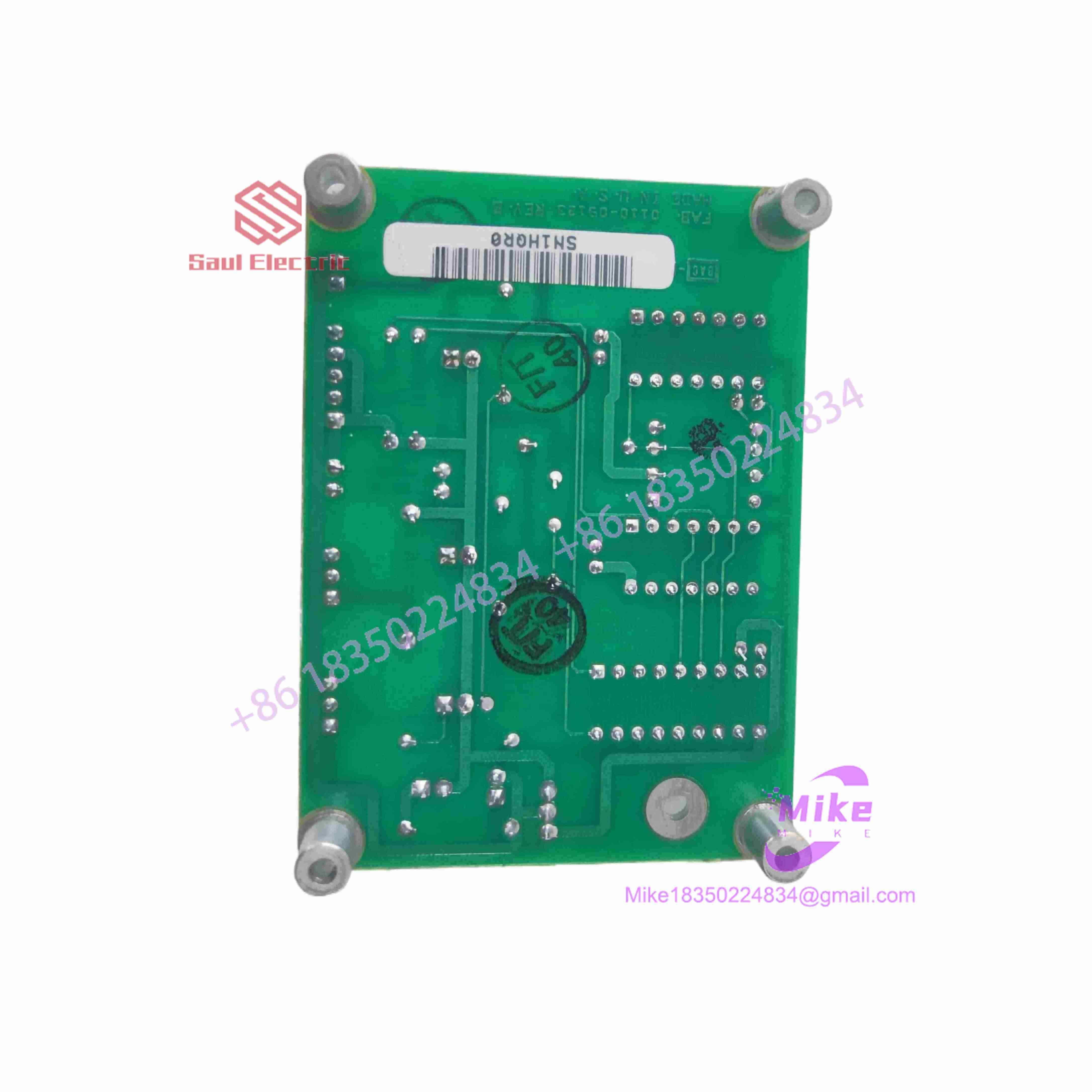

AMAT 0100-09123 | Precision 5000 Wafer Sensor PCB

Description

AMAT 0100-09123 | Precision 5000 Wafer Sensor PCB

Dynamic Product Introduction

Wafer handling errors, transfer arm timeouts, and “wafer-lost-in-chamber” alarms on legacy Applied Materials Precision 5000 systems typically originate from degrading optical sensor boards rather than mechanical transport failures. When an older mainframe starts throwing false placement errors or failing to confirm substrate handoffs, adjusting robot software profiles rarely resolves underlying component-level signal drift. Deploying the Applied Materials 0100-09123 resolves this reliability bottleneck directly, swapping in an OEM-spec sensor board engineered to restore exact wafer detection timing.

In critical fab maintenance scenarios, installing this exact replacement circuit card re-establishes normal robotic sequencing without forcing an expensive, full-scale transport electronics overhaul. (Though verifying optical emitter/detector alignment, threshold potentiometer settings, and harness seating prior to vacuum pump-down remains essential.) It handles demanding continuous-duty cleanroom cycles cleanly, keeping legacy wafer processing assets running safely.

0100-09123

Key Technical Specifications

Global Sourcing & Live-Test SOP (Transparency Core)

Procuring critical semiconductor sensor hardware demands rigorous static protection and bench validation to guarantee absolute tool reliability upon installation.

• Inbound Verification: Incoming sensor boards undergo comprehensive serial tracking, OEM watermark verification, and anti-counterfeit batch inspections against historical production ledgers.
• Live Simulation: Qualified cards are mounted onto a designated test fixture paired with optical simulation targets to evaluate beam trigger response, threshold switching, and signal stability.
• Diagnostics: Technicians execute power-rail ripple checks, component thermal soak evaluations, and continuous trigger stress sweeps to isolate latent failure risks.
• Final Prep: Connector edge fingers are chemically cleaned to remove micro-oxidation, and the module is sealed inside heavy-duty multi-layer anti-static barrier packaging.

The Field Engineer’s Pitfall Guide

❗ Optical Threshold Misadjustment: Installing a replacement board without verifying or adjusting the sensitivity threshold relative to your specific wafer type (e.g., bare silicon vs. coated substrates) can result in missed detections. Always check trigger response during calibration.

❗ Transducer Misalignment: Forcing or bumping associated infrared/optical emitter-receiver blocks during board replacement will throw off alignment coordinates. Always verify clear line-of-sight paths across the wafer path.

❗ Hot-Swapping Under Power: Sliding a sensor board into an energized rack or mainframe interface risks pin arcing and logic corruption. Always drop system power completely and verify zero voltage state prior to insertion.

Intent-Driven FAQ

Will this wafer sensor board integrate directly into my existing Applied Materials Precision 5000 chassis?

Yes, the 0100-09123 is designed to match original equipment mounting dimensions, connector layouts, and electrical pinouts for seamless drop-in replacement.

Are these legacy sensor circuit cards factory sealed or certified surplus stock?

We maintain strict inventories of both factory-sealed surplus hardware and fully recertified, bench-tested units. Each listing explicitly details the precise condition tier to match your fab standards.

Do I need to calibrate signal thresholds after installing a replacement board?

Yes, performing a routine sensor calibration check through the system software interface during initial startup ensures accurate wafer edge detection across varying process films.

What kind of warranty coverage is included with this replacement part?

Every unit is backed by our comprehensive operational warranty, covering electrical component health, optical signal conditioning stability, and functional performance from day one.
